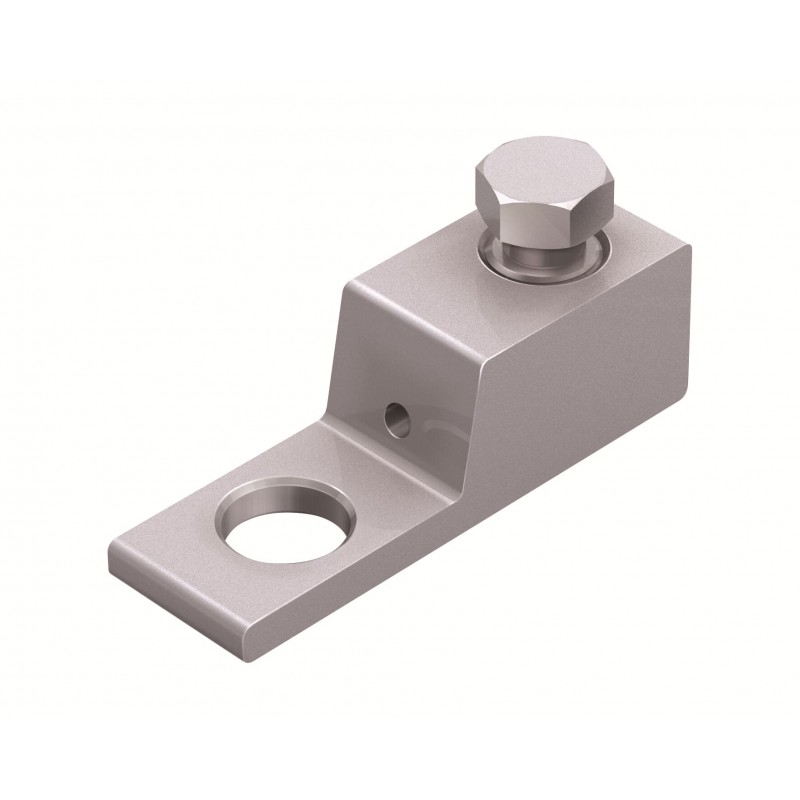

SBABB1AE16AA 7TCA315045R0002 THOMAS AND BETTS MEDIUM VOLTAGE EARTH TERMINAL 10-50MM
SBABB1AE16AA
7TCA315045R0002
THOMAS AND BETTS
30
MEDIUM VOLTAGE EARTH TERMINAL 10-50MM
MECH LUG/WIRE/10-50MM2
Installation, isolation and connection material > Screw cable lug
Home > THOMAS AND BETTS
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲| Ordering | |
|---|---|
| EAN | 5415022541229 |
| Minimum Order Quantity | 30 piece |
| Country or Territory of Origin | China |
| Selling Unit of Measure | each |
| Dimensions | |
| Product Net Width | 0.62 in |
| 16 mm | |
| Product Net Height | 0.94 in |
| 24 mm | |
| Product Net Depth / Length | 2 in |
| 51.5 mm | |
| Product Net Weight | .1323 lb |
| 60 g | |
| Container Information | |
| Package Level 1 Units | 30 piece |
| Package Level 1 Width | 3.94 in |
| 100 mm | |
| Package Level 1 Height | 5.91 in |
| 150 mm | |
| Package Level 1 Depth / Length | 4.33 in |
| 110 mm | |
| Package Level 1 EAN | 5415022541229 |
| Additional Information | |
| Cable Cross-Section | Conductor 10 ... 50 mm² |
| Effective Date | 20240410 |
| Material of Conductor | Aluminum and Copper |
| Product Main Type | METALLIC COMPONENTS AND TOOLS |
| Product Name | ELECTRICAL TERMINALS & COUPLINGS |
| Surface Finishing | Tinned |
| Certificates and Declarations | |
| Data Sheet, Technical Information | TDS000846 |
| External Classifications and Standards | |
| ETIM 7 | EC001054 - Screw cable lug |
| ETIM 9 | EC001054 - Screw cable lug |
| ETIM 10 | EC001054 - Screw cable lug |
| Material Compliance | |
| RoHS Information | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| WEEE Category | Product Not in WEEE Scope |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
