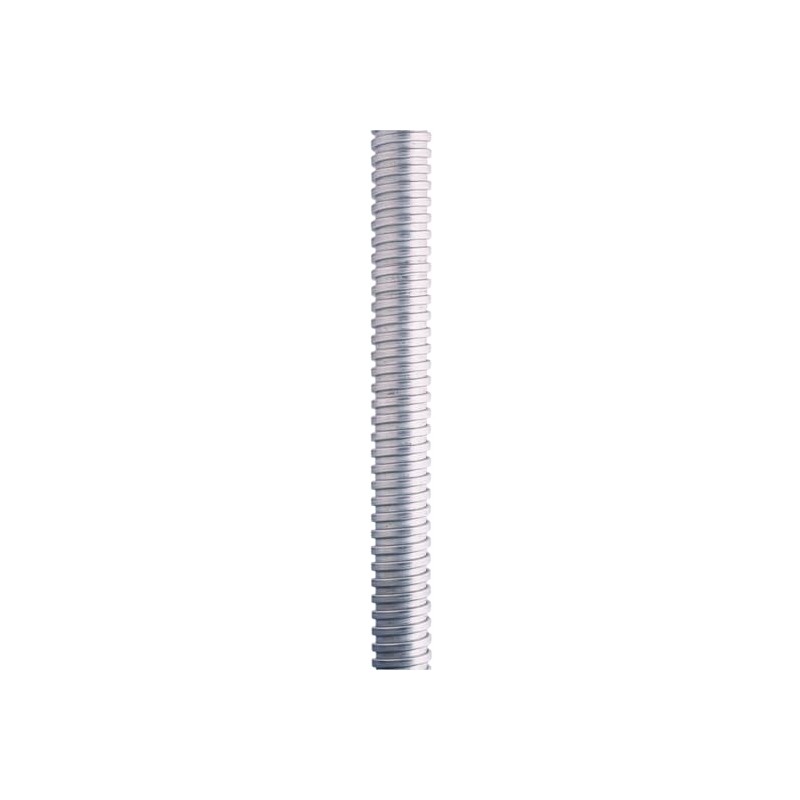

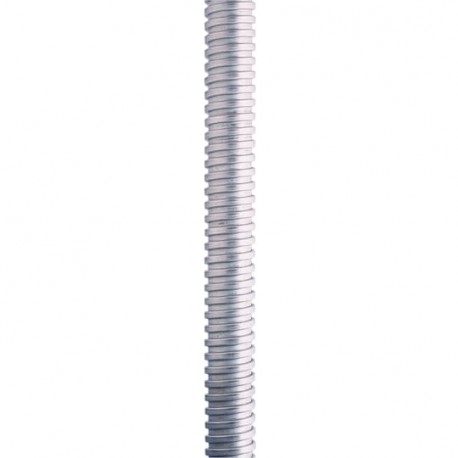

S63/10M 7TCA296010R0169 THOMAS AND BETTS 10M X S63 CONDUIT
S63/10M
7TCA296010R0169
THOMAS AND BETTS
10
10M X S63 CONDUIT
Adaptaflex cable protection and cable gland
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- S63/10M
- Product ID:
- 7TCA296010R0169
- EAN:
- 5020963005275
- Catalog Description:
- 10M X S63 CONDUIT
- Long Description:
- Inherent Low Fire Hazard Steel Conduit, Nominal Conduit Size 63mm, Outside Diameter 62.5mm, Inside Diameter 57.5mm, Static Bend Radius 115mm, Reel Length 10 Meters, Galvanised Steel General Purpose
Ordering
- EAN:
- 5020963005275
Dimensions
- Product Net Depth / Length:
- 10m
- Product Net Weight:
- 11.46lb
5.197 kg
Container Information
- Package Level 2 Units:
- 1 piece
- Package Level 2 Width:
- 1 in
25 mm
- Package Level 2 Height:
- 1 in
25 mm
- Package Level 2 Depth / Length:
- 1 in
25 mm
Additional Information
- Application:
- Indoors / Outdoors - Light Industrial, Buildings
- Brand / Label:
- Adaptaflex
- Flexibility:
- Very High
- Inside Diameter:
- 57.5 mm
- Material:
- Galvanized Steel
- Nominal Size:
- 2 in
- Number of Batteries:
- 0
- Outside Diameter:
- 62.5 mm
- Product Name:
- flexible metal conduit
- Product Type:
- Low Fire Hazard Conduit
- Radius:
- 115 mm
- Special Functions:
- Very High UV Protection and Fatigue Life
- UPC:
- 786210251639
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- S63/10M
- Declaration of Conformity - CE:
- 9AKK107492A9618
- Instructions and Manuals:
- S63/10M
Classifications
- ETIM 6:
- EC001179 - Protective metallic hose
- ETIM 7:
- EC001179 - Protective metallic hose
- UNSPSC:
- 39131706
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 5535 >> Electrical conduit
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| S63/10M 7TCA296010R0169 EN_7TCA296010R0169.pdf | 77 Kbytes |
|
