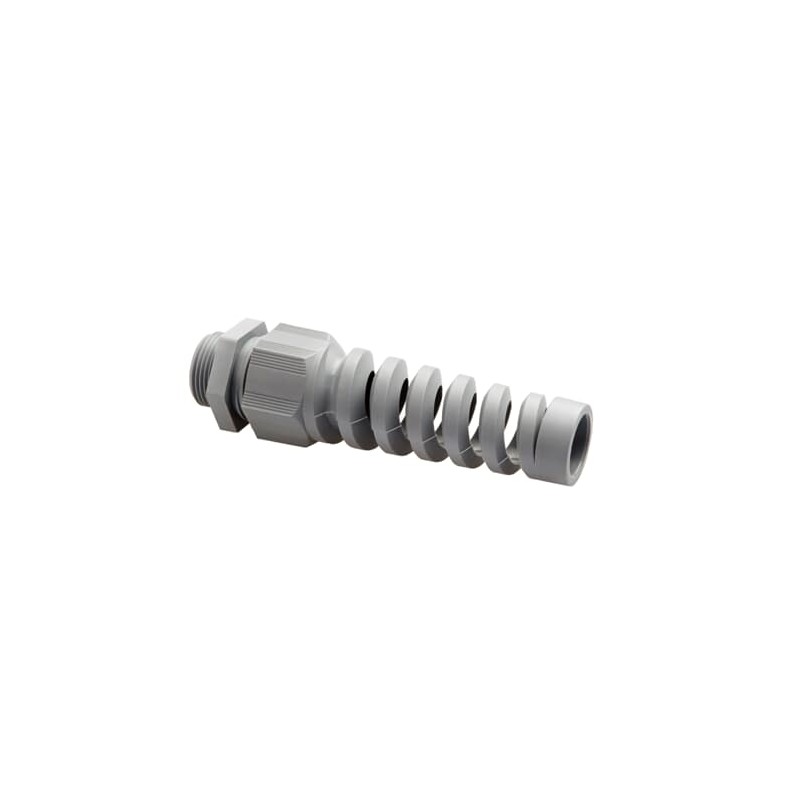

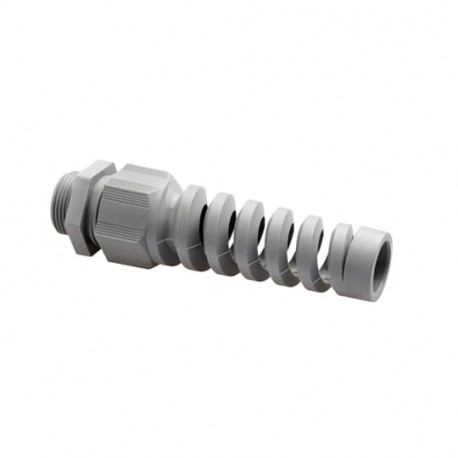

NCGS-PG71B 7TCA303070R0239 THOMAS AND BETTS NYLON SR CG PG7 3-6.5 BLK
NCGS-PG71B
7TCA303070R0239
THOMAS AND BETTS
10
NYLON SR CG PG7 3-6.5 BLK
Adaptaflex cable protection and cable gland
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- NCGS-PG71B
- Product ID:
- 7TCA303070R0239
- EAN:
- 5415022428711
- Catalog Description:
- NYLON SR CG PG7 3-6.5 BLK
- Long Description:
- Non Armoured Cable Gland with Strain Relief, Thread Size PG07, Cable Range 3 to 6.5mm, Thread Length 15mm, Nylon, Black
Ordering
- EAN:
- 5415022428711
Dimensions
- Product Net Weight:
- .01lb
4.535 g
Container Information
- Package Level 1 Units:
- 10 piece
- Package Level 1 Width:
- 3.54 in
90 mm
- Package Level 1 Height:
- 3.54 in
90 mm
- Package Level 1 Depth / Length:
- 7.09 in
180 mm
- Package Level 2 Units:
- 100 piece
- Package Level 2 Width:
- 15.75 in
400 mm
- Package Level 2 Height:
- 11.02 in
280 mm
- Package Level 2 Depth / Length:
- 3.94 in
100 mm
Additional Information
- Application:
- General purpose, Panel building, Light fixture and housings
- Brand / Label:
- ABB
- Color:
- Black
- Material:
- Nylon
- Number of Batteries:
- 0
- Product Name:
- Nylon Cable Gland
- Product Type:
- Non Armoured Cable Gland with Strain Relief
- Size:
- PG07
- Standards:
- UL514B, RoHS, WEEE, LVD
- Temperature Range:
- -20 to +100 °C
- UPC:
- 786210157641
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- TDS000031
- Declaration of Conformity - CE:
- 9AKK107492A9845
- Instructions and Manuals:
- NCGS-PG71B
Classifications
- ETIM 6:
- EC000441 - Cable screw gland
- ETIM 7:
- EC000441 - Cable gland
- UNSPSC:
- 39121431
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 4601 >> Cable gland connector
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| NCGS-PG71B 7TCA303070R0239 EN_7TCA303070R0239.pdf | 76 Kbytes |
|
