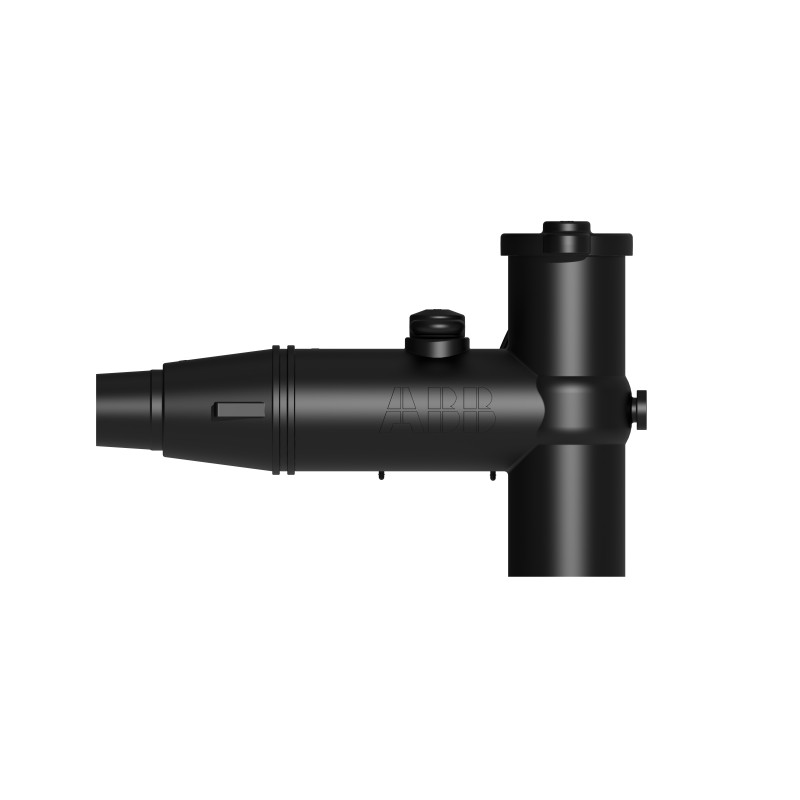

EST66GAE 7TCA310035R0052 THOMAS AND BETTS SYM T 630A 36KV ADAPTER E 95 MM2
EST66GAE
7TCA310035R0052
THOMAS AND BETTS
SYM T 630A 36KV ADAPTER E 95 MM2
Home > THOMAS AND BETTS
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲| Ordering | |
|---|---|
| EAN | 5415022554731 |
| UPC | 708917439141 |
| Country of Origin | Hungary |
| Selling Unit of Measure | each |
| Dimensions | |
| Product Net Width | 4 in |
| 101 mm | |
| Product Net Height | 12 in |
| 309 mm | |
| Product Net Depth / Length | 8 in |
| 213 mm | |
| Product Net Weight | 6.19605 lb |
| 2.81 kg | |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 12.402 in |
| 315 mm | |
| Package Level 1 Height | 4.331 in |
| 110 mm | |
| Package Level 1 Depth / Length | 16.929 in |
| 430 mm | |
| Additional Information | |
| Cable Length | 0.8 m |
| Connection Type | Shear Bolt |
| Effective Date | 20251018 |
| Number of Conductors | 1 |
| Product Main Type | SEPARABLE CONNECTORS IEC/CENELEC |
| Product Name | GASKETS, WASHERS AND OTHER SEALS |
| Rated Voltage (Ur) | 19/33 (36) kV |
| Cross-Section (Across) | 25…95 mm² |
| Certificates and Declarations | |
| Data Sheet, Technical Information | TDS000937 |
| CAD Dimensional Drawing | 9AKK108471A9028 |
| External Classifications and Standards | |
| ETIM 9 | EC003521 - Plug termination for medium and high voltage cables |
| ETIM 10 | EC003521 - Plug termination for medium and high voltage cables |
| Material Compliance | |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| WEEE Category | Product Not in WEEE Scope |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
