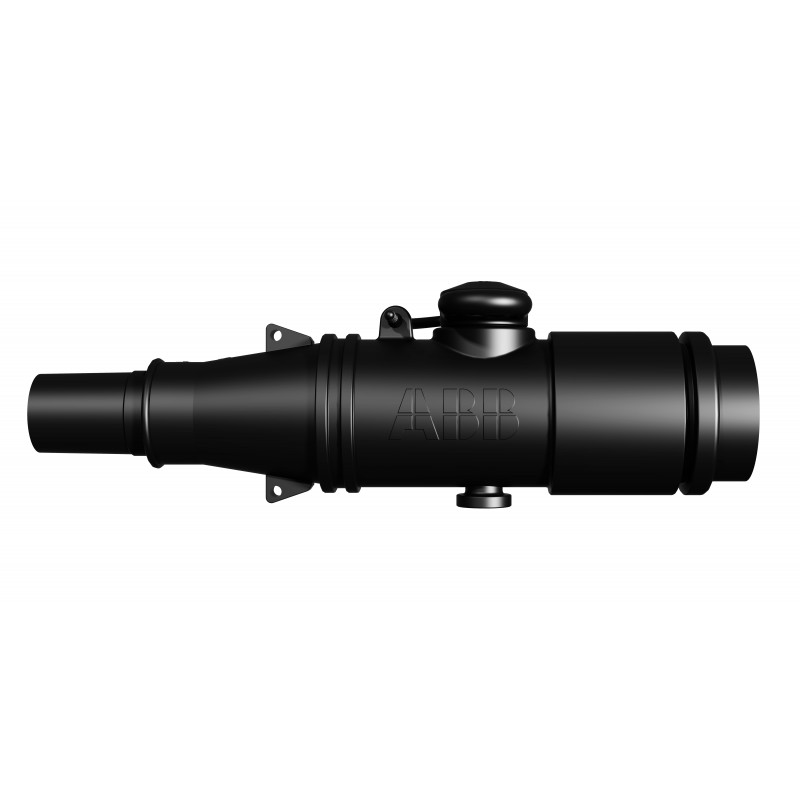

ESS25JAE 7TCA310015R0007 THOMAS AND BETTS STRAIGHT CONNECTION 250A MT 24kV ADAP. E-ELASTI
ESS25JAE
7TCA310015R0007
THOMAS AND BETTS
STRAIGHT CONNECTION 250A MT 24kV ADAP. E-ELASTI
STRAIGHT 250A UP TO 24KV ADAPTER E
High voltage distribution systems > Plug termination for medium and high voltage cables
Home > THOMAS AND BETTS
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲| Ordering | |
|---|---|
| EAN | 5415022547696 |
| UPC | 708917424321 |
| Country or Territory of Origin | Hungary |
| Selling Unit of Measure | each |
| Dimensions | |
| Product Net Width | 4 in |
| 90 mm | |
| Product Net Height | 4 in |
| 90 mm | |
| Product Net Depth / Length | 9 in |
| 238 mm | |
| Product Net Weight | 2.921625 lb |
| 1.325 kg | |
| Container Information | |
| Package Level 1 Units | 1 piece |
| Package Level 1 Width | 3.54 in |
| 90 mm | |
| Package Level 1 Height | 12.6 in |
| 320 mm | |
| Package Level 1 Depth / Length | 9.06 in |
| 230 mm | |
| Package Level 1 EAN | 5415022547696 |
| Additional Information | |
| Cable Cross-Section | Conductor 25 … 150 mm² |
| Cable Length | 0.8 m |
| Connection Type | Shear Bolt |
| Effective Date | 20250122 |
| Number of Conductors | 1 |
| Product Main Type | SEPARABLE CONNECTORS IEC/CENELEC |
| Product Name | ELECTRICAL CONNECTOR 250A |
| Rated Voltage (Ur) | 12.7/22 (24) kV |
| Certificates and Declarations | |
| Data Sheet, Technical Information | TDS000940 |
| CAD Dimensional Drawing | 29316 |
| External Classifications and Standards | |
| ETIM 7 | EC003521 - Plug termination for medium and high voltage cables |
| ETIM 9 | EC003521 - Plug termination for medium and high voltage cables |
| ETIM 10 | EC003521 - Plug termination for medium and high voltage cables |
| Material Compliance | |
| REACH Information | False - does not contain substances > 0.1 mass percentage |
| WEEE Category | Product Not in WEEE Scope |
