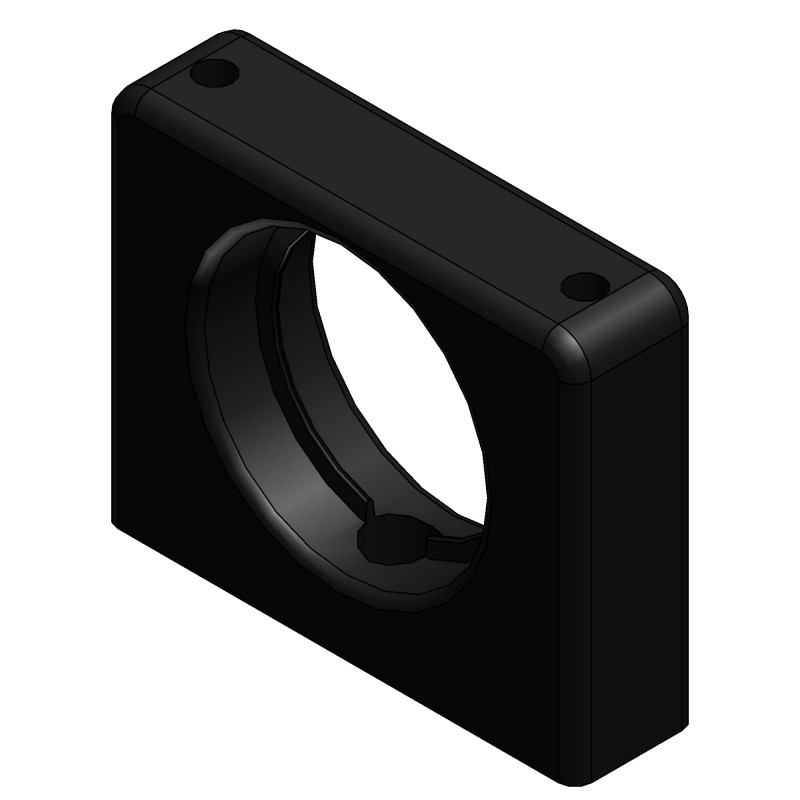

BGPS-12/01 7TCA292000R5539 THOMAS AND BETTS SYSTEM SUPPORT PA6 NW12 1-PIECE BLK
BGPS-12/01
7TCA292000R5539
THOMAS AND BETTS
30
SYSTEM SUPPORT PA6 NW12 1-PIECE BLK
PMAGRIP SUPPORT SYSTEM DN12, BLACK
Installation material for cables and tubes > Tube clamp
PMA cable protection
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲Ordering
| EAN: | 7630030292057 |
| Customs Tariff Number: | 3926909990 |
Dimensions
| Product Net Weight: | .07 lb 31.746 g |
Container Information
| Package Level 1 Units: | 30 piece |
| Package Level 1 Width: | 3.9 in 99 mm |
| Package Level 1 Height: | 2.6 in 66 mm |
| Package Level 1 Depth / Length: | 5.3 in 135 mm |
| Package Level 2 Units: | 90 piece |
| Package Level 2 Width: | 11.811 in 300 mm |
| Package Level 2 Height: | 8.661 in 220 mm |
| Package Level 2 Depth / Length: | 15.748 in 400 mm |
Additional Information
| Application: | Railway Vehicle Construction, Heavy Machine Building Industry and Other Applications with Increased Mechanical Requirements. |
| Brand / Label: | PMA |
| Cable Size: | NW12 |
| Color: | Black |
| Material: | Polyamide/Nylon 6 |
| Number of Batteries: | 0 |
| Product Name: | PLASTIC SUPPORT FOR CONDUIT |
| Product Type: | Flexible Conduit Support Systems |
| Special Functions: | Very High Impact Resistance |
| Standards: | Network Rail |
| Thickness: | 30 mm |
| UPC: | 786210136387 |
Certificates and Declarations (Document Number)
| Data Sheet, Technical Information: | BGPS-12/01 |
| Instructions and Manuals: | BGPS-12/01 |
Classifications
| ETIM 6: | EC001171 - Holder for protective hose |
| ETIM 7: | EC000368 - Tube clamp |
| UNSPSC: | 39121701 |
| WEEE Category: | Product Not in WEEE Scope |
| IDEA Granular Category Code (IGCC): | 5026 >> Electrical hangers |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG PMA CABLES PROTECTION EN.pdf | 7 Mbytes |
|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| BGPS-12/01 7TCA292000R5539 7TCA292000R5539_BGPS-12_01.pdf | 198 Kbytes |
|
