THOMAS AND BETTSCable glandBEM-PG161 7TCA303080R0063 THOMAS AND BETTS PRESS EMC PG16 (7,5-14)

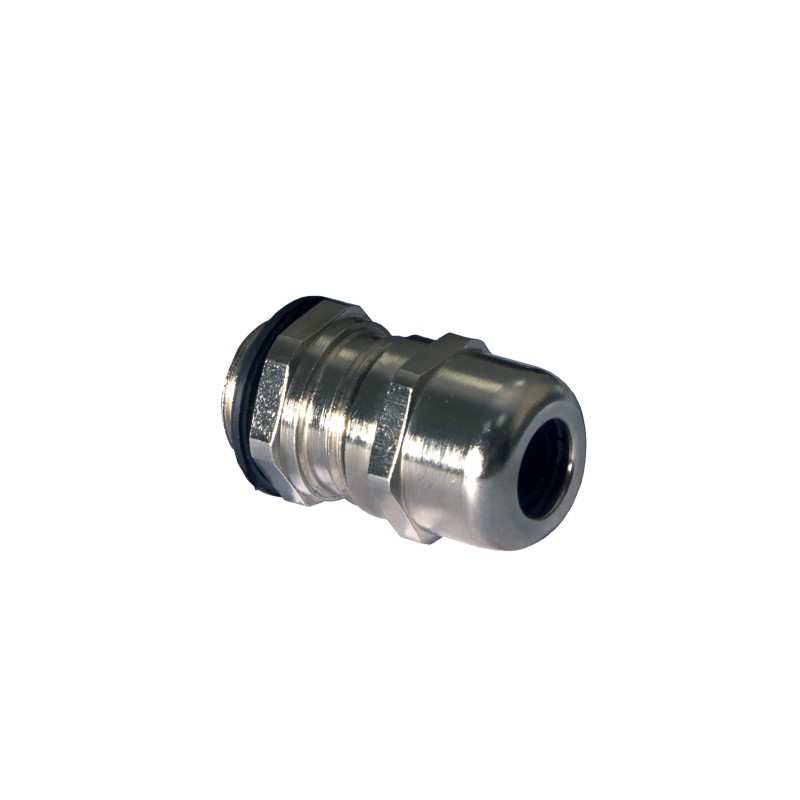

THOMAS AND BETTS BEM-PG161 7TCA303080R0063 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

BEM-PG161 7TCA303080R0063 THOMAS AND BETTS PRESS EMC PG16 (7,5-14)

Reference: BEM-PG161

Code: 7TCA303080R0063

Manufacturer: THOMAS AND BETTS

Description:

PRESS EMC PG16 (7,5-14)
EMC PG16 PRESS (7.5-14)
BRASS EMC CG PG16 - 7.5-14.0MM

Categories:

  • THOMAS AND BETTS > Cable gland

Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

  • Extended Product Type:
    BEM-PG161
  • Product ID:
    7TCA303080R0063
  • EAN:
    5415022403619
  • Catalog Description:
    BRASS EMC CG PG16 - 7.5-14.0MM
  • Long Description:
    EMC Cable Gland, Thread Size PG16, Cable Range 7.5 to 14 Millimeters, Shield Range 5.5 to 11.5 Millimeters, Thread Length 6.5 Millimeters, Nickel Plated Brass

Ordering

  • EAN:
    5415022403619
  • Customs Tariff Number:
    7412200035

Dimensions

  • Product Net Weight:
    .01lb
    4.535 g

Container Information

  • Package Level 1 Units:
    10 piece
  • Package Level 1 Width:
    3.54 in
    90 mm
  • Package Level 1 Height:
    3.54 in
    90 mm
  • Package Level 1 Depth / Length:
    7.09 in
    180 mm
  • Package Level 2 Units:
    50 piece
  • Package Level 2 Width:
    15.75 in
    400 mm
  • Package Level 2 Height:
    11.02 in
    280 mm
  • Package Level 2 Depth / Length:
    3.94 in
    100 mm

Additional Information

  • Application:
    General purpose, Panel building, Light fixture and housings
  • Brand / Label:
    ABB
  • Color:
    Metallic
  • Material:
    Brass
  • Number of Batteries:
    0
  • Product Name:
    Brass EMC Cable Gland
  • Product Type:
    EMC Cable Gland
  • Size:
    PG16
  • Standards:
    cULus, RoHS, WEEE, LVD
  • Surface Finishing:
    Nickel Plated
  • Temperature Range:
    -20 to +100 °C
  • UPC:
    786210138398

Certificates and Declarations (Document Number)

Classifications

  • ETIM 6:
    EC000441 - Cable screw gland
  • ETIM 7:
    EC000441 - Cable gland
  • UNSPSC:
    39121431
  • WEEE Category:
    Product Not in WEEE Scope
  • IDEA Granular Category Code (IGCC):
    4601 >> Cable gland connector

DATASHEET - PDF

Title
Size
Type
BEM-PG161 7TCA303080R0063 EN_7TCA303080R0063.pdf
76 Kbytes
PDF CATALOGUE THOMAS&BETTS EN
18 Mbytes
