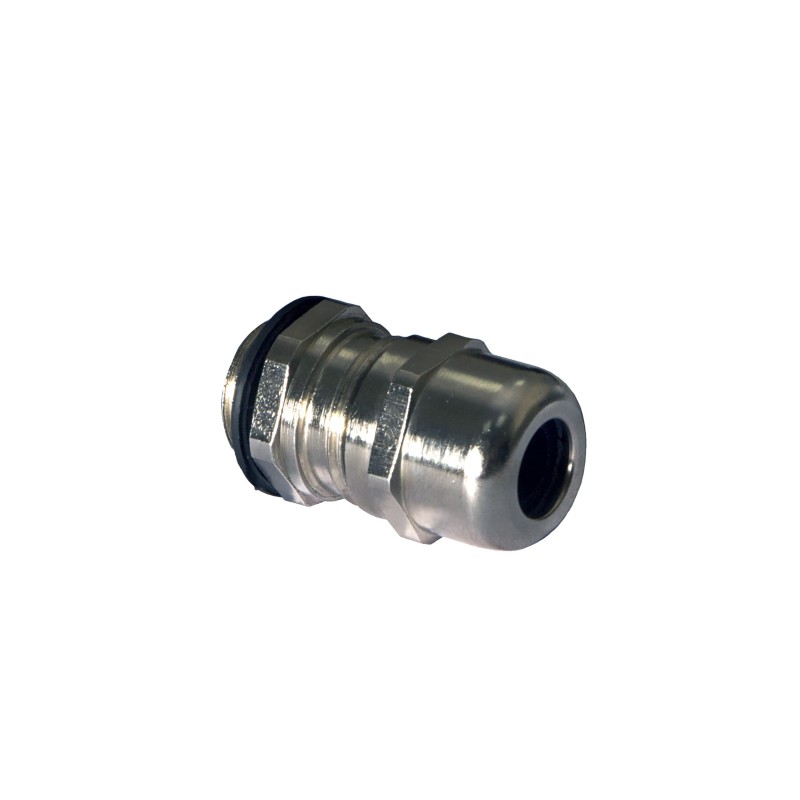

BEM-M121 7TCA303080R0041 THOMAS AND BETTS PRESS EMC M12 (3-6,5)
BEM-M121
7TCA303080R0041
THOMAS AND BETTS
10
PRESS EMC M12 (3-6,5)
EMC M12 PRESS (3-6.5)
BRASS EMC CG M12 - 3.0-6.5MM
Cable gland
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- BEM-M121
- Product ID:
- 7TCA303080R0041
- EAN:
- 5415022403398
- Catalog Description:
- BRASS EMC CG M12 - 3.0-6.5MM
- Long Description:
- EMC Cable Gland, Thread Size M12, Cable Range 3 to 6.5 Millimeters, Shield Range 2 to 5 Millimeters, Thead Length 6 Millimeters, Nickel Plated Brass
Ordering
- EAN:
- 5415022403398
- Customs Tariff Number:
- 7412200035
Dimensions
- Product Net Weight:
- .01lb
4.535 g
Container Information
- Package Level 1 Units:
- 10 piece
- Package Level 1 Width:
- 3.54 in
90 mm
- Package Level 1 Height:
- 3.54 in
90 mm
- Package Level 1 Depth / Length:
- 7.09 in
180 mm
- Package Level 2 Units:
- 100 piece
- Package Level 2 Width:
- 15.75 in
400 mm
- Package Level 2 Height:
- 11.02 in
280 mm
- Package Level 2 Depth / Length:
- 3.94 in
100 mm
Additional Information
- Application:
- General purpose, Panel building, Light fixture and housings
- Brand / Label:
- ABB
- Color:
- Metallic
- Material:
- Brass
- Number of Batteries:
- 0
- Product Name:
- Brass EMC Cable Gland
- Product Type:
- EMC Cable Gland
- Size:
- M12
- Standards:
- cULus, RoHS, WEEE, LVD
- Surface Finishing:
- Nickel Plated
- Temperature Range:
- -20 to +100 °C
- UPC:
- 786210138152
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- TDS000033
- Declaration of Conformity - CE:
- 9AKK107492A9845
- Instructions and Manuals:
- BEM-M121
Classifications
- ETIM 6:
- EC000441 - Cable screw gland
- ETIM 7:
- EC000441 - Cable gland
- UNSPSC:
- 39121431
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 4601 >> Cable gland connector
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| BEM-M121 7TCA303080R0041 EN_7TCA303080R0041.pdf | 76 Kbytes |
|
