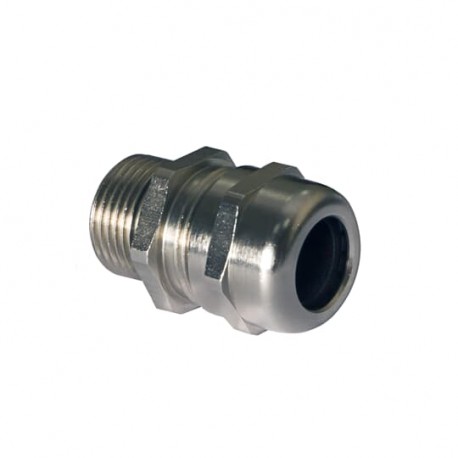

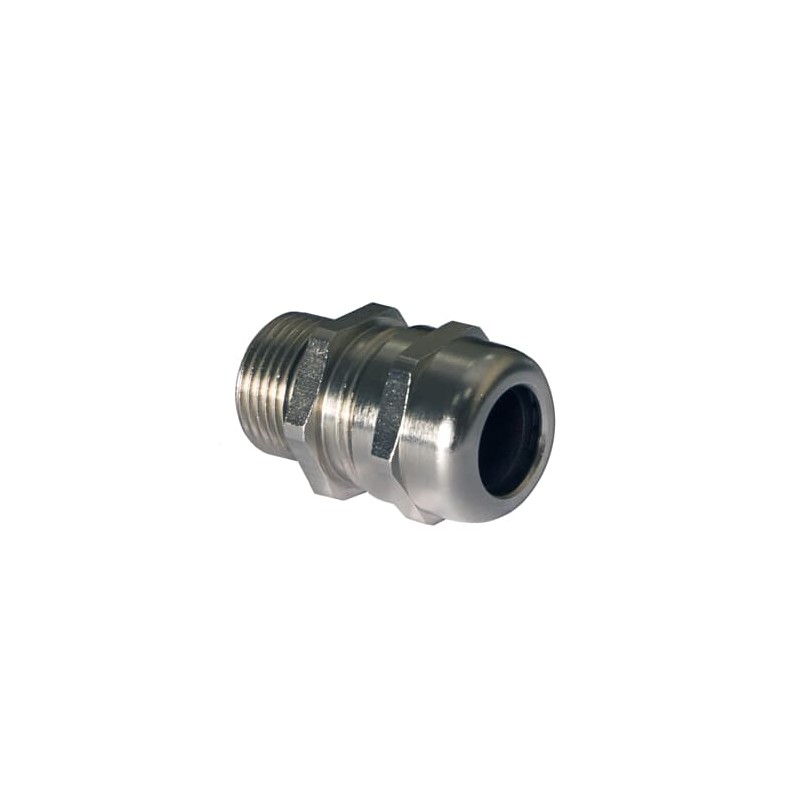

BCG-PG111 7TCA303030R0070 THOMAS AND BETTS PRESS BRASS NIQ. PG11 (3-7)
BCG-PG111
7TCA303030R0070
THOMAS AND BETTS
10
PRESS BRASS NIQ. PG11 (3-7)
NP BRASS CG PG11 3-7MM
Adaptaflex cable protection and cable gland
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- BCG-PG111
- Product ID:
- 7TCA303030R0070
- EAN:
- 5415022428100
- Catalog Description:
- NP BRASS CG PG11 3-7MM
- Long Description:
- Non Armoured Cable Gland, Thread Size PG11, Cable Range 3 to 7 Millimeters, Thread Length 6 Millimeters, Nickel Plated Brass
Ordering
- EAN:
- 5415022428100
- Customs Tariff Number:
- 7412200035
Dimensions
- Product Net Weight:
- .02lb
9.07 g
Container Information
- Package Level 1 Units:
- 10 piece
- Package Level 1 Width:
- 3.54 in
90 mm
- Package Level 1 Height:
- 3.54 in
90 mm
- Package Level 1 Depth / Length:
- 7.09 in
180 mm
- Package Level 2 Units:
- 100 piece
- Package Level 2 Width:
- 15.75 in
400 mm
- Package Level 2 Height:
- 11.02 in
280 mm
- Package Level 2 Depth / Length:
- 3.94 in
100 mm
Additional Information
- Application:
- General purpose, Panel building, Light fixture and housings
- Brand / Label:
- ABB
- Color:
- Metallic
- Material:
- Brass
- Number of Batteries:
- 0
- Product Name:
- NICKEL PLATED BRASS CABLE GLAND
- Product Type:
- Non Armoured Cable Gland
- Size:
- PG11
- Standards:
- cULus, RoHS, WEEE, LVD
- Surface Finishing:
- Nickel plated
- Temperature Range:
- -20 to +100 °C
- UPC:
- 786210157061
Certificates and Declarations (Document Number)
- Data Sheet, Technical Information:
- TDS000028
- Declaration of Conformity - CE:
- 9AKK107492A9845
- Instructions and Manuals:
- BCG-PG111
Classifications
- ETIM 6:
- EC000441 - Cable screw gland
- ETIM 7:
- EC000441 - Cable gland
- UNSPSC:
- 39121431
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 4601 >> Cable gland connector
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| BCG-PG111 7TCA303030R0070 EN_7TCA303030R0070.pdf | 78 Kbytes |
|
