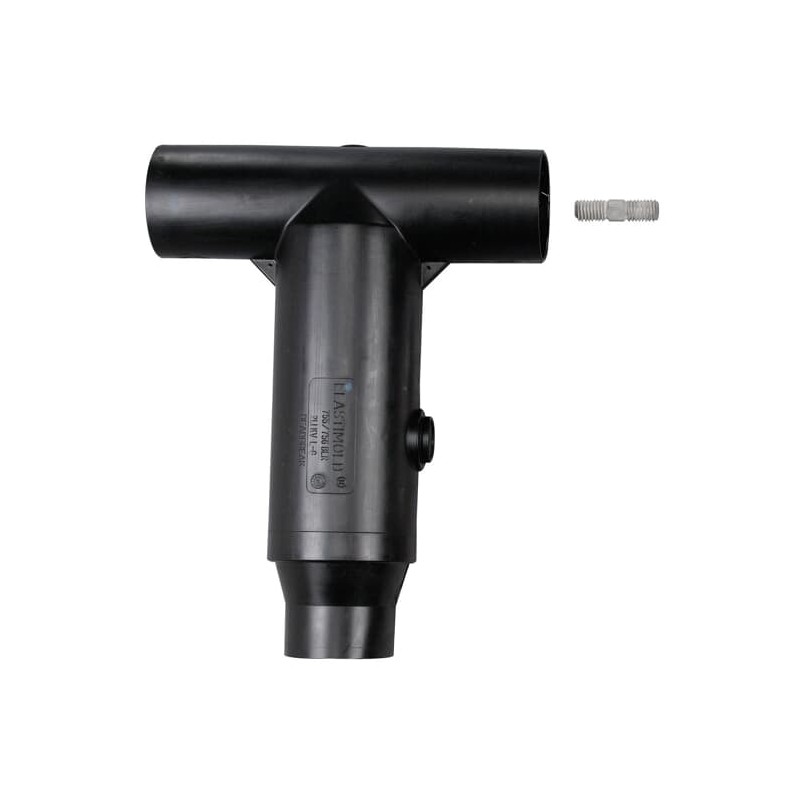

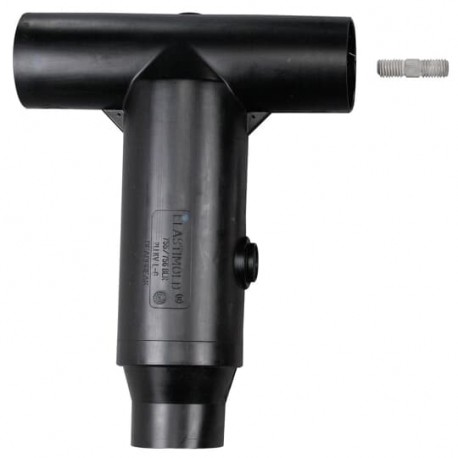

755BLR 7TAA122300R0005 THOMAS AND BETTS HOUSING EMPTY FOR TERMINALS ELASTIMOLD
755BLR
7TAA122300R0005
THOMAS AND BETTS
HOUSING EMPTY FOR TERMINALS ELASTIMOLD
35KV DEADBREAK ELB HOUSING
Cable management flanges
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- 755BLR
- Product ID:
- 7TAA122300R0005
- EAN:
- 5415022249583
- Catalog Description:
- 35KV DEADBREAK ELB HOUSING
- Long Description:
- 35kV 600 Series Deadbreak Elbow Housing Only (with Stud)
Ordering
- EAN:
- 5415022249583
- Customs Tariff Number:
- 8535908020
Dimensions
- Product Net Weight:
- 5.02lb
2.277 kg
Container Information
- Package Level 2 Units:
- 1 piece
- Package Level 2 Width:
- 11 in
279 mm
- Package Level 2 Height:
- 5 in
127 mm
- Package Level 2 Depth / Length:
- 14 in
356 mm
Additional Information
- Application:
- The Elastimold 755BLR deadbreak elbow housings are a component of the Elastimold 600 Amp elbow product line.
- Brand / Label:
- Elastimold
- Material:
- EPDM Rubber
- Number of Batteries:
- 0
- Product Name:
- "electrical connector,>1000v"
- Product Type:
- Elbow Housing
- Size:
- 3.83 inch (97.3 mm) Diameter of Cable Entrance, 10.16 inch (258.1 mm) Width of T Body, 13.93 (353.7 mm) Centerline to Bushing Interface.
- Special Functions:
- Fully rated 35kV, 600 Amp Deadbreak Elbow. Fully shielded, fully submersible molded rubber housing. 100 percent peroxide-cured construction includes insulation and conductive EPDM materials. Can be easily connected or disconnected using standard hand tools and equipment in a de-energized state. Optional accessories allow visible external separation, by-pass, isolation, dead-ending, grounding, and testing as well as adding taps, surge arrestors, and fault current indicators.
- Standards:
- ANSI/IEEE Standard 386
- UPC:
- 783786667123
Certificates and Declarations (Document Number)
Classifications
- UNSPSC:
- 26121630
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 1779 >> Cable accessories
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOG CABLE MANAGEMENT FLANGES EN.pdf | 6 Mbytes |
|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| 755BLR 7TAA122300R0005 EN_7TAA122300R0005.pdf | 79 Kbytes |
|
