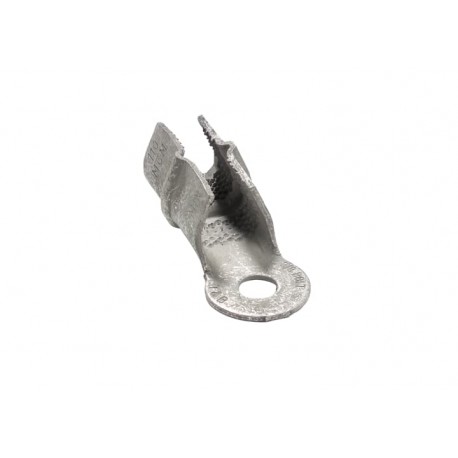

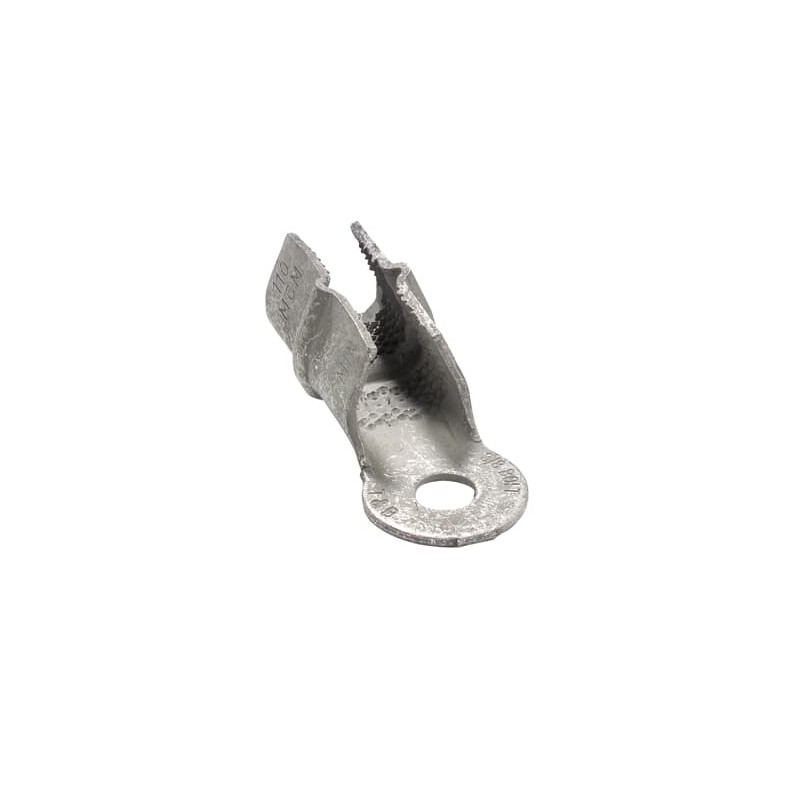

220022 7TAI029030R0012 THOMAS AND BETTS ANIL. CONN. INSULATION PRC 1/2 STUD
220022
7TAI029030R0012
THOMAS AND BETTS
25
ANIL. CONN. INSULATION PRC 1/2 STUD
RING TERM CU 50-115KCMIL 1/2 STUD
Terminals
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- 220022
- Product ID:
- 7TAI029030R0012
- EAN:
- 5414363111900
- Catalog Description:
- RING TERM CU 50-115KCMIL 1/2 STUD
- Long Description:
- Insulation Piercing Magnet Wire Ring Terminal, Length 2.76 Inches, Width 1.06 Inches, Length of Teeth 1.50 Inches, Width of Teeth .88 Inches, Stud Size 1/2 Inch, Wire Range 50,000 Circular Mil Area - 115,000 Circular Mil Area, Copper Alloy, Tin Plated
Ordering
- EAN:
- 5414363111900
- Customs Tariff Number:
- 8536904000
Dimensions
- Product Net Weight:
- .112lb
50.794 g
Container Information
- Package Level 1 Units:
- 25 piece
- Package Level 1 Width:
- 4.5 in
114 mm
- Package Level 1 Height:
- 3 in
76 mm
- Package Level 1 Depth / Length:
- 6 in
152 mm
- Package Level 2 Units:
- 250 piece
- Package Level 2 Width:
- 10.25 in
260 mm
- Package Level 2 Height:
- 12.75 in
324 mm
- Package Level 2 Depth / Length:
- 10.5 in
267 mm
Additional Information
- Application:
- For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
- Brand / Label:
- Dragon Tooth
- Material:
- Copper
- Number of Batteries:
- 0
- Product Name:
- ELECTRICAL CONNECTOR,<1000V
- Product Type:
- Ring Terminal
- Special Functions:
- Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
- UPC:
- 786210855585
Certificates and Declarations (Document Number)
Classifications
- ETIM 6:
- EC001052 - Solderless copper terminals for copper conductors
- ETIM 7:
- EC001052 - Solderless copper terminals for copper conductors
- UNSPSC:
- 39121432
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 4603 >> Electrical terminals
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| 220022 7TAI029030R0012 EN_7TAI029030R0012.pdf | 79 Kbytes |
|
