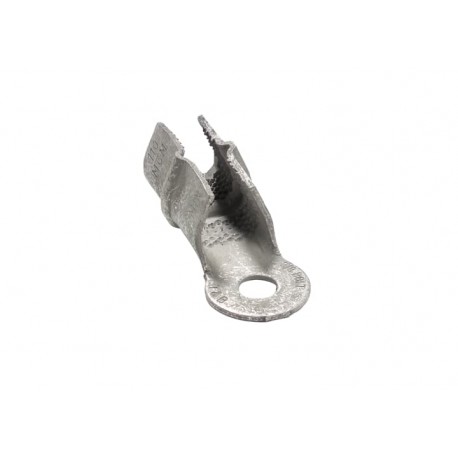

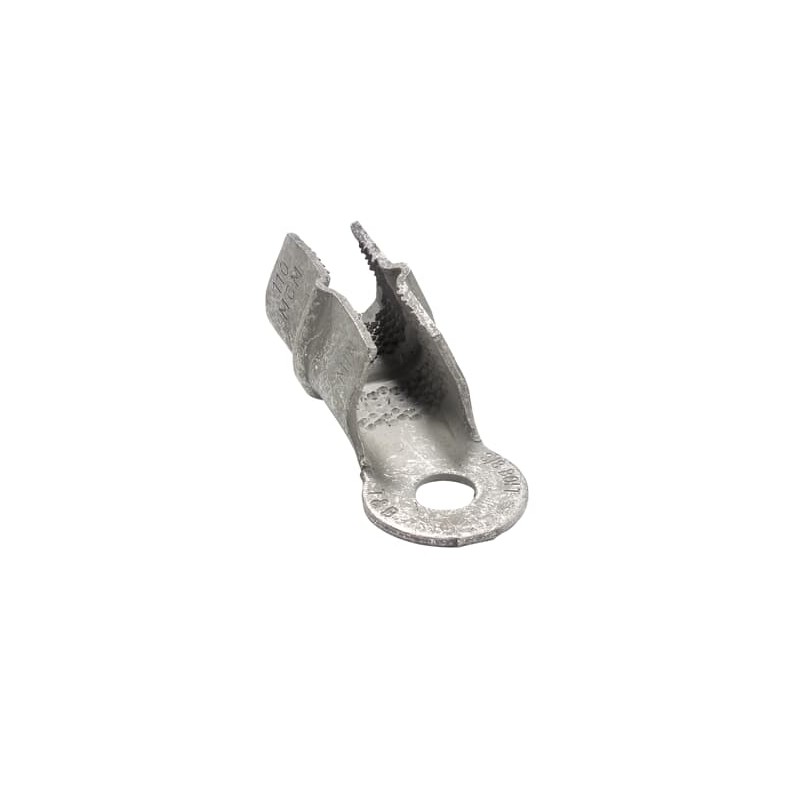

220018 7TAI029030R0010 THOMAS AND BETTS ANIL. CONN. INSULATION PRC 1/2 STUD
220018
7TAI029030R0010
THOMAS AND BETTS
25
ANIL. CONN. INSULATION PRC 1/2 STUD
ANIL. CONN. PRC 1/2 STUD INSULATION
RING TERM CU .100-.175 AWG 1/2 STUD
Installation, isolation and connection material > Solderless copper terminals for copper conductors
Terminals
Brand new product in its original packaging covered by the warranties and certifications provided by THOMAS AND BETTS
Best sellers
▲More info
▲- Extended Product Type:
- 220018
- Product ID:
- 7TAI029030R0010
- EAN:
- 5414363111863
- Catalog Description:
- RING TERM CU .100-.175 AWG 1/2 STUD
- Long Description:
- Insulation Piercing Magnet Wire Ring Terminal, Length 2.76 Inches, Width 1.06 Inches, Length of Teeth 1.50 Inches, Width of Teeth .88 Inches, Stud Size 1/2 Inch, Wire Range .100 AWG - .175 AWG 50,000 Circular Mil Area - 115,000 Circular Mil Area, Copper Alloy, Tin Plated
Ordering
- EAN:
- 5414363111863
- Customs Tariff Number:
- 8536904000
Dimensions
- Product Net Weight:
- .1lb
45.351 g
Container Information
- Package Level 1 Units:
- 25 piece
- Package Level 1 Width:
- 4.5 in
114 mm
- Package Level 1 Height:
- 3 in
76 mm
- Package Level 1 Depth / Length:
- 6 in
152 mm
- Package Level 2 Units:
- 250 piece
- Package Level 2 Width:
- 11.25 in
286 mm
- Package Level 2 Height:
- 4 in
102 mm
- Package Level 2 Depth / Length:
- 24 in
610 mm
Additional Information
- Application:
- For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
- Brand / Label:
- Dragon Tooth
- Material:
- Copper
- Number of Batteries:
- 0
- Product Name:
- STA-KON AND CATAMOUNT TERMINAL
- Product Type:
- Ring Terminal
- Special Functions:
- Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
- Standards:
- UL E9809
- UPC:
- 786210855547
Certificates and Declarations (Document Number)
Classifications
- ETIM 6:
- EC001052 - Solderless copper terminals for copper conductors
- ETIM 7:
- EC001052 - Solderless copper terminals for copper conductors
- UNSPSC:
- 39121432
- WEEE Category:
- Product Not in WEEE Scope
- IDEA Granular Category Code (IGCC):
- 4603 >> Electrical terminals
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE THOMAS&BETTS EN.pdf | 18 Mbytes |
|
| 220018 7TAI029030R0010 EN_7TAI029030R0010.pdf | 80 Kbytes |
|
