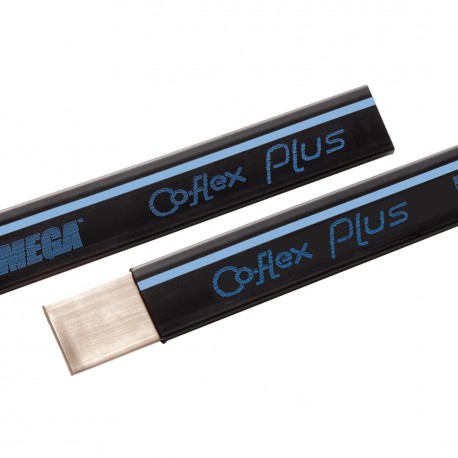

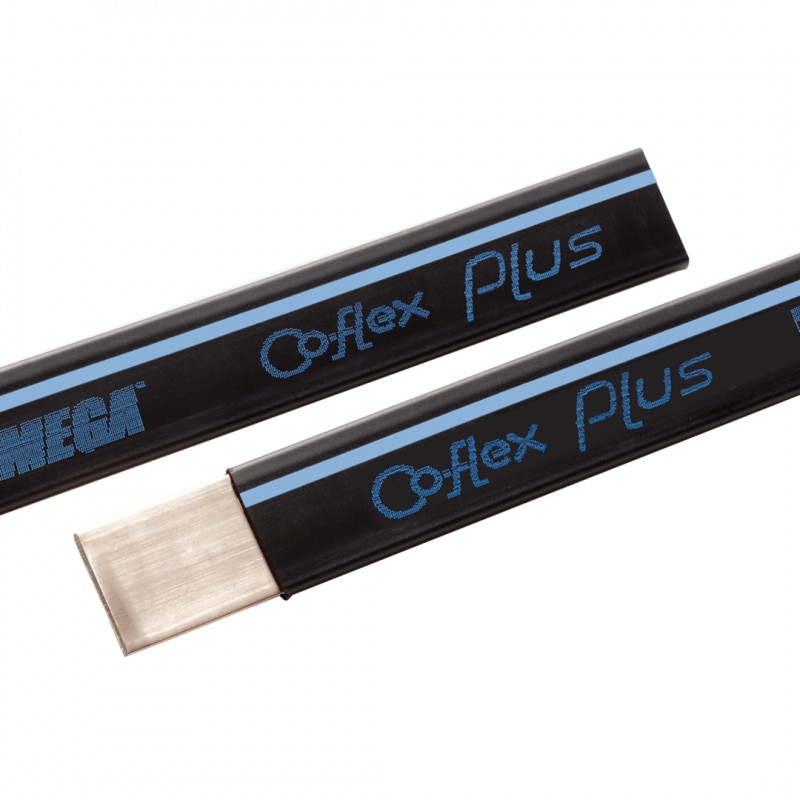

CFP 2X40X1 CFX5155 TEKNOMEGA INSULATED COPPER FLEXIBLE BARS CO-FLEX PLUS 2X40X1 LENGTH 2MT
CFP 2X40X1
CFX5155
TEKNOMEGA
4
INSULATED COPPER FLEXIBLE BARS CO-FLEX PLUS 2X40X1 LENGTH 2MT
PLETINA AISLADA FLEXIBLE CO-FLEX PLUS 2X40X1
COFLEX PLUS – Insulated copper flexible bars
Low-voltage industrial components > Busbar
Home > TEKNOMEGA
Brand new product in its original packaging covered by the warranties and certifications provided by TEKNOMEGA
Related products
▲Best sellers
▲More info
▲Technical Characteristics
Conductor
Tinned electrolytic copper:
Cu-ETP – EN 13599
Laminate thickness:
0,5 – 0,8 – 1mm
Insulation
TPE compound
Black color with a light blue line
Low smoke emission
Self-extinguishing: UL 94-V0
Halogen free
Thickness: 1,9 mm
Dielectric strenght: 20 kV/mm
Class II according to Par. 8.4.4 IEC 61439-1
Recyclable
Finishinged product
Rated voltage:
1000V AC / 1500V DC
Working temperatures:−40 °C ÷ +140 °C
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE POWER SOLUTIONS TEKNOMEGA EN.pdf | 19 Mbytes |
|
| PDF CATALOGUE SOLUTIONS PHOTOVOLTAIC PANELS TEKNOMEGA EN.pdf | 29 Mbytes |
|
| PDF CATALOGUE TEKNOMEGA SOLUTIONS INDUSTRIAL INSTALLATION EN.pdf | 14 Mbytes |
|
