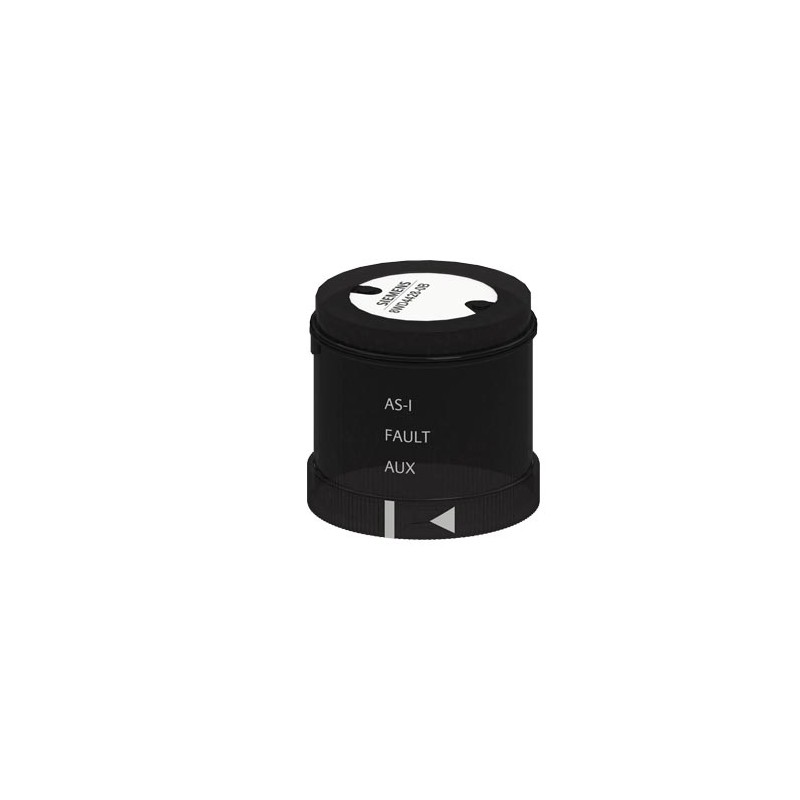

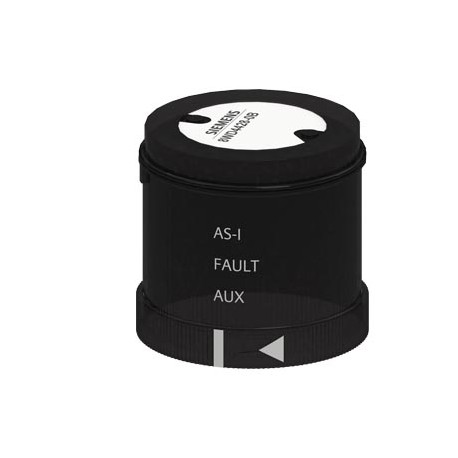

8WD4428-0BE SIEMENS AS-Interface adapter element, black, with/without external auxiliary voltage, can be sel.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

8WD4428-0BE SIEMENS AS-Interface adapter element, black, with/without external auxiliary voltage, can be sel..

8WD4428-0BE

SIEMENS

AS-Interface adapter element, black, with/without external auxiliary voltage, can be selected, standard AS-i, for 4 signaling elements, 24 V DC, Diameter 70 mm

SIRIUS Signaling, as-interface element signal tower with 24V external thread, for max.4 signaling elements..

More details


Low-voltage industrial components > Connection module for signal tower

CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $247.38
Unit price: $247.38
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Related products

▲

Best sellers

▲

More info

▲


Technical data

AS-Interface adapter element, black, with/without external auxiliary voltage, can be selected, standard AS-i, for 4 signaling elements, 24 V DC, Diameter 70 mm
product brand nameSIRIUS
product designationAS-Interface module
General technical data
type of voltage of the operating voltageDC
operating voltage
● at DC rated value18.5 ... 31.6 V
● 1 at DC rated value24 V
consumed current maximum210 mA
reference code
● according to EN 61346-2B
● according to IEC 81346-2B
Communication
design of the interface AS-Interface protocolYes
Enclosure
height65.5 mm
width70 mm
outer diameter of the signal column element70 mm
materialPC
colorblack
fastening methodBayonet
protection class IPIP65
Ambient conditions
ambient temperature during operation-20 ... +50 °C
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMCDeclaration of Conformity

Confirmation

UL

EAC

RCM

UK Declaration of Conformity

EC/EU-Declaration of Conformity

other

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:12/23/2020
Date
5/8/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)8WD4428-0BE
Product DescriptionAS-Interface adapter element, black, with/without external auxiliary voltage, can be selected, standard AS-i, for 4 signaling elements, 24 V DC, Diameter 70 mm
Product family8WD44 signaling columns, 70 mm diameter
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group41J / 41J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works1 Day/Days
Net Weight (kg)0,111 Kg
Packaging Dimension77,00 x 100,00 x 77,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209662421
UPC754554931388
Commodity Code85318070
LKZ_FDB/ CatalogIDCC-IC10
Product Group5833
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-12-32
eClass7.127-37-12-32
eClass827-37-12-32
eClass927-37-12-32
eClass9.127-37-12-32
ETIM5EC001152
ETIM6EC001152
ETIM7EC001152
ETIM8EC001152
IDEA44771
UNSPSC1439-12-15-34
UNSPSC1539-12-15-44

ETIM data

ETIM: EC001152 - Connection module for signal tower

Value Unit
Connection type auxiliary circuit (EF006820) -
Tube mounting possible (EF001668) false
Bracket mounting possible (EF001669) false
Floor mounting possible (EF001670) FALSE
Colour (EF000007) Black
Suitable for AS interface (EF005768) true
