8MF1824-3BR4
SIEMENS
1

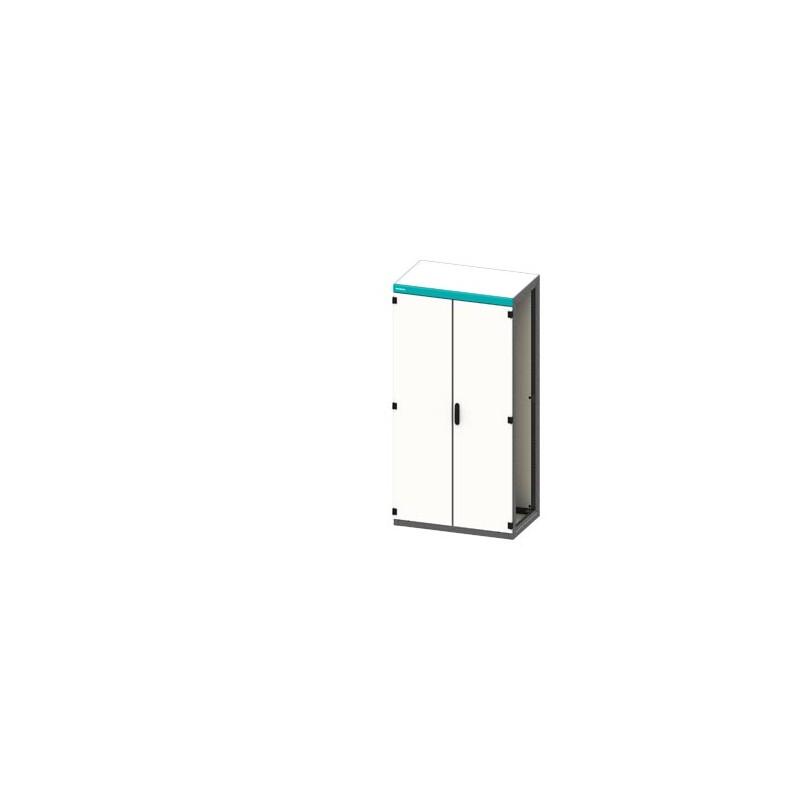

SIVACON, Control panel Empty enclosure, without side panels, according to IEC 62208, IP40, H: 1800 mm, W: 1200 mm, T: 400 mm
SIVACON sicube, empty cabinet enclosure, without side walls, IP40, H: 1800 mm, W: 1200 mm, P: 400 mm. Cancelations and returns limited. Consult conditions.
Cabinet enclosures > Enclosure/switchgear cabinet (empty)
POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > Power Distribution Boards SIVACON S4 up to 6.300 A and SICUBE
* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
Product | |||||||||||||||||||||||||||||||
Article Number (Market Facing Number) | 8MF1824-3BR4 | ||||||||||||||||||||||||||||||
Product Description | SIVACON, Control panel Empty enclosure, without side panels, according to IEC 62208, IP40, H: 1800 mm, W: 1200 mm, T: 400 mm | ||||||||||||||||||||||||||||||
Product family | Complete Enclosures | ||||||||||||||||||||||||||||||
Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||
Price data | |||||||||||||||||||||||||||||||
Region Specific PriceGroup / Headquarter Price Group | 14V / 1BS | ||||||||||||||||||||||||||||||
Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||
Metal Factor | None | ||||||||||||||||||||||||||||||
Delivery information | |||||||||||||||||||||||||||||||
Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||
Standard lead time ex-works | 5 Day/Days | ||||||||||||||||||||||||||||||
Net Weight (kg) | 155,000 Kg | ||||||||||||||||||||||||||||||
Packaging Dimension | 600,00 x 1800,00 x 400,00 | ||||||||||||||||||||||||||||||
Package size unit of measure | MM | ||||||||||||||||||||||||||||||
Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||
Packaging Quantity | 1 | ||||||||||||||||||||||||||||||
Additional Product Information | |||||||||||||||||||||||||||||||
EAN | 4001869539355 | ||||||||||||||||||||||||||||||
UPC | Not available | ||||||||||||||||||||||||||||||
Commodity Code | 94039910 | ||||||||||||||||||||||||||||||
LKZ_FDB/ CatalogID | LV10 | ||||||||||||||||||||||||||||||
Product Group | 3799 | ||||||||||||||||||||||||||||||
Group Code | P310 | ||||||||||||||||||||||||||||||
Country of origin | Germany | ||||||||||||||||||||||||||||||
Compliance with the substance restrictions according to RoHS directive | Since: 01.09.2016 | ||||||||||||||||||||||||||||||
Product class | B: return restricted, please contact your Siemens partner/contact | ||||||||||||||||||||||||||||||
WEEE (2012/19/EU) Take-Back Obligation | No | ||||||||||||||||||||||||||||||
REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||
Classifications | |||||||||||||||||||||||||||||||
|
Value | Unit | |
---|---|---|
Material quality (EF001257) | - | |
Colour (EF000007) | - | |
Degree of protection (NEMA) (EF011959) | - | |
Width (EF000008) | 1200.0 | mm |
Height (EF000040) | 1800.0 | mm |
Depth (EF000049) | 400.0 | mm |
Material (EF002169) | Steel | |
Surface finishing (EF006569) | Powder coating | |
RAL-number (EF000116) | 7035 | |
With mounting plate (EF000118) | true | |
Mounting plate depth-adjustable (EF006054) | true | |
Number of locks (EF000123) | 0 | |
Floor installation possible (EF009581) | true | |
Wall fastening possible (EF006314) | false | |
Wall build in (EF007536) | false | |
Pole fastening (EF009582) | false | |
Tackable (EF006169) | true | |
Number of doors (EF000122) | 2 | |
Suitable for metrical mounting (EF005823) | FALSE | |
Suitable for outdoor set-up (EF005774) | false | |
Pitched roof (EF009278) | false | |
EMC-version (EF001062) | false | |
With glazed door (EF001089) | false | |
With ventilation door (EF006279) | false | |
With backside door (EF007381) | false | |
Impact strength (EF004293) | - | |
Degree of protection (IP) (EF005474) | IP40 |
Title: | Size: | Type: |
---|---|---|
PDF CATALOG SIEMENS SIRIUS INDUSTRIAL CONTROLS EN.pdf | 279 Mbytes | |
8MF1824-3BR4 8MF1824-3BR4 EN_8MF1824-3BR4.pdf | 4 Mbytes |
