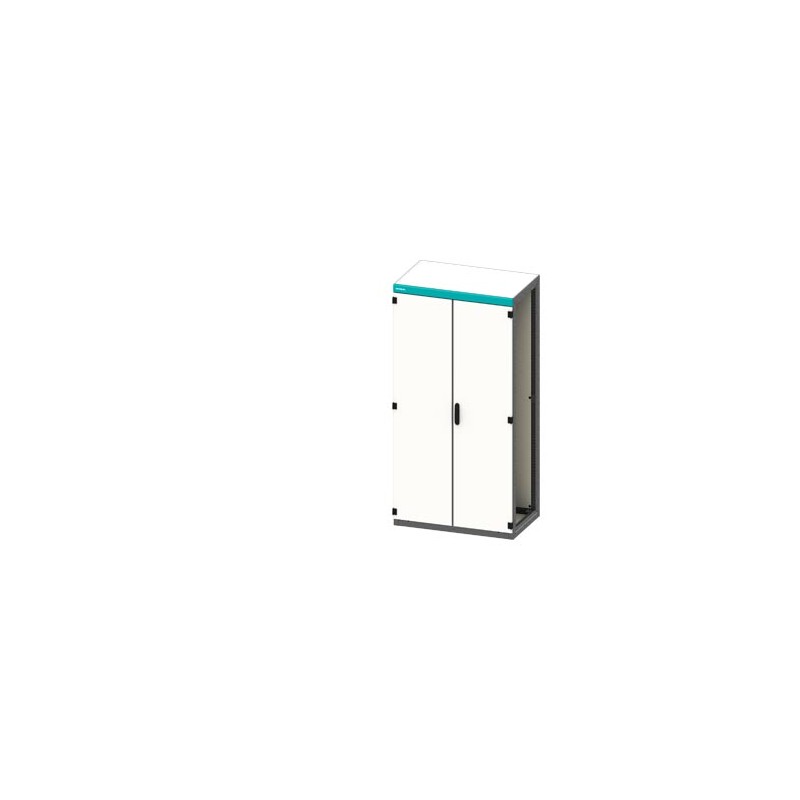

8MF1295-3BR4 SIEMENS SIVACON, Control panel Empty enclosure, without side panels, according to IEC 62208, IP.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

8MF1295-3BR4 SIEMENS SIVACON, Control panel Empty enclosure, without side panels, according to IEC 62208, IP..

8MF1295-3BR4

SIEMENS

SIVACON, Control panel Empty enclosure, without side panels, according to IEC 62208, IP40, H: 2200 mm, W: 900 mm, T: 500 mm

SIVACON sicube, empty cabinet envelope, without sidewalls, IP40, H: 2200 mm, W: 900 mm, P: 500 mm. Cancelations and returns limited. Consult conditions.

More details


Cabinet enclosures > Enclosure/switchgear cabinet (empty)

POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > Power Distribution Boards SIVACON S4 up to 6.300 A and SICUBE

* Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article is restricted. Please ask us for a quotation and we will check if there are units available or we will offer you an alternative product.

If our price is not the best, please ask us for a quote. Ask for a quotation

More info

▲


Technical data

SIVACON, Control panel Empty enclosure, without side panels, according to IEC 62208, IP40, H: 2200 mm, W: 900 mm, T: 500 mm
Model
product brand nameSIVACON
product designationEmpty control cabinet enclosure
design of the productaccording to IEC 62208
design of the surfacePowder-coated
design of the product / EMC versionNo
Protection class
protection class IPIP40
operating resource protection classSafety class 1
Suitability
suitability for installation / for metric dimensionsYes
suitability for integration
● surface-mounted installationNo
● flush mountingNo
suitability for use / for outside useNo
Appearance
RAL color numberRAL 7035
colorlight grey
Product details
product component
● ventilation doorNo
● mounting plateYes
● rear doorNo
● viewing doorNo
● height-adjustable mounting plateYes
product feature / of the enclosure / housing can be lined upYes
Number
number of locking devices0
number of doors2
Mechanical Design
height2 200 mm
width900 mm
depth500 mm
fastening method
● 19-inch installationNo
● floor mountingYes
● wall mountingNo
materialsteel

Downloads and manuals

General Product ApprovalDeclaration of ConformityTest Certificatesother

Confirmation

EAC

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Special Test Certificate

Miscellaneous

other

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/4/2022


Additional data

Product
Article Number (Market Facing Number)8MF1295-3BR4
Product DescriptionSIVACON, Control panel Empty enclosure, without side panels, according to IEC 62208, IP40, H: 2200 mm, W: 900 mm, T: 500 mm
Product familyComplete Enclosures
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group14V / 1BS
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)150,000 Kg
Packaging Dimension600,00 x 1800,00 x 400,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869541129
UPCNot available
Commodity Code94039910
LKZ_FDB/ CatalogIDLV10
Product Group3799
Group CodeP310
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.09.2016
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationNo
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-18-01-01
eClass7.127-18-01-01
eClass827-18-01-01
eClass927-18-01-01
eClass9.127-18-01-01
ETIM5EC000261
ETIM6EC000261
ETIM7EC000261
ETIM8EC000261

ETIM data

ETIM: EC000261 - Enclosure/switchgear cabinet (empty)

Value Unit
Degree of protection (NEMA) (EF011959) -
Colour (EF000007) -
Material quality (EF001257) -
Width (EF000008) 900.0mm
Height (EF000040) 2200.0mm
Depth (EF000049) 500.0mm
Material (EF002169) Steel
Surface finishing (EF006569) Powder coating
RAL-number (EF000116) 7035
With mounting plate (EF000118) true
Mounting plate depth-adjustable (EF006054) true
Number of locks (EF000123) 0
Floor installation possible (EF009581) true
Wall fastening possible (EF006314) false
Wall build in (EF007536) false
Pole fastening (EF009582) false
Tackable (EF006169) true
Number of doors (EF000122) 2
Suitable for metrical mounting (EF005823) FALSE
Suitable for outdoor set-up (EF005774) false
Pitched roof (EF009278) false
EMC-version (EF001062) false
With glazed door (EF001089) false
With ventilation door (EF006279) false
With backside door (EF007381) false
Impact strength (EF004293) -
Degree of protection (IP) (EF005474) IP40
