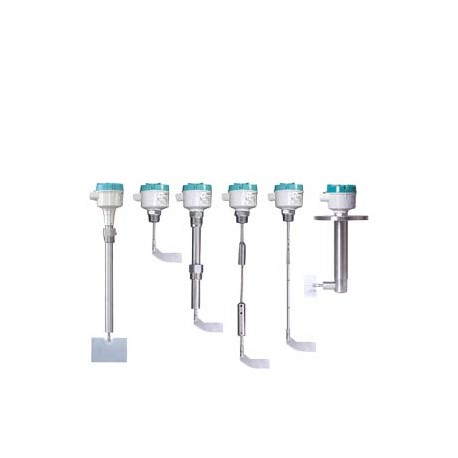

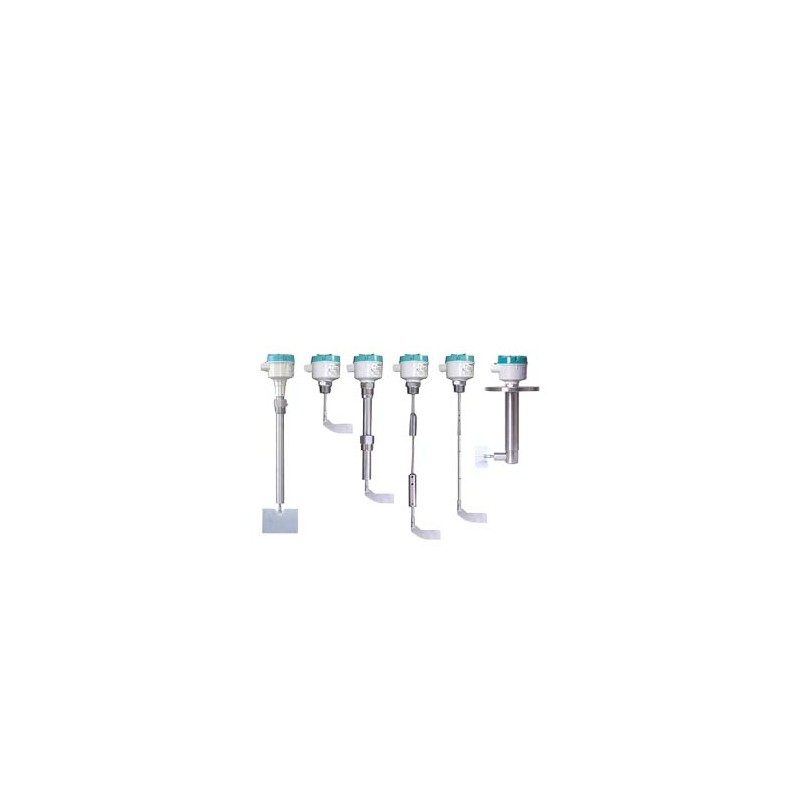

7ML5728-2CB21-2EA0 SIEMENS SITRANS LPS200 Switch. Rotary vane level, angular extension design: level detecti..
7ML5728-2CB21-2EA0
SIEMENS
Product on demand only, returns will not be accepted.
SITRANS LPS200 Switch. Rotary vane level, angular extension design: level detection in aggressive applications. Bottom or side mounting, variant with axle with protection. Optional extensions up to 300 mm (11.81 inch). process temperature: Up to 150 C (302 F) auxiliary power: AC 230 V, 5 1/min Process connection to flange assembly DN100 PN16, EN1092-1 (1.4541/321) process pressure: Up to 5 bar (72.5 psi) Process connection material: Stainless steel, mat no. 1.4305, 1.4541 (303/321) Extension: 150 mm (5.91 inches) Measuring Blade: Rectangular Blade, 98 x 250 mm (3.86 x 9.84 inches) Approvals: CSA/FM Protected for Explosive Dust Atmosphere, C-TICK
SITRANS LPS200 Rotary paddle point level switch, angled extension design: level detection in aggressive applications. Bottom or side mount with enhanced shaft protection. Extension options to 300 mm (11.81 inch). Process temperature: Up to +150 C (+302 F) Power supply: 230 V AC, 5 rev/min. Process connection Flanged: DN100 PN 16, EN1092-1 flat faced(1.4541/321) Process pressure: Up to 5 bar (72.5 psi) Process connection material: Stainless steel 303/321 (1.4305/1.4541) Extension length: 150 mm (5.91 inch) Measuring vane: Rectangular vane 98 x 250 mm (3.86 x 9.84 inch) Approvals: CSA/FM Dust Ignition Proof, RCM .
SENSORS AND COMMUNICATIONS > Non-ultrasonic level measuring equipment
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Product | ||||||||||||||||||||||
| Article Number (Market Facing Number) | 7ML5728-2CB21-2EA0 | |||||||||||||||||||||
| Product Description | SITRANS LPS200 Rotary paddle point level switch, angled extension design: level detection in aggressive applications. Bottom or side mount with enhanced shaft protection. Extension options to 300 mm (11.81 inch). Process temperature: Up to +150 C (+302 F) Power supply: 230 V AC, 5 rev/min. Process connection Flanged: DN100 PN 16, EN1092-1 flat faced(1.4541/321) Process pressure: Up to 5 bar (72.5 psi) Process connection material: Stainless steel 303/321 (1.4305/1.4541) Extension length: 150 mm (5.91 inch) Measuring vane: Rectangular vane 98 x 250 mm (3.86 x 9.84 inch) Approvals: CSA/FM Dust Ignition Proof, RCM . | |||||||||||||||||||||
| Product family | Not available | |||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||
| Price data | ||||||||||||||||||||||
| Price Group | 8LO | |||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||
| Export Control Regulations | ECCN : N / AL : N | |||||||||||||||||||||
| Standard lead time ex-works | 15 Day/Days | |||||||||||||||||||||
| Net Weight (kg) | 1,800 Kg | |||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | |||||||||||||||||||||
| Packaging Dimension | Not available | |||||||||||||||||||||
| Package size unit of measure | Not available | |||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||
| EAN | Not available | |||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||
| Commodity Code | 90318080 | |||||||||||||||||||||
| LKZ_FDB/ CatalogID | FI01-4 | |||||||||||||||||||||
| Product Group | 4723 | |||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 20.07.2017 | |||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||
| Classifications | ||||||||||||||||||||||
| ||||||||||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE PROCESS INSTRUMENTATION SIEMENS EN.pdf | 115 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
