SIEMENSSENSORS AND COMMUNICATIONSNON-ULTRASONIC LEVEL MEASURING EQUIPMENT7ML5728-2CA11-5EA0 SIEMENS SITRANS LPS200 Switch. Rotary vane level, angular extension design: level detecti..

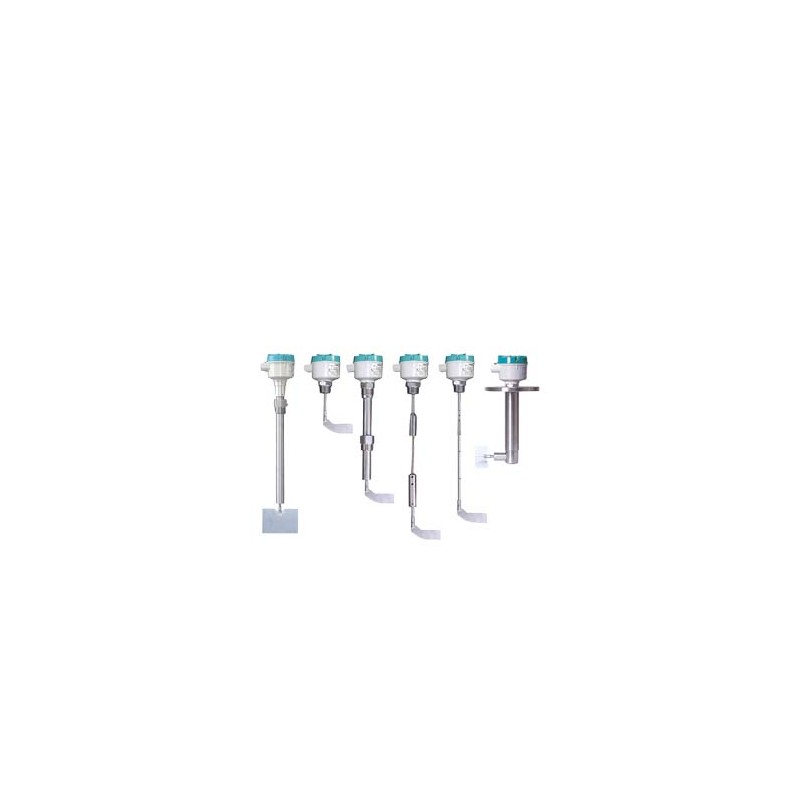

SIEMENS 7ML5728-2CA11-5EA0 7ML5728-2CA11-5EA0 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

7ML5728-2CA11-5EA0 SIEMENS SITRANS LPS200 Switch. Rotary vane level, angular extension design: level detecti..

Reference: 7ML5728-2CA11-5EA0

Manufacturer: SIEMENS

Product on demand only, returns will not be accepted.

Description:

SITRANS LPS200 Switch. Rotary vane level, angular extension design: level detection in aggressive applications. Bottom or side mounting, variant with axle with protection. Optional extensions up to 300 mm (11.81 inch). process temperature: Up to 150 C (302 F) auxiliary power: AC 230 V, 5 1/min connection to the process flanged assembly: DN100 PN6, EN1092-1 (1.4541/321) process pressure: Up to 0.5 bar (7.25 psi) Material connection to the process: Stainless steel, no. mat. 1.4305, 1.4541 (303/321) Extension: 300 mm (11.81 inches) Measuring Blade: Rectangular Blade, 98 x 250 mm (3.86 x 9.84 inches) Approvals: CSA/FM Protected for Explosive Dust Atmosphere, C-TICK
. SITRANS LPS200 Rotary vane level switch, design with angular extension: level detection in aggressive applications. Bottom or side mounting, variant with axle with protection. Optional extensions up to 300 mm (11.81 inch). process temperature: Up to 150 C (302 F) auxiliary power: AC 230 V, 5 1/min connection to the process flanged assembly: DN100 PN6, EN1092-1 (1.4541/321) process pressure: Up to 0.5 bar (7.25 psi) Material connection to the process: Stainless steel, no. mat. 1.4305, 1.4541 (303/321) Extension: 300 mm (11.81 inches) Measuring Blade: Rectangular Blade, 98 x 250 mm (3.86 x 9.84 inches) Approvals: CSA/FM Protected for Explosive Dust Atmosphere, C-TICK
SITRANS LPS200 Rotary paddle point level switch, angled extension design: level detection in aggressive applications. Bottom or side mount with enhanced shaft protection. Extension options to 300 mm (11.81 inch). Process temperature: Up to +150 C (+302 F) Power supply: 230 V AC, 5 rev/min. Process connection Flanged: DN100 PN 6, EN1092-1, flat faced (1.4541/321) Process pressure: Up to 0.5 bar (7.25 psi) Process connection material: Stainless steel 303/321 (1.4305/1.4541) Extension length: 300 mm (11.81 inch) Measuring vane: Rectangular vane 98 x 250 mm (3.86 x 9.84 inch) Approvals: CSA/FM Dust Ignition Proof, RCM .

Categories:

  • SIEMENS > SENSORS AND COMMUNICATIONS > Non-ultrasonic level measuring equipment

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 1.571,62 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Product
Article Number (Market Facing Number) 7ML5728-2CA11-5EA0
Product Description SITRANS LPS200 Rotary paddle point level switch, angled extension design: level detection in aggressive applications. Bottom or side mount with enhanced shaft protection. Extension options to 300 mm (11.81 inch). Process temperature: Up to +150 C (+302 F) Power supply: 230 V AC, 5 rev/min. Process connection Flanged: DN100 PN 6, EN1092-1, flat faced (1.4541/321) Process pressure: Up to 0.5 bar (7.25 psi) Process connection material: Stainless steel 303/321 (1.4305/1.4541) Extension length: 300 mm (11.81 inch) Measuring vane: Rectangular vane 98 x 250 mm (3.86 x 9.84 inch) Approvals: CSA/FM Dust Ignition Proof, RCM .
Product family Not available
Product Lifecycle (PLM) PM300:Active Product
Price data
Price Group 8LO
Surcharge for Raw Materials None
Metal Factor None
Delivery information
Export Control Regulations ECCN : N / AL : N
Standard lead time ex-works 15 Day/Days
Net Weight (kg) 1,800 Kg
Product Dimensions (W x L x H) Not available
Packaging Dimension Not available
Package size unit of measure Not available
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN Not available
UPC Not available
Commodity Code 90318080
LKZ_FDB/ CatalogID FI01-4
Product Group 4723
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 20.07.2017
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
Version Classification
eClass 5.1 27-20-05-91
eClass 6 27-20-05-91
eClass 7.1 27-20-05-91
eClass 8 27-20-05-91
eClass 9 27-20-05-91
eClass 9.1 27-20-05-91
