SIEMENSSENSORS AND COMMUNICATIONSNON-ULTRASONIC LEVEL MEASURING EQUIPMENT7ML5728-2AB11-1DA0 SIEMENS SITRANS LPS200 Switch. Rotary vane level, angular extension design: level detecti..

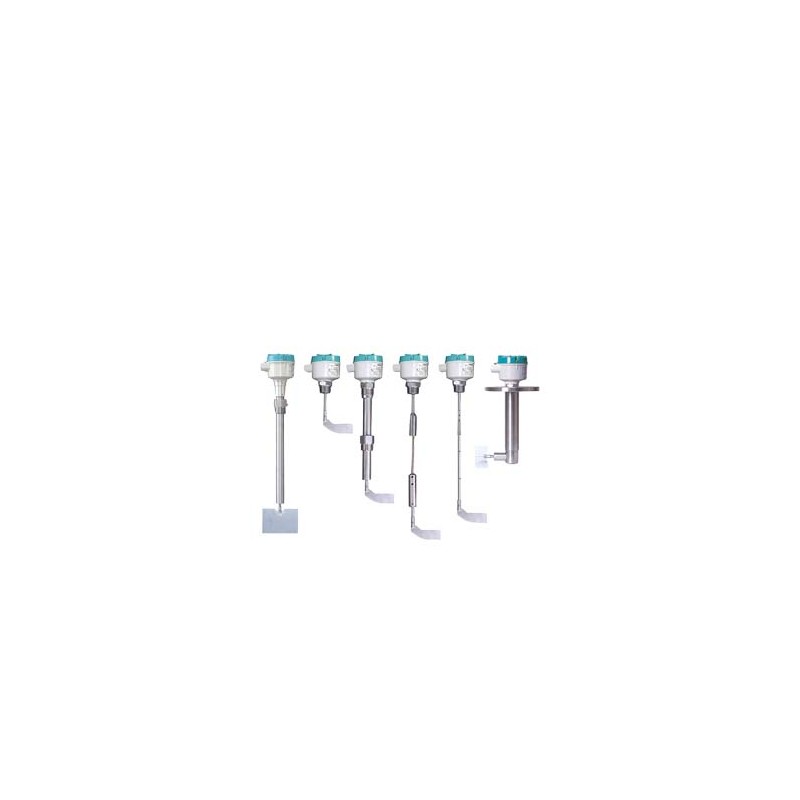

SIEMENS 7ML5728-2AB11-1DA0 7ML5728-2AB11-1DA0 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

7ML5728-2AB11-1DA0 SIEMENS SITRANS LPS200 Switch. Rotary vane level, angular extension design: level detecti..

Reference: 7ML5728-2AB11-1DA0

Manufacturer: SIEMENS

Product on demand only, returns will not be accepted.

Description:

SITRANS LPS200 Switch. Rotary vane level, angular extension design: level detection in aggressive applications. Bottom or side mounting, variant with axle with protection. Optional extensions up to 300 mm (11.81 inch). process temperature: Up to 150 C (302 F) auxiliary power: AC 230 V, 1 1/min Process connection to flanged assembly DN100 PN16, EN1092-1 (1.4541/321) process pressure: Up to 0.5 bar (7.25 psi) Process connection material: Stainless steel, mat no. 1.4305, 1.4541 (303/321) Extension: 125 mm (4.92 inches) Measuring Blade: Rectangular Blade, 98 x 150 mm (3.86 x 5.91 inches) Approvals: CSA/FM Protected for Explosive Dust Atmosphere, C-TICK
. SITRANS LPS200 Rotary vane level switch, design with angular extension: level detection in aggressive applications. Bottom or side mounting, variant with axle with protection. Optional extensions up to 300 mm (11.81 inch). process temperature: Up to 150 C (302 F) auxiliary power: AC 230 V, 1 1/min Process connection to flanged assembly DN100 PN16, EN1092-1 (1.4541/321) process pressure: Up to 0.5 bar (7.25 psi) Process connection material: Stainless steel, mat no. 1.4305, 1.4541 (303/321) Extension: 125 mm (4.92 inches) Measuring Blade: Rectangular Blade, 98 x 150 mm (3.86 x 5.91 inches) Approvals: CSA/FM Protected for Explosive Dust Atmosphere, C-TICK

Categories:

  • SIEMENS > SENSORS AND COMMUNICATIONS > Non-ultrasonic level measuring equipment

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

  • More Info
  • Reviews
Guarantee, repair and return.

Unit Price: 1.549,72 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 2 weeks.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

product
Item number (market number) 7ML5728-2AB11-1DA0
Product description SITRANS LPS200 Switch. Rotary vane level, angular extension design: level detection in aggressive applications. Bottom or side mounting, variant with axle with protection. Optional extensions up to 300 mm (11.81 inch). process temperature: Up to 150 C (302 F) auxiliary power: AC 230 V, 1 1/min Process connection to flanged assembly DN100 PN16, EN1092-1 (1.4541/321) process pressure: Up to 0.5 bar (7.25 psi) Process connection material: Stainless steel, mat no. 1.4305, 1.4541 (303/321) Extension: 125 mm (4.92 inches) Measuring Blade: Rectangular Blade, 98 x 150 mm (3.86 x 5.91 inches) Approvals: CSA/FM Protected for Explosive Dust Atmosphere, C-TICK
Product family unavailable
Product Lifecycle (PLM) PM300:Active product
Price data
Price group / House and local price group 39J/8LO
Metal factor none
Delivery information
Export control regulations ECCN : N / AL : N
Delivery time 15 Day/Days
Net weight (kg) 1,800 Kg
Product Dimensions (W x L x H) unavailable
Packaging dimension unavailable
Unit of measurement package size unavailable
Unit of measurement 1 piece
Quantity per package 1
Additional product information
Ean unavailable
Upc unavailable
Commodity code 90318080
LKZ_FDB/ CatalogID FI01-4
Product group 4723
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive RoHS compliant since: 07/20/17
Product class C: manufactured products produced on demand, which cannot be reused or re-utilised or returned against credit.
Mandatory category of return of electrical and electronic equipment after use Yes
REACH Art. 33 Duty to inform according to the current list of candidates
Aus der Lieferkette und den von uns etablierten Verfahren zur Überprüfung unserer Erzeugnisse auf besorgniserregende Stoffe liegen derzeit keine Informationen zu SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) vor. Wir gleichen unsere Erzeugnisse regelmäßig entsprechend den Erfordernissen der REACH-Verordnung mit uns vorliegenden Informationen der vorgeschalteten Anwender bezüglich der in der Kandidatenliste angegebenen Stoffe ab. Sobald uns neue Erkenntnisse vorliegen, werden unsere Informationen an Sie entsprechend aktualisiert.
Classifications
version classification
eClass 5.1 27-20-05-91
eClass 6 27-20-05-91
eClass 7.1 27-20-05-91
eClass 8 27-20-05-91
eClass 9 27-20-05-91
eClass 9.1 27-20-05-91
