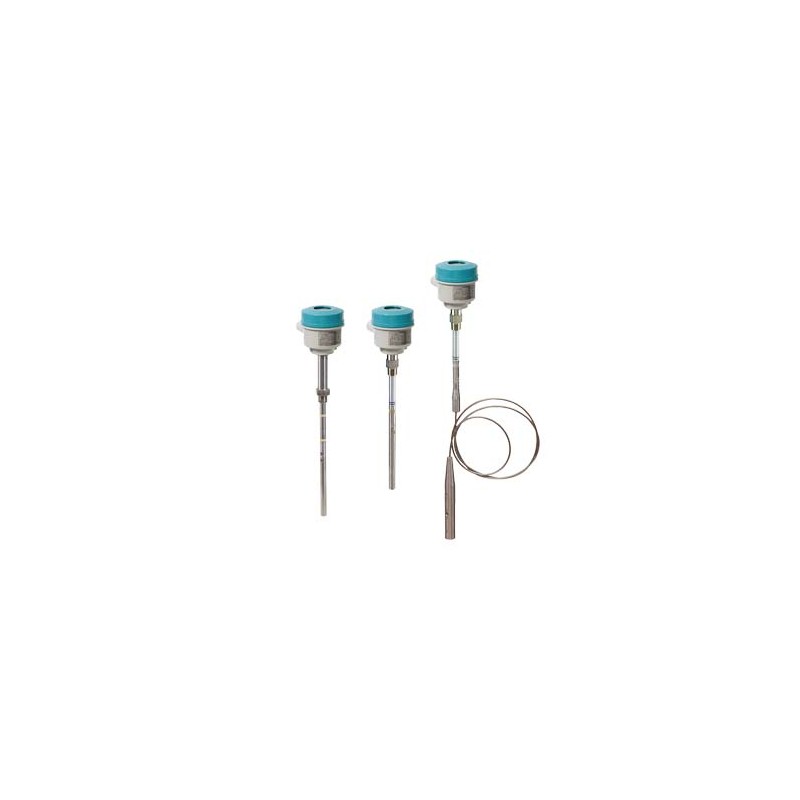

7ML5662-6EC00-0JB1 SIEMENS Pointek CLS300 Digital, High Temperature Rod Version with Threaded Connection or ..

Pointek CLS300 - Digital, High Temperature Rod Version with Threaded Connection or Process Flange Connection: Capacitive, versatile with Inverse Frequency Frequency Shift, with optional rod/cable probes and configurable output. It is ideal for the detection of liquids, granular solids, mud, foam and interfaces under conditions of difficult use conditions with high pressure and elevated temperatures. Process connection: Welded flange, stainless steel, mat no. 1.4404/316L, flat flange type A: DN 50, PN 16 Probe length: (length from flange face) Rod extension, length 750 mm (29.53") Process side joints: Graphite Probe material: stainless steel, mat no. 1.4404/316L with ceramic insulators Approvals: General purpose (CSA, FM, CE, C-TICK) Case and lid: aluminum, epoxy coated, 2 x M20 x 1.5 Cab

. Pointek CLS300 RF Capacitive Level Switch, Digital, High Temperature Variant. Level and level/interface detection of aggressive liquids, solids, slurries and foam. Insertion length 1 m (3.28 ft) adjustable, sensitivity adjustable, with Active Shield technology to ignore buildup in the probe. With digital indication and communication module. Process connection: Welded flange, stainless steel, mat no. 1.4404/316L, flat flange type A: DN 50, PN 16 Probe length: (length from flange face) Rod extension, length 750 mm (29.53") Process side joints: Graphite Probe material: stainless steel, mat no. 1.4404/316L with ceramic insulators Approvals: General purpose (CSA, FM, CE, C-TICK) Case and lid: aluminum, epoxy coated, 2 x M20 x 1.5 Cable entry, IP65 Active Shield length: Extended display - (2

Pointek CLS300 - Digital - High Temp Version with Threaded or Flanged process connection: Inverse frequency shift capacitance level switch with optional rod/cable choices and configurable output. It is ideal for detecting liquids, solids, slurries, foam and interfaces in demanding conditions where high pressure and temperatures are present. Process Connection: Welded flange, 316L stainless steel, Type A flat faced: DN 50, PN 16 Probe Length: (Lengths from flange face) Extended rod, length 750 mm (29.53") . Wetted Seals: Graphite Probe Material: 316L Stainless Steel with Ceramic Isolators Approvals: General Purpose (CSA, FM, CE, C-TICK) Enclosure and Lid: Aluminum epoxy coated 2 x M20 x 1.5 cable inlet, IP65 Active Shield Length: Extended Shield - (250 mm threaded, 230 mm flanged)
