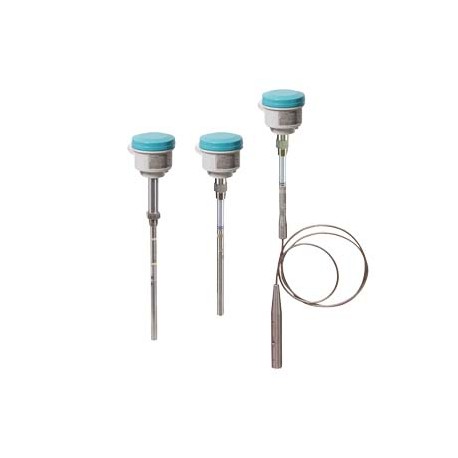

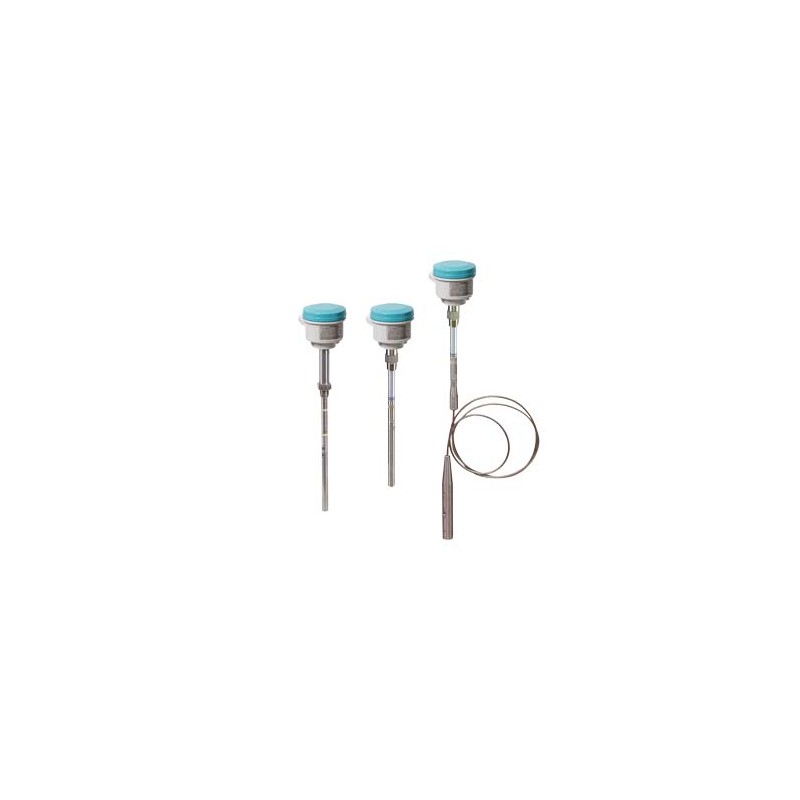

7ML5652-6EC00-0FA0 SIEMENS Pointek CLS300 RF Switch. capacitive level, variant for high temperatures. Level ..

Pointek CLS300 RF Switch. capacitive level, variant for high temperatures. Level and level/interface detection of aggressive liquids, solids, slurries and foam. Insertion length 1 m (3.28 ft) adjustable, sensitivity adjustable, with Active Shield technology to ignore buildup in the probe. Process connection: Welded flange, stainless steel, mat no. 1.4404/316L, flat flange type A: DN 50, PN 16 Special version: (length from flange face) Rod extension, length 750 mm (29.53") Seals on the process side: Graphite Probe material: stainless steel, mat no. 1.4404/316L with ceramic insulators approvals: Ex protection for dust with intrinsically safe (IS) probe: CSA/FM Class II, Div.1, tam. E, F, G, CSA/FM Class III T4 Case & Lid: Aluminum, Epoxy Coated, 2 x 1/2" NPT via Adapter - Cable Entry,

Pointek CLS300 RF Capacitance point level switch, high temperature design. Detects level and interface in aggressive liquids, solids, slurries, and foam. Adjustable, 1 m (3.28 ft), insertion, adaptable sensitivity, with active shield to tune out build-up on probe. Process Connection: Welded flange, 316L (1.4404) stainless steel, Type A flat faced: DN 50, PN 16 Probe Length: (Lengths from flange face) Extended rod, length 750 mm (29.53") . Wetted Seals: Graphite Probe Material: 316L Stainless Steel with Ceramic Isolators Approvals: Dust Ignition Proof with IS Probe: CSA/FM Class II, Div.1, Gr. E, F, G, CSA/FM Class III T4 Enclosure and Lid: Aluminum epoxy coated 2 x 1/2" NPT via adapter - cable inlet, IP65 Active Shiled Length: Standard length - (125 mm threaded, 105 mm flanged)
