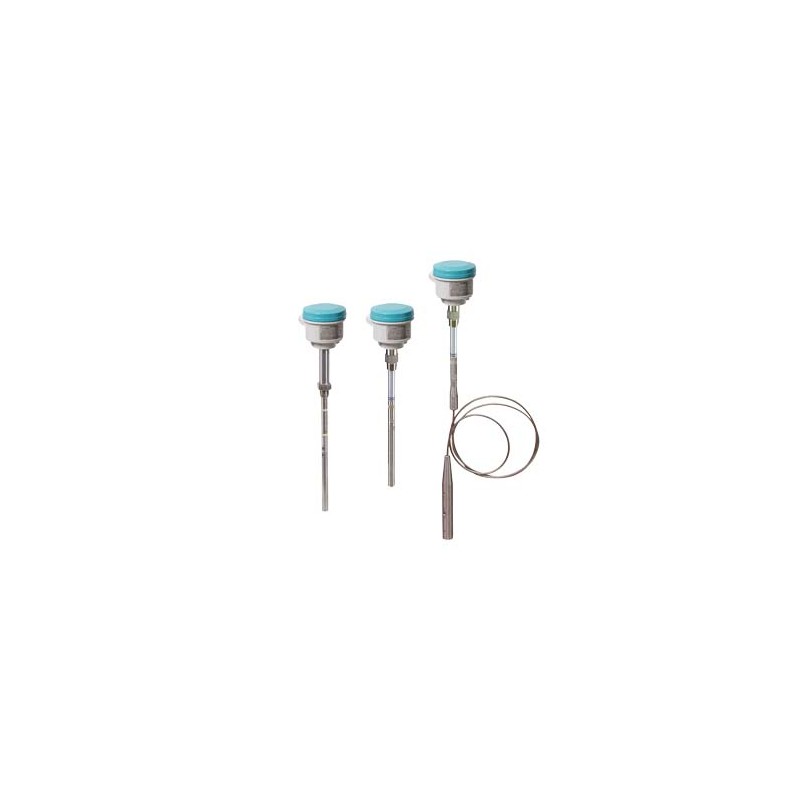

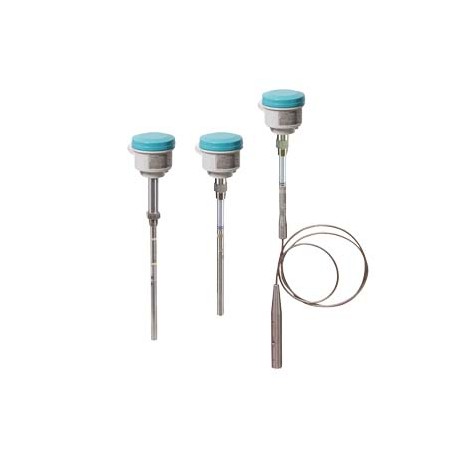

7ML5652-6EC00-0EC1 SIEMENS Pointek CLS300 RF Switch. capacitive level, variant for high temperatures. Level ..

Pointek CLS300 RF Switch. capacitive level, variant for high temperatures. Level and level/interface detection of aggressive liquids, solids, slurries and foam. Insertion length 1 m (3.28 ft) adjustable, sensitivity adjustable, with Active Shield technology to ignore buildup in the probe. Process connection: Welded flange, stainless steel, mat no. 1.4404/316L, flat flange type A: DN 50, PN 16 Special version: (length from flange face) Rod extension, length 750 mm (29.53") Seals on the process side: Graphite Probe material: stainless steel, mat no. 1.4404/316L with ceramic insulators Approvals: Explosion-proof, fire-resistant enclosure with intrinsic safety probe (IS) probe, with WHG APPROVAL: CE, C-TICK, ATEX II 1/2 G EEx d(ia) IIC T6... T1, ATEX II 1/2 D T100 C Case & Lid: Aluminum,

Pointek CLS300 RF Capacitance point level switch, high temperature design. Detects level and interface in aggressive liquids, solids, slurries, and foam. Adjustable, 1 m (3.28 ft), insertion, adaptable sensitivity, with active shield to tune out build-up on probe. Process Connection: Welded flange, 316L (1.4404) stainless steel, Type A flat faced: DN 50, PN 16 Probe Length: (Lengths from flange face) Extended rod, length 750 mm (29.53") . Wetted Seals: Graphite Probe Material: 316L Stainless Steel with Ceramic Isolators Approvals: Dust Ignition Proof with IS Probe With WHG Approval: CE, C-TICK, ATEX II 1/2 G EEx d(ia) IIC T6...T1, ATEX II 1/2 D T100 C Enclosure and Lid: Aluminum epoxy coated 2 x 1/2" NPT via adapter - cable inlet, IP68 Active Shiled Length: Extended Shield - (250 mm thre
