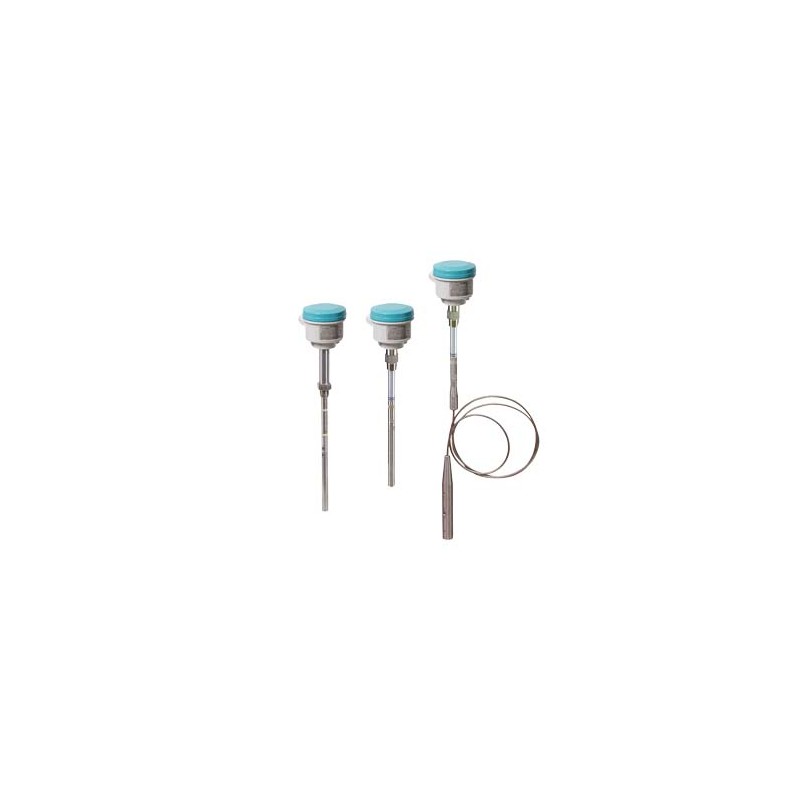

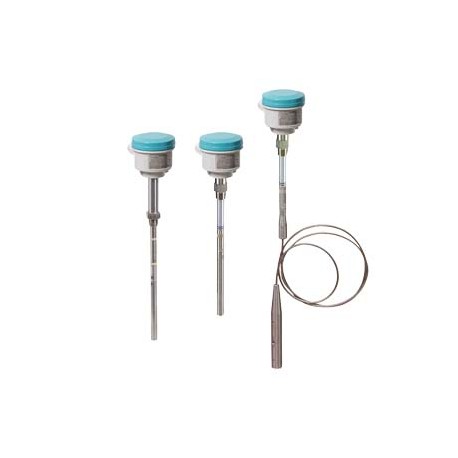

7ML5652-5EC00-0HD0 SIEMENS Pointek CLS300 RF Switch. capacitive level, variant for high temperatures. Level ..

Pointek CLS300 RF Switch. capacitive level, variant for high temperatures. Level and level/interface detection of aggressive liquids, solids, slurries and foam. Insertion length 1 m (3.28 ft) adjustable, sensitivity adjustable, with Active Shield technology to ignore buildup in the probe. Process connection: Welded flange, Stainless steel, mat no. 1.4404/316L, with: ASME 1 1/2" Sealed Slat, 300 lb Special Version: (length from flange face) Rod extension, length 750 mm (29.53") Process side seals: Graphite Probe material: stainless steel, mat no. 1.4404/316L with ceramic insulators Approvals: General purpose (CSA, FM) Case and lid: aluminum, epoxy coated, 2 x M20 x 1.5 Cable entry, IP68 Active Shield length: Standard length - (125 mm thread, 105 mm flange)

Pointek CLS300 RF Capacitance point level switch, high temperature design. Detects level and interface in aggressive liquids, solids, slurries, and foam. Adjustable, 1 m (3.28 ft), insertion, adaptable sensitivity, with active shield to tune out build-up on probe. Process Connection: Welded flange, 316L (1.4404) stainless steel, raised face: 1 1/2" ASME, 300 lb Probe Length: (Lengths from flange face) Extended rod, length 750 mm (29.53") . Wetted Seals: Graphite Probe Material: 316L Stainless Steel with Ceramic Isolators Approvals: General Purpose (CSA, FM) Enclosure and Lid: Aluminum epoxy coated 2 x M20 x 1.5 cable inlet, IP68 Active Shiled Length: Standard length - (125 mm threaded, 105 mm flanged)
