SIEMENSSENSORS AND COMMUNICATIONSNON-ULTRASONIC LEVEL MEASURING EQUIPMENT7ML5652-5EC00-0EC2 SIEMENS Pointek CLS300 RF Switch. capacitive level, variant for high temperatures. Level ..

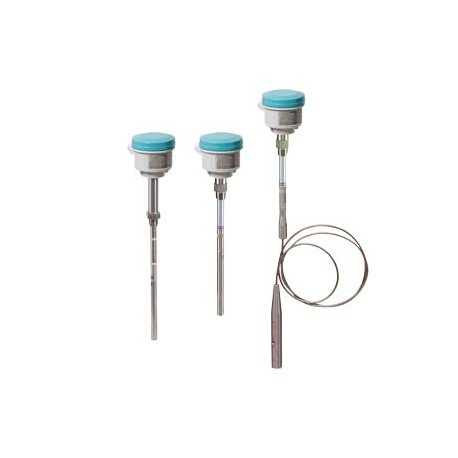

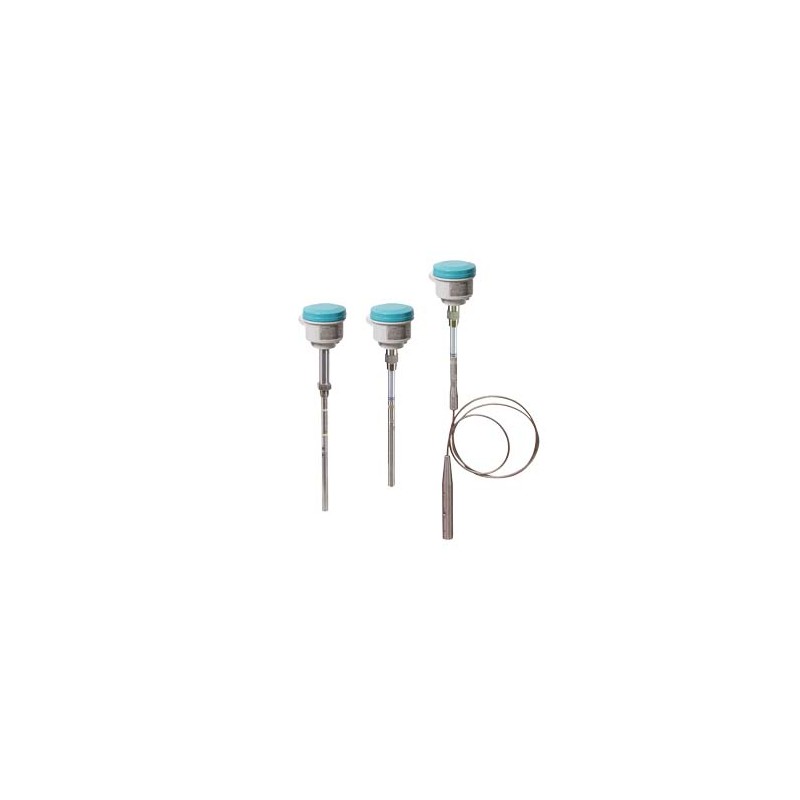

SIEMENS 7ML5652-5EC00-0EC2 7ML5652-5EC00-0EC2 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

7ML5652-5EC00-0EC2 SIEMENS Pointek CLS300 RF Switch. capacitive level, variant for high temperatures. Level ..

Reference: 7ML5652-5EC00-0EC2

Manufacturer: SIEMENS

Product on demand only, returns will not be accepted.

Description:

Pointek CLS300 RF Switch. capacitive level, variant for high temperatures. Level and level/interface detection of aggressive liquids, solids, slurries and foam. Insertion length 1 m (3.28 ft) adjustable, sensitivity adjustable, with Active Shield technology to ignore buildup in the probe. Process connection: Welded flange, Stainless steel, mat no. 1.4404/316L, with: ASME 1 1/2" Sealed Slat, 300 lb Special Version: (length from flange face) Rod extension, length 750 mm (29.53") Process side seals: Graphite Probe material: stainless steel, mat no. 1.4404/316L with ceramic insulators Approvals: Explosion-proof, fire-resistant enclosure with intrinsic safety probe (IS) probe, with WHG APPROVAL: CE, C-TICK, ATEX II 1/2 G EEx d(ia) IIC T6... T1, ATEX II 1/2 D T100 C Case and lid: aluminum, epo
. Pointek CLS300 RF Capacitive Level Switch, High Temperature Variant. Level and level/interface detection of aggressive liquids, solids, slurries and foam. Insertion length 1 m (3.28 ft) adjustable, sensitivity adjustable, with Active Shield technology to ignore buildup in the probe. Process connection: Welded flange, Stainless steel, mat no. 1.4404/316L, with: ASME 1 1/2" Sealed Slat, 300 lb Special Version: (length from flange face) Rod extension, length 750 mm (29.53") Process side seals: Graphite Probe material: stainless steel, mat no. 1.4404/316L with ceramic insulators Approvals: Explosion-proof, fire-resistant enclosure with intrinsic safety probe (IS) probe, with WHG APPROVAL: CE, C-TICK, ATEX II 1/2 G EEx d(ia) IIC T6... T1, ATEX II 1/2 D T100 C Case and lid: aluminum, epoxy c
Pointek CLS300 RF Capacitance point level switch, high temperature design. Detects level and interface in aggressive liquids, solids, slurries, and foam. Adjustable, 1 m (3.28 ft), insertion, adaptable sensitivity, with active shield to tune out build-up on probe. Process Connection: Welded flange, 316L (1.4404) stainless steel, raised face: 1 1/2" ASME, 300 lb Probe Length: (Lengths from flange face) Extended rod, length 750 mm (29.53") . Wetted Seals: Graphite Probe Material: 316L Stainless Steel with Ceramic Isolators Approvals: Dust Ignition Proof with IS Probe With WHG Approval: CE, C-TICK, ATEX II 1/2 G EEx d(ia) IIC T6...T1, ATEX II 1/2 D T100 C Enclosure and Lid: Aluminum epoxy coated 2 x 1/2" NPT via adapter - cable inlet, IP68 Active Shiled Length: Extended Shield - (400 mm thr

Categories:

  • SIEMENS > SENSORS AND COMMUNICATIONS > Non-ultrasonic level measuring equipment

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

MORE INFO

Product
Article Number (Market Facing Number) 7ML5652-5EC00-0EC2
Product Description Pointek CLS300 RF Capacitance point level switch, high temperature design. Detects level and interface in aggressive liquids, solids, slurries, and foam. Adjustable, 1 m (3.28 ft), insertion, adaptable sensitivity, with active shield to tune out build-up on probe. Process Connection: Welded flange, 316L (1.4404) stainless steel, raised face: 1 1/2" ASME, 300 lb Probe Length: (Lengths from flange face) Extended rod, length 750 mm (29.53") . Wetted Seals: Graphite Probe Material: 316L Stainless Steel with Ceramic Isolators Approvals: Dust Ignition Proof with IS Probe With WHG Approval: CE, C-TICK, ATEX II 1/2 G EEx d(ia) IIC T6...T1, ATEX II 1/2 D T100 C Enclosure and Lid: Aluminum epoxy coated 2 x 1/2" NPT via adapter - cable inlet, IP68 Active Shiled Length: Extended Shield - (400 mm threaded, 380 mm flanged)
Product family Not available
Product Lifecycle (PLM) PM300:Active Product
Price data
Price Group 8L3
Surcharge for Raw Materials None
Metal Factor None
Delivery information
Export Control Regulations ECCN : EAR99 / AL : N
Standard lead time ex-works On request
Net Weight (kg) 2,000 Kg
Product Dimensions (W x L x H) Not available
Packaging Dimension Not available
Package size unit of measure Not available
Quantity Unit 1 Piece
Packaging Quantity 1
Additional Product Information
EAN Not available
UPC Not available
Commodity Code 90261029
LKZ_FDB/ CatalogID FI01-4
Product Group 4717
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive Since: 20.07.2017
Product class C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back Obligation Yes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
Version Classification
eClass 5.1 27-20-05-03
eClass 6 27-20-05-03
eClass 7.1 27-20-05-03
eClass 8 27-20-05-03
eClass 9 27-20-05-03
eClass 9.1 27-20-05-03
