SIEMENSSENSORS AND COMMUNICATIONSNON-ULTRASONIC LEVEL MEASURING EQUIPMENT7ML5652-1BD00-0DB2 SIEMENS Pointek CLS300 RF Switch. capacitive level, variant for high temperatures. Level ..

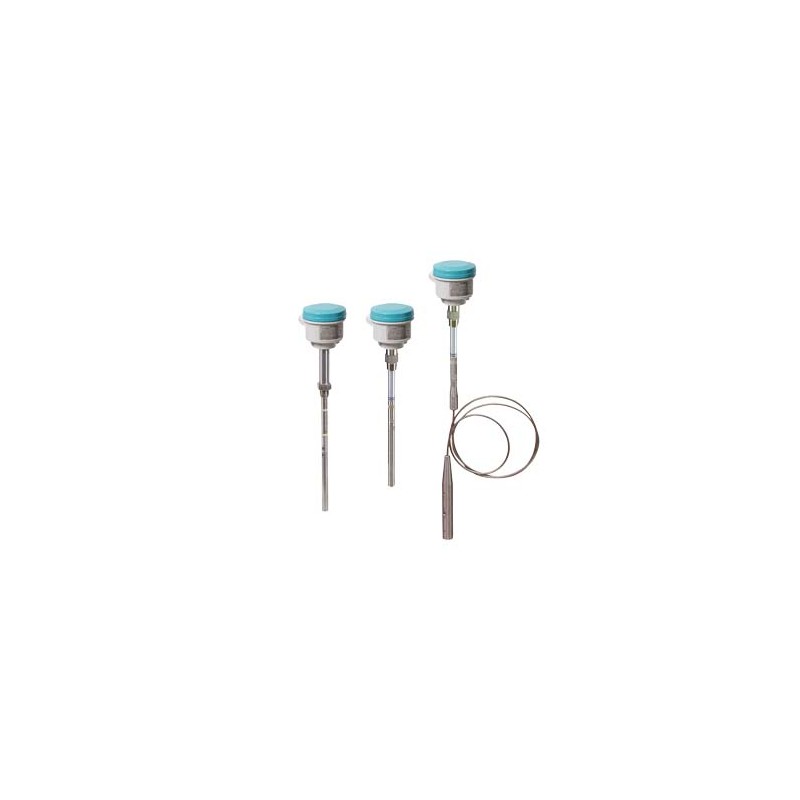

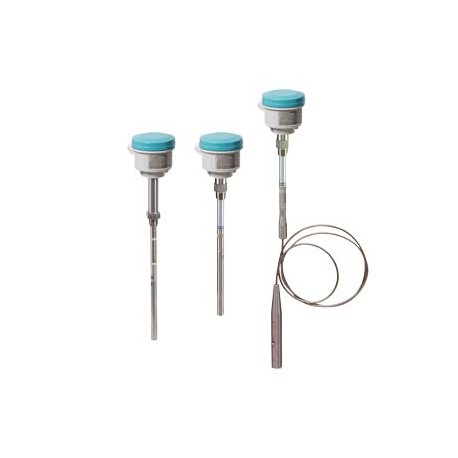

SIEMENS 7ML5652-1BD00-0DB2 7ML5652-1BD00-0DB2 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

7ML5652-1BD00-0DB2 SIEMENS Pointek CLS300 RF Switch. capacitive level, variant for high temperatures. Level ..

Reference: 7ML5652-1BD00-0DB2

Manufacturer: SIEMENS

Product on demand only, returns will not be accepted.

Description:

Pointek CLS300 RF Switch. capacitive level, variant for high temperatures. Level and level/interface detection of aggressive liquids, solids, slurries and foam. Insertion length 1 m (3.28 ft) adjustable, sensitivity adjustable, with Active Shield technology to ignore buildup in the probe. Process connection: R 1" (BSPT), EN 10226/PT (JIS-T), JIS B 0203 Special version: (length from flange face) Rod extension, length 1000 mm (39.37") Seals on the process side: Graphite Probe material: stainless steel, mat no. 1.4404/316L with ceramic insulators Approvals: Explosion-proof, fire-resistant enclosure with intrinsic safety probe (IS) CE probe, C-tick, ATEX II 1/2 G EEx d(ia) IIC T6... T1, ATEX II 1/2 D T100 C Case & Lid: Aluminium, Epoxy Coated, 2 x M20 x 1.5 Cable Entry, IP65 Active Shiel
. Pointek CLS300 RF Capacitive Level Switch, High Temperature Variant. Level and level/interface detection of aggressive liquids, solids, slurries and foam. Insertion length 1 m (3.28 ft) adjustable, sensitivity adjustable, with Active Shield technology to ignore buildup in the probe. Process connection: R 1" (BSPT), EN 10226/PT (JIS-T), JIS B 0203 Special version: (length from flange face) Rod extension, length 1000 mm (39.37") Seals on the process side: Graphite Probe material: stainless steel, mat no. 1.4404/316L with ceramic insulators Approvals: Explosion-proof, fire-resistant enclosure with intrinsic safety probe (IS) CE probe, C-tick, ATEX II 1/2 G EEx d(ia) IIC T6... T1, ATEX II 1/2 D T100 C Case & Lid: Aluminium, Epoxy Coated, 2 x M20 x 1.5 Cable Entry, IP65 Active Shield Le

Categories:

  • SIEMENS > SENSORS AND COMMUNICATIONS > Non-ultrasonic level measuring equipment

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

  • More Info
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

LAST VIEWED

MORE INFO

product
Item number (market number) 7ML5652-1BD00-0DB2
Product description Pointek CLS300 RF Switch. capacitive level, variant for high temperatures. Level and level/interface detection of aggressive liquids, solids, slurries and foam. Insertion length 1 m (3.28 ft) adjustable, sensitivity adjustable, with Active Shield technology to ignore buildup in the probe. Process connection: R 1" (BSPT), EN 10226/PT (JIS-T), JIS B 0203 Special version: (length from flange face) Rod extension, length 1000 mm (39.37") Seals on the process side: Graphite Probe material: stainless steel, mat no. 1.4404/316L with ceramic insulators Approvals: Explosion-proof, fire-resistant enclosure with intrinsic safety probe (IS) CE probe, C-tick, ATEX II 1/2 G EEx d(ia) IIC T6... T1, ATEX II 1/2 D T100 C Case & Lid: Aluminium, Epoxy Coated, 2 x M20 x 1.5 Cable Entry, IP65 Active Shield Length: Enlarged Display - (400 mm Thread, 380 mm Flange)
Product family unavailable
Product Lifecycle (PLM) PM300:Active product
Price data
Price group / House and local price group 39J/8L3
Metal factor none
Delivery information
Export control regulations ECCN : EAR99 / AL : N
Delivery time 13 Day/Days
Net weight (kg) 2,000 Kg
Product Dimensions (W x L x H) unavailable
Packaging dimension unavailable
Unit of measurement package size unavailable
Unit of measurement 1 piece
Quantity per package 1
Additional product information
Ean unavailable
Upc unavailable
Commodity code 90261029
LKZ_FDB/ CatalogID FI01-4
Product group 4717
Country of origin Germany
Compliance with the substance restrictions according to RoHS directive RoHS compliant since: 07/20/17
Product class C: manufactured products produced on demand, which cannot be reused or re-utilised or returned against credit.
Mandatory category of return of electrical and electronic equipment after use Yes
REACH Art. 33 Duty to inform according to the current list of candidates
Aus der Lieferkette und den von uns etablierten Verfahren zur Überprüfung unserer Erzeugnisse auf besorgniserregende Stoffe liegen derzeit keine Informationen zu SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) vor. Wir gleichen unsere Erzeugnisse regelmäßig entsprechend den Erfordernissen der REACH-Verordnung mit uns vorliegenden Informationen der vorgeschalteten Anwender bezüglich der in der Kandidatenliste angegebenen Stoffe ab. Sobald uns neue Erkenntnisse vorliegen, werden unsere Informationen an Sie entsprechend aktualisiert.
Classifications
version classification
eClass 5.1 27-20-05-03
eClass 6 27-20-05-03
eClass 7.1 27-20-05-03
eClass 8 27-20-05-03
eClass 9 27-20-05-03
eClass 9.1 27-20-05-03

DATASHEET - PDF

Title
Size
Type
PDF CATALOGUE PROCESS INSTRUMENTATION SIEMENS EN
115 Mbytes
PDF CATALOGUE SIEMENS EN
104 Mbytes
