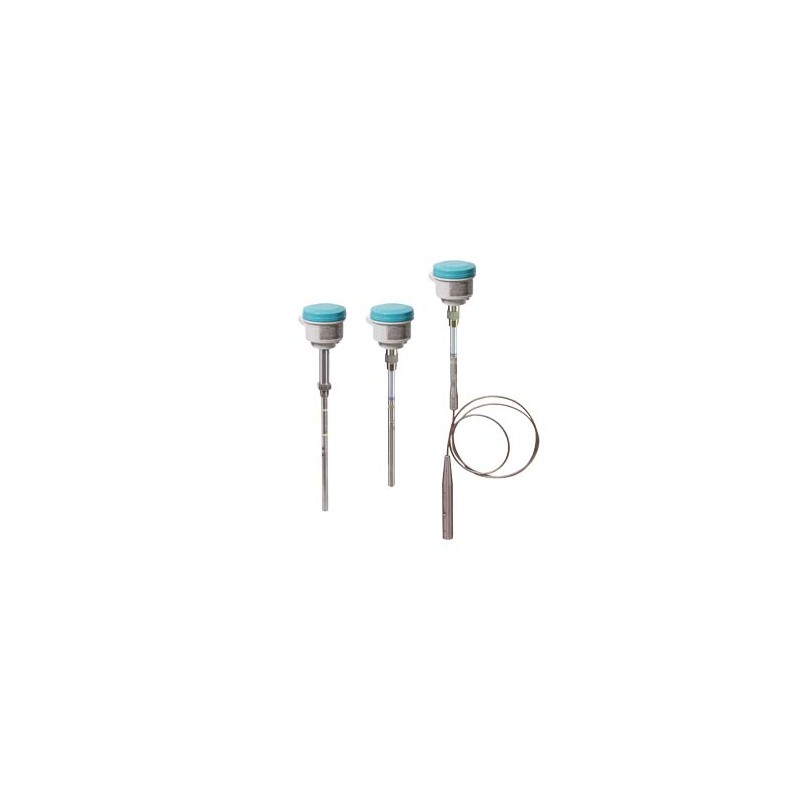

7ML5652-0BA00-0FA0 SIEMENS Pointek CLS300 RF Capacitance point level switch, high temperature design. Detect..
7ML5652-0BA00-0FA0
SIEMENS
Product on demand only, returns will not be accepted.
Pointek CLS300 RF Capacitance point level switch, high temperature design. Detects level and interface in aggressive liquids, solids, slurries, and foam. Adjustable, 1 m (3.28 ft), insertion, adaptable sensitivity, with active shield to tune out build-up on probe. Process Connection: 1" NPT (Taper), ANSI/ASME B1.20.1 Probe Length: (Lengths from flange face) Standard version, rod 350 mm (13.78") . Wetted Seals: Graphite Probe Material: 316L Stainless Steel with Ceramic Isolators Approvals: Dust Ignition Proof with IS Probe: CSA/ FM Class II, III Div. 1 Gr .E, F, G T4 Enclosure and Lid: Aluminum epoxy coated 2 x 1/2" NPT via adapter - cable inlet, IP65 Active Shiled Length: Standard length - (125 mm threaded, 105 mm flanged)
. Pointek CLS300 RF Capacitive Level Switch, High Temperature Variant. Level and level/interface detection of aggressive liquids, solids, slurries and foam. Insertion length 1 m (3.28 ft) adjustable, sensitivity adjustable, with Active Shield technology to ignore buildup in the probe. Process connection: 1" NPT (tapered), ANSI/ASME B1.20.1 Special version: (length from flange face) Standard, 350 mm (13.78") rod Process side seals: Graphite Probe material: stainless steel, mat no. 1.4404/316L with ceramic insulators approvals: Ex protection for dust with intrinsically safe (IS) probe: CSA/FM Class II, Div.1, tam. E, F, G, CSA/FM Class III T4 Case & Lid: Aluminum, Epoxy Coated, 2 x 1/2" NPT via Adapter - Cable Entry, IP65 Active Shield Length: Standard Length - (125 mm thread, 105 mm f
SENSORS AND COMMUNICATIONS > Non-ultrasonic level measuring equipment
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Product | |||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 7ML5652-0BA00-0FA0 | ||||||||||||||||||||||||||||||
| Product Description | Pointek CLS300 RF Capacitance point level switch, high temperature design. Detects level and interface in aggressive liquids, solids, slurries, and foam. Adjustable, 1 m (3.28 ft), insertion, adaptable sensitivity, with active shield to tune out build-up on probe. Process Connection: 1" NPT (Taper), ANSI/ASME B1.20.1 Probe Length: (Lengths from flange face) Standard version, rod 350 mm (13.78") . Wetted Seals: Graphite Probe Material: 316L Stainless Steel with Ceramic Isolators Approvals: Dust Ignition Proof with IS Probe: CSA/ FM Class II, III Div. 1 Gr .E, F, G T4 Enclosure and Lid: Aluminum epoxy coated 2 x 1/2" NPT via adapter - cable inlet, IP65 Active Shiled Length: Standard length - (125 mm threaded, 105 mm flanged) | ||||||||||||||||||||||||||||||
| Product family | Pointek CLS300 - Standard | ||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 8L3 / 8L3 | ||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||
| Export Control Regulations | ECCN : EAR99 / AL : N | ||||||||||||||||||||||||||||||
| Estimated dispatch time (Working Days) | 10 Day/Days | ||||||||||||||||||||||||||||||
| Net Weight (kg) | 2,000 Kg | ||||||||||||||||||||||||||||||
| Package size unit of measure | Not available | ||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||
| EAN | Not available | ||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||
| Commodity Code | 90318020 | ||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | FI01-4 | ||||||||||||||||||||||||||||||
| Product Group | 4717 | ||||||||||||||||||||||||||||||
| Group Code | R3P0 | ||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 20.07.2017 | ||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||
| SCIP number | |||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE PROCESS INSTRUMENTATION SIEMENS EN.pdf | 115 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 7ML5652-0BA00-0FA0 7ML5652-0BA00-0FA0 EN_7ML5652-0BA00-0FA0.pdf | 114 Kbytes |
|
