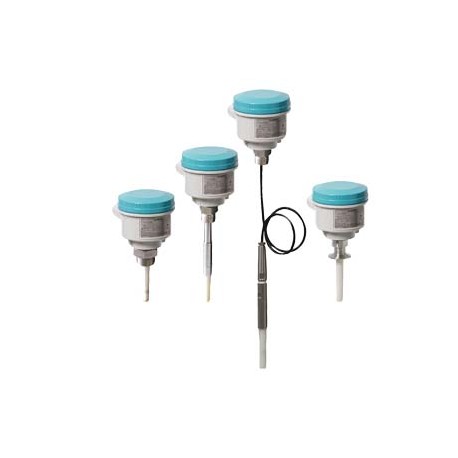

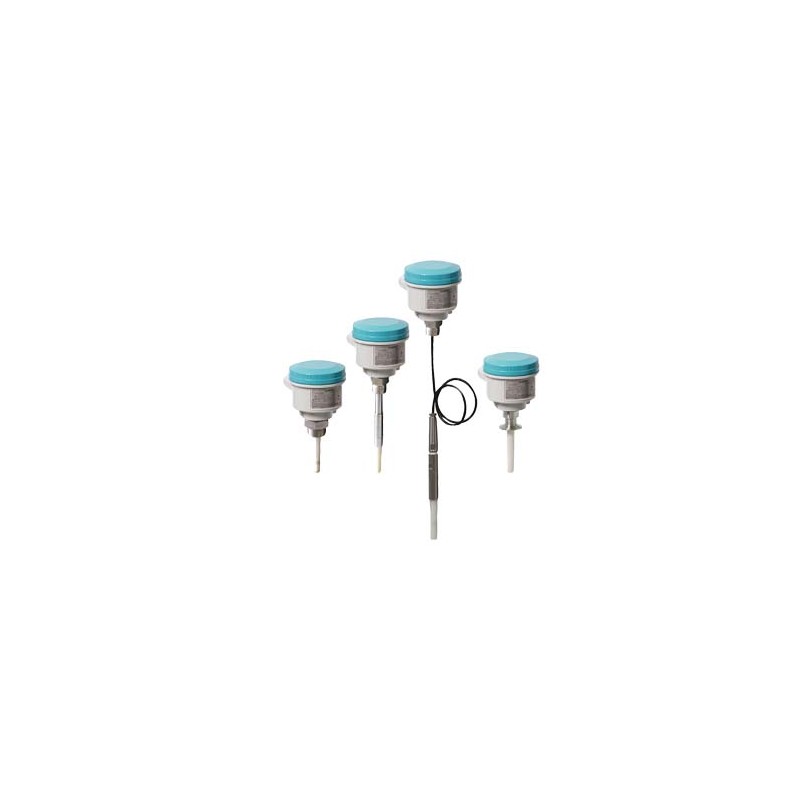

7ML5632-8CE01-1DA0 SIEMENS Pointek CLS200 RF Capacitance point level switch, sanitary rod design. Detects le..
7ML5632-8CE01-1DA0
SIEMENS
Product on demand only, returns will not be accepted.
Pointek CLS200 RF Capacitance point level switch, sanitary rod design. Detects level and interface in liquids, solids, slurries, and foam. Adjustable, 5.5 m (18.04 ft), insertion, adaptable sensitivity, with the ability to tune out build-up on probe. Process Connection: Sanitary 316L (1.4404) stainless steel: 2" sanitary fitting clamp Probe length: (length from process connection face): Extended rod, 750 mm (29.53") Thermal Isolator: Without thermal isolator Wetted Seals: FFKM (for process temperatures above -20 C (-4 F)) Probe Material: 316L Stainless Steel with PVDF probe body Approvals: Flameproof Enclosure With IS Probe CE, C-TICK, ATEX II 1/2 G EEx d(ia) IIC T6...T4, ATEX II 1/2 D T 100 C Enclosure and Lid: Aluminum epoxy coated 2X 1/2" NPT cable inlet, IP65 .
SENSORS AND COMMUNICATIONS > Non-ultrasonic level measuring equipment
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Product | ||||||||||||||||||||||
| Article Number (Market Facing Number) | 7ML5632-8CE01-1DA0 | |||||||||||||||||||||
| Product Description | Pointek CLS200 RF Capacitance point level switch, sanitary rod design. Detects level and interface in liquids, solids, slurries, and foam. Adjustable, 5.5 m (18.04 ft), insertion, adaptable sensitivity, with the ability to tune out build-up on probe. Process Connection: Sanitary 316L (1.4404) stainless steel: 2" sanitary fitting clamp Probe length: (length from process connection face): Extended rod, 750 mm (29.53") Thermal Isolator: Without thermal isolator Wetted Seals: FFKM (for process temperatures above -20 C (-4 F)) Probe Material: 316L Stainless Steel with PVDF probe body Approvals: Flameproof Enclosure With IS Probe CE, C-TICK, ATEX II 1/2 G EEx d(ia) IIC T6...T4, ATEX II 1/2 D T 100 C Enclosure and Lid: Aluminum epoxy coated 2X 1/2" NPT cable inlet, IP65 . | |||||||||||||||||||||
| Product family | Not available | |||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||
| Export Control Regulations | ECCN : EAR99 / AL : N | |||||||||||||||||||||
| Standard lead time ex-works | 15 Day/Days | |||||||||||||||||||||
| Net Weight (kg) | 2.000 Kg | |||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | |||||||||||||||||||||
| Packaging Dimension | Not available | |||||||||||||||||||||
| Package size unit of measure | Not available | |||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||
| EAN | Not available | |||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||
| Commodity Code | 90261029 | |||||||||||||||||||||
| LKZ_FDB/ CatalogID | FI01-4 | |||||||||||||||||||||
| Product Group | 4717 | |||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 20/07/17 | |||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | |||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||
Reach Information There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly. | ||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||
| ||||||||||||||||||||||
| Version | Classification | |||||||||||||||||||||
| eClass | 5.1 | 27-20-05-03 | ||||||||||||||||||||
| eClass | 6 | 27-20-05-03 | ||||||||||||||||||||
| eClass | 7.1 | 27-20-05-03 | ||||||||||||||||||||
| eClass | 8 | 27-20-05-03 | ||||||||||||||||||||
| eClass | 9 | 27-20-05-03 | ||||||||||||||||||||
| eClass | 9.1 | 27-20-05-03 | ||||||||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE PROCESS INSTRUMENTATION SIEMENS EN.pdf | 115 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
