SIEMENSSENSORS AND COMMUNICATIONSSIWAREX WEIGHING SYSTEMS7ML5631-0AA00-0JB0 SIEMENS Pointek CLS200 RF Capacitance point level switch, cable design. Detects level and..

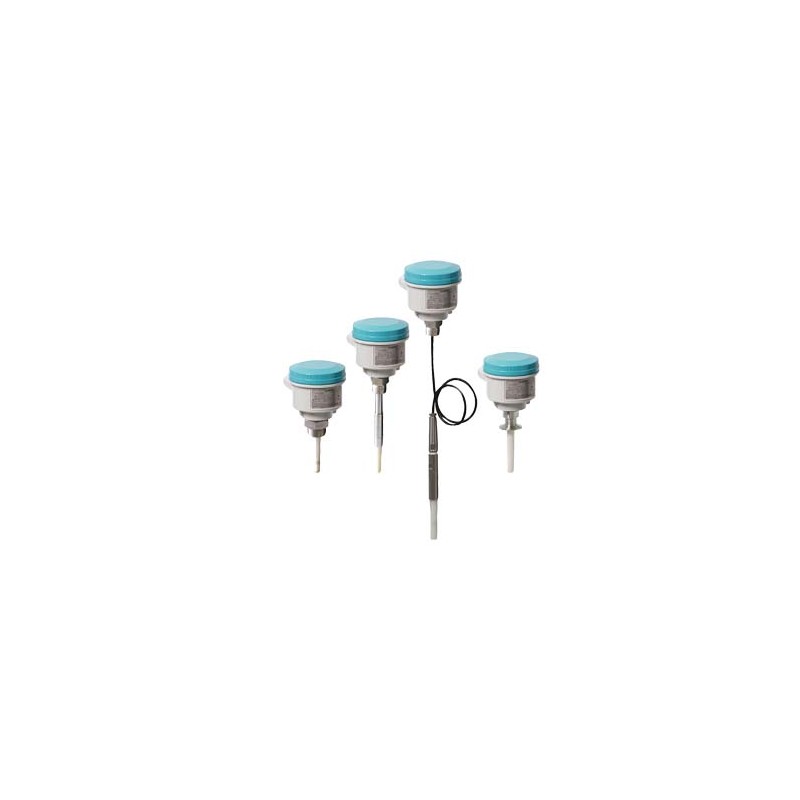

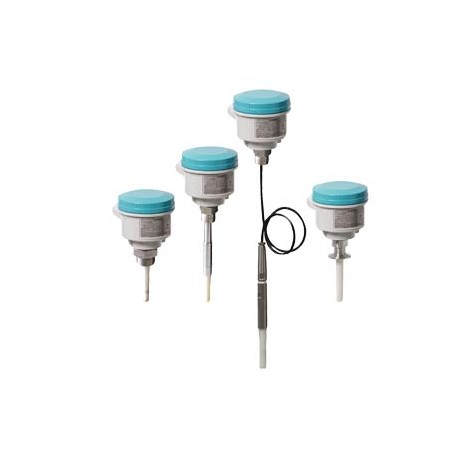

SIEMENS 7ML5631-0AA00-0JB0 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

7ML5631-0AA00-0JB0 SIEMENS Pointek CLS200 RF Capacitance point level switch, cable design. Detects level and..

Code: 7ML5631-0AA00-0JB0

Manufacturer: SIEMENS

Description:

Pointek CLS200 RF Capacitance point level switch, cable design. Detects level and interface in liquids, solids, slurries, and foam. Cable extension options to 30 m (98.43 ft), adaptable sensitivity, with the ability to tune out build-up on probe. Process Connection: Threaded, 316L (1.4404) stainless steel: 3/4" NPT ((Taper), ANSI/ASME B1.20.1) Probe length: (length from flange face) (Threaded lengths include process thread) Extended cable, 3000 mm (118.11"), length can be shortened by customer Thermal Isolator: Without thermal isolator Wetted Seals: FKM and PTFE Probe Material: FEP Jacketed cable with PPS Probe Body Approvals: General Purpose CSA, FM, CE, UKCA, RCM Enclosure and Lid: Aluminum epoxy coated 2 x M20 x 1.5 cable inlet, IP65 .

Categories:

  • SIEMENS > SENSORS AND COMMUNICATIONS > SIWAREX weighing systems

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 843,86 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 20-25 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Product
Article Number (Market Facing Number)7ML5631-0AA00-0JB0
Product DescriptionPointek CLS200 RF Capacitance point level switch, cable design. Detects level and interface in liquids, solids, slurries, and foam. Cable extension options to 30 m (98.43 ft), adaptable sensitivity, with the ability to tune out build-up on probe. Process Connection: Threaded, 316L (1.4404) stainless steel: 3/4" NPT ((Taper), ANSI/ASME B1.20.1) Probe length: (length from flange face) (Threaded lengths include process thread) Extended cable, 3000 mm (118.11"), length can be shortened by customer Thermal Isolator: Without thermal isolator Wetted Seals: FKM and PTFE Probe Material: FEP Jacketed cable with PPS Probe Body Approvals: General Purpose CSA, FM, CE, UKCA, RCM Enclosure and Lid: Aluminum epoxy coated 2 x M20 x 1.5 cable inlet, IP65 .
Product familyPointek CLS200 - Standard
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group8L3 / 8L3
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsECCN : EAR99 / AL : N
Estimated dispatch time (Working Days)10 Day/Days
Net Weight (kg)2,000 Kg
Package size unit of measureNot available
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EANNot available
UPCNot available
Commodity Code90261029
LKZ_FDB/ CatalogIDFI01-4
Product Group4717
Group CodeR3P0
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 20.07.2017
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
VersionClassification
eClass1227-20-05-03
eClass1427-20-05-03
eClass627-20-05-03
eClass7.127-20-05-03
eClass827-20-05-03
eClass927-20-05-03
eClass9.127-20-05-03
ETIM8EC002993
ETIM9EC002993

DATASHEET - PDF

Title
Size
Type
7ML5631-0AA00-0JB0 EN_7ML5631-0AA00-0JB0.pdf
115 Kbytes
PDF CATALOGUE PROCESS INSTRUMENTATION SIEMENS EN
115 Mbytes
PDF CATALOGUE SIEMENS EN
104 Mbytes
