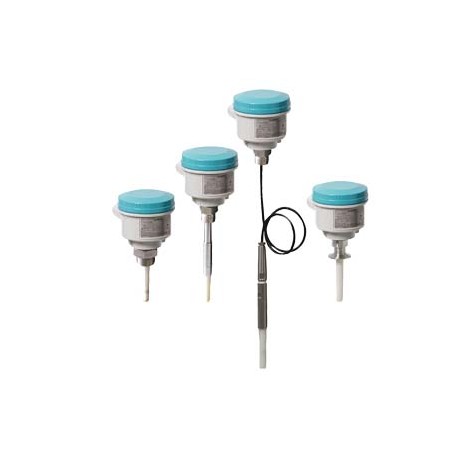

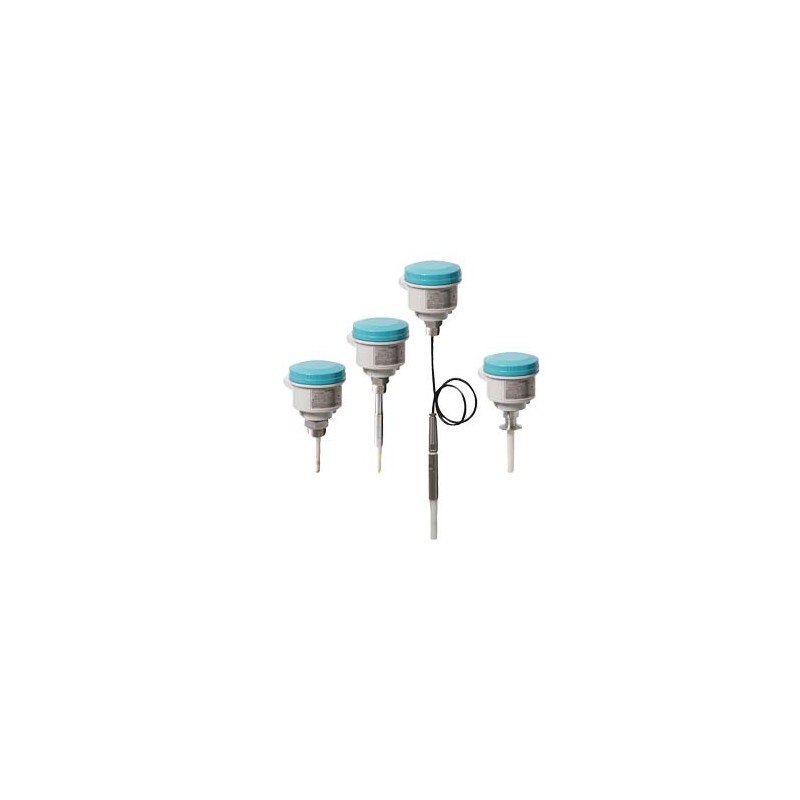

7ML5631-0AA00-0JA0 SIEMENS Pointek CLS200 RF Capacitance point level switch, cable design. Detects level and..
7ML5631-0AA00-0JA0
SIEMENS
Product on demand only, returns will not be accepted.
Pointek CLS200 RF Capacitance point level switch, cable design. Detects level and interface in liquids, solids, slurries, and foam. Cable extension options to 30 m (98.43 ft), adaptable sensitivity, with the ability to tune out build-up on probe. Process Connection: Threaded, 316L (1.4404) stainless steel: 3/4" NPT ((Taper), ANSI/ASME B1.20.1) Probe length: (length from flange face) (Threaded lengths include process thread) Extended cable, 3000 mm (118..
. Pointek CLS200 RF Capacitive Level Switch, Wired Variant. Level and level/interface detection of liquids, solids, slurries and foam. Optional cable extensions up to 30 m (98.43 ft), adjustable sensitivity, with the ability to ignore build-up on the probe. Process connection: thread, stainless steel, mat no. 1.4404/316L: 34/" NPT ((tapered), ANSI/ASME B1.20.1) Special version: (length measured from flange face) (in thread length, process thread is included) Cable extension, 3000 mm (118.11"), customer shortenable Thermal insulation: Without thermal insulation Seals on process side: FKM and PTFE Probe material: FEP Coated Cable with PPS Probe Approvals: General Purpose (CE, C-TICK) Case & Lid: Aluminum, Epoxy Coated, 2 x 1/2" NPT via Adapter Cable Entry, IP65
SENSORS AND COMMUNICATIONS > Non-ultrasonic level measuring equipment
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Product | |||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 7ML5631-0AA00-0JA0 | ||||||||||||||||||||||||||||||
| Product Description | Pointek CLS200 RF Capacitance point level switch, cable design. Detects level and interface in liquids, solids, slurries, and foam. Cable extension options to 30 m (98.43 ft), adaptable sensitivity, with the ability to tune out build-up on probe. Process Connection: Threaded, 316L (1.4404) stainless steel: 3/4" NPT ((Taper), ANSI/ASME B1.20.1) Probe length: (length from flange face) (Threaded lengths include process thread) Extended cable, 3000 mm (118.11"), length can be shortened by customer Thermal Isolator: Without thermal isolator Wetted Seals: FKM and PTFE Probe Material: FEP Jacketed cable with PPS Probe Body Approvals: General Purpose CSA, FM, CE, UKCA, RCM Enclosure and Lid: Aluminum epoxy coated 2 x 1/2" NPT via adapter - cable inlet, IP65 . | ||||||||||||||||||||||||||||||
| Product family | Pointek CLS200 - Standard | ||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 8L3 / 8L3 | ||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||
| Export Control Regulations | ECCN : EAR99 / AL : N | ||||||||||||||||||||||||||||||
| Estimated dispatch time (Working Days) | 1 Day/Days | ||||||||||||||||||||||||||||||
| Net Weight (kg) | 2,000 Kg | ||||||||||||||||||||||||||||||
| Package size unit of measure | Not available | ||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||
| EAN | Not available | ||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||
| Commodity Code | 90261029 | ||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | FI01-4 | ||||||||||||||||||||||||||||||
| Product Group | 4717 | ||||||||||||||||||||||||||||||
| Group Code | R3P0 | ||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 20.07.2017 | ||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||
| SCIP number | |||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE PROCESS INSTRUMENTATION SIEMENS EN.pdf | 115 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 7ML5631-0AA00-0JA0 7ML5631-0AA00-0JA0 EN_7ML5631-0AA00-0JA0.pdf | 115 Kbytes |
|
