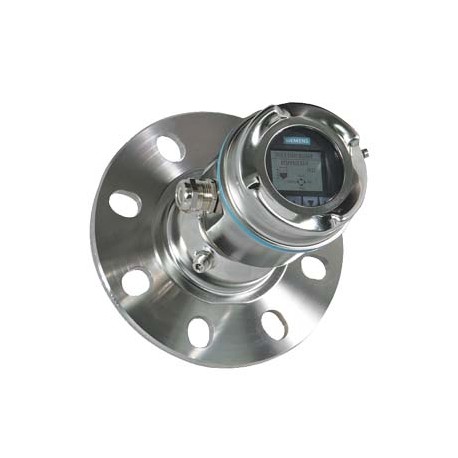

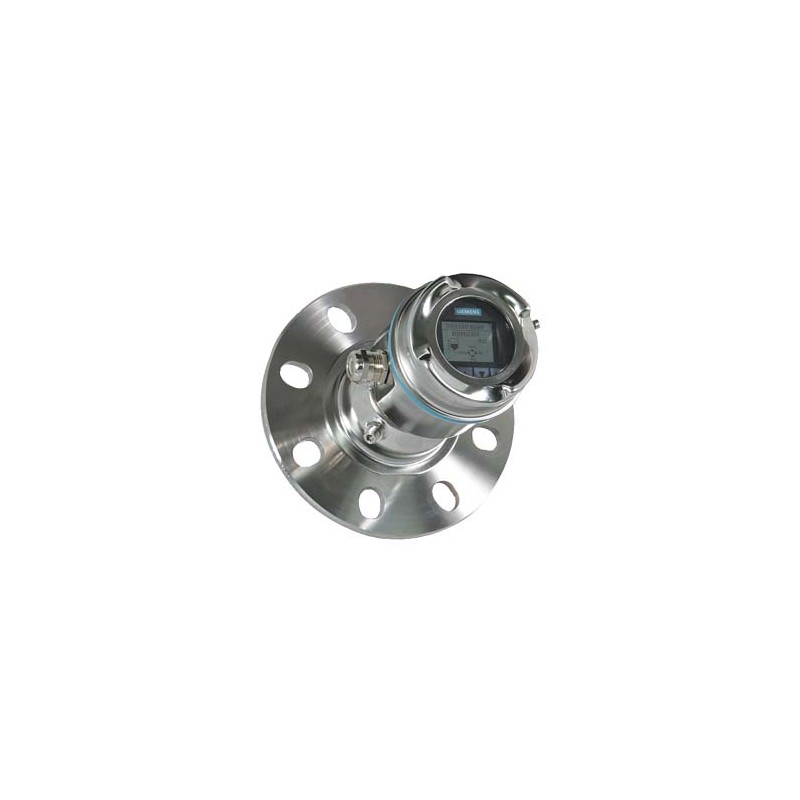

7ML5440-1BB00-0AA2 SIEMENS SITRANS LR560 Radar level transmitter with flush lens antenna: continuous, non-co..
7ML5440-1BB00-0AA2
SIEMENS
Product on demand only, returns will not be accepted.
SITRANS LR560 Radar level transmitter with flush lens antenna: continuous, non-contact, 100 m (328 ft) range, for general solids applications. Measurement and process temperature range: 100m (328 ft) max range, -40 C degrees to +200 C degrees Process connection: Universal flat-faced flange fits ANSI/DIN/JIS flanges: 4" / 100 mm, 304 stainless steel Enclosure (with cable inlet): Stainless Steel, 1 X M20 x 1.5 (plastic gland included) . Label: Sitrans LR560 Pressure Rating: 0.5 bar g (7.5 psi g) maximum Output/communication: 4 to 20 mA, HART Approvals: Ordinary Locations/General Purpose (Non-Ex), FM, cCSAus, IC, FCC, CE, UKCA, RED, RCM Local display interface: With LDI (local display interface)
SENSORS AND COMMUNICATIONS > Non-ultrasonic level measuring equipment
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Product | |||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 7ML5440-1BB00-0AA2 | ||||||||||||||||||||||||||||||
| Product Description | SITRANS LR560 Radar level transmitter with flush lens antenna: continuous, non-contact, 100 m (328 ft) range, for general solids applications. Measurement and process temperature range: 100m (328 ft) max range, -40 C degrees to +200 C degrees Process connection: Universal flat-faced flange fits ANSI/DIN/JIS flanges: 4" / 100 mm, 304 stainless steel Enclosure (with cable inlet): Stainless Steel, 1 X M20 x 1.5 (plastic gland included) . Label: Sitrans LR560 Pressure Rating: 0.5 bar g (7.5 psi g) maximum Output/communication: 4 to 20 mA, HART Approvals: Ordinary Locations/General Purpose (Non-Ex), FM, cCSAus, IC, FCC, CE, UKCA, RED, RCM Local display interface: With LDI (local display interface) | ||||||||||||||||||||||||||||||
| Product family | SITRANS LR560 | ||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 8L2 / 8L2 | ||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||
| Export Control Regulations | ECCN : EAR99I / AL : N | ||||||||||||||||||||||||||||||
| Estimated dispatch time | 14 Day/Days | ||||||||||||||||||||||||||||||
| Net Weight (kg) | 6,000 Kg | ||||||||||||||||||||||||||||||
| Package size unit of measure | Not available | ||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||
| EAN | Not available | ||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||
| Commodity Code | 90261029 | ||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | FI01-4 | ||||||||||||||||||||||||||||||
| Product Group | 4716 | ||||||||||||||||||||||||||||||
| Group Code | R3P0 | ||||||||||||||||||||||||||||||
| Country of origin | Canada | ||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 10.01.2003 | ||||||||||||||||||||||||||||||
| Product class | C: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit. | ||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||
| SCIP number | |||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE PROCESS INSTRUMENTATION SIEMENS EN.pdf | 115 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 7ML5440-1BB00-0AA2 7ML5440-1BB00-0AA2 EN_7ML5440-1BB00-0AA2.pdf | 115 Kbytes |
|
