> SIEMENS>SENSORS AND COMMUNICATIONS>SIWAREX weighing systems>7MH7112-2LA10 SIEMENS SITRANS WFS320 Sensing head: impact solids flowmeter for medium capacity applications...
Previous Product Next Product

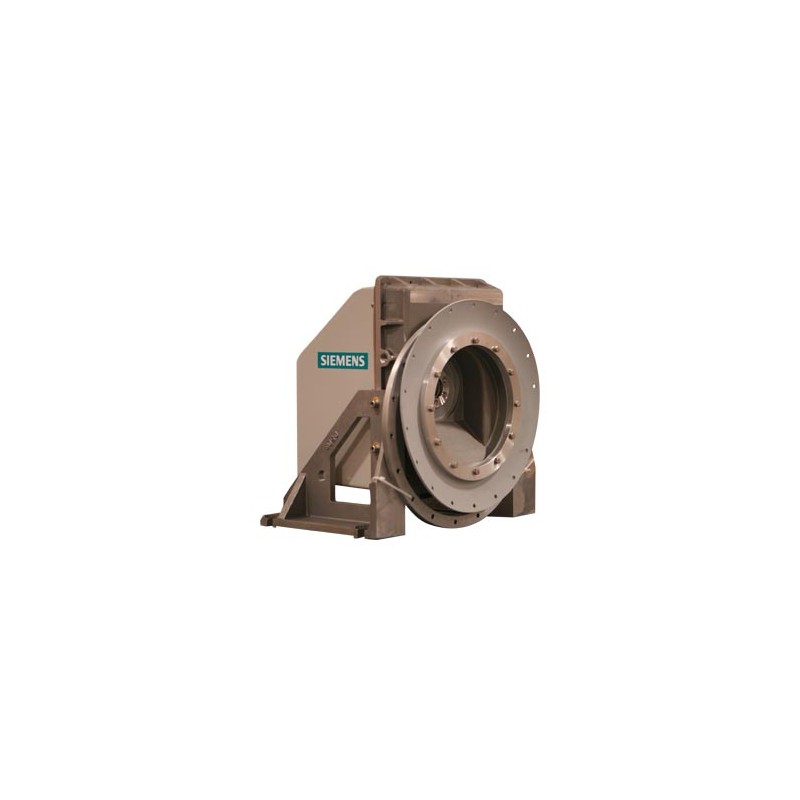

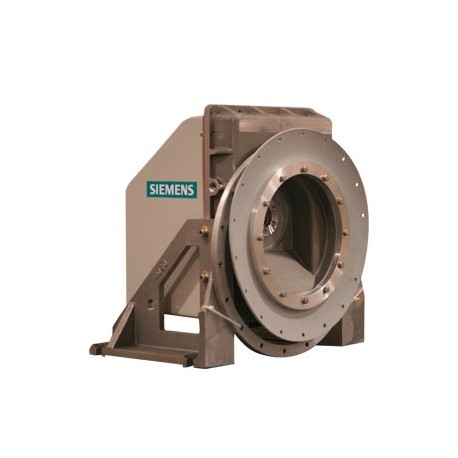

7MH7112-2LA10 SIEMENS SITRANS WFS320 Sensing head: impact solids flowmeter for medium capacity applications... View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

7MH7112-2LA10 SIEMENS SITRANS WFS320 Sensing head: impact solids flowmeter for medium capacity applications...

7MH7112-2LA10

SIEMENS

Product on demand only, returns will not be accepted.

SITRANS WFS320 Sensing head: impact solids flowmeter for medium capacity applications. Accuracy is ± 1 % or better, with capacity up to 300 t/h (330 STPH). Classification: CSA/FM Class I, Div. 1, Groups C, D, Class II, Div.

SITRANS WFS320 Sensing Head: Bulk Solids Flowmeter suitable for low to medium capacity applications. Min. accuracy ± 1%, capacity up to 300 t/h (330 STPH). Classification: CSA/FM Class I, Div. 1, Groups C, D, Class II, Div. 1, Groups E, F, G; ATEX II 2D Ex tb IIIC T70°C Db, -40°C = Ta = +60°C, IP64; UKEX II 2D Ex tb IIIC T70°C Db, -40°C = Ta = +60°C, IP64; ATEX II 3G Ex ec IIC T6 Gc, -40°C = Ta = +60°C, IP64; UKEX II 3G Ex ec IIC T6 Gc, -40°C = Ta = +60°C, IP64; IECEx Ex tb IIIC T70°C Db, Ta = -40°C to +60°C, IP64; IECEx Ex ec IIC T6 Gc, Ta = -40°C to +60°C; EAC Ex Ex tb IIIC T70°C Db X; EAC Ex Ex nA IIC T6 Gc X Range: (spring size/ liquid viscosity shock absorber) D4/5,000, position 2. Sealing gaskets: Silicone Coating: (side in contact with the single process.) Epoxy - white/aluminum, external castings only LVDT card in sensor head: None

More details


SENSORS AND COMMUNICATIONS > SIWAREX weighing systems

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $39,875.40
Unit price: $39,875.40
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Product
Article Number (Market Facing Number)7MH7112-2LA10
Product DescriptionSITRANS WFS320 Sensing head: impact solids flowmeter for medium capacity applications. Accuracy is ± 1 % or better, with capacity up to 300 t/h (330 STPH). Classification: CSA/FM Class I, Div. 1, Groups C, D, Class II, Div. 1, Groups E, F, G; ATEX II 2D Ex tb IIIC T70°C Db, -40°C = Ta = +60°C, IP64; UKEX II 2D Ex tb IIIC T70°C Db, -40°C = Ta = +60°C, IP64; ATEX II 3G Ex ec IIC T6 Gc, -40°C = Ta = +60°C, IP64; UKEX II 3G Ex ec IIC T6 Gc, -40°C = Ta = +60°C, IP64; IECEx Ex tb IIIC T70°C Db, Ta = -40°C to +60°C, IP64; IECEx Ex ec IIC T6 Gc, Ta = -40°C to +60°C; EAC Ex Ex tb IIIC T70°C Db X; EAC Ex Ex nA IIC T6 Gc X Range (Range spring size/viscosity of damping fluid): D4/5000 Position 2 Gaskets: silicone Coating, process side only: Epoxy - white/aluminum, external castings only Sensing Head Mounted LVDT Conditioner: not required
Product familySITRANS WFS300 sensing heads
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group8W1 / 8W1
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsECCN : EAR99I / AL : N
Estimated dispatch time (Working Days)109 Day/Days
Net Weight (kg)90,000 Kg
Package size unit of measureNot available
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EANNot available
UPCNot available
Commodity Code90318080
LKZ_FDB/ CatalogIDWT02
Product Group4715
Group CodeR3P5
Country of originCanada
Compliance with the substance restrictions according to RoHS directiveGiven
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationNo
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
SCIP number
Classifications
VersionClassification
eClass1227-32-02-04
eClass1427-32-02-04
eClass627-32-02-04
eClass7.127-32-02-04
eClass827-32-02-04
eClass927-32-02-04
eClass9.127-32-02-04
