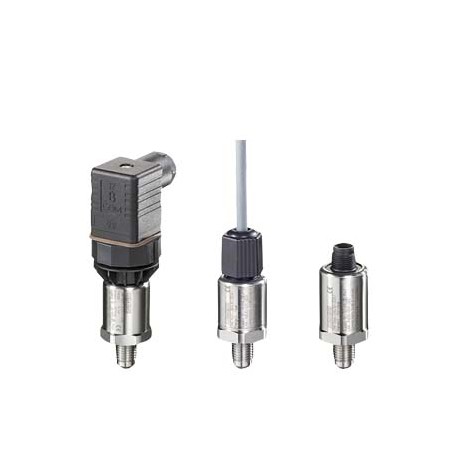

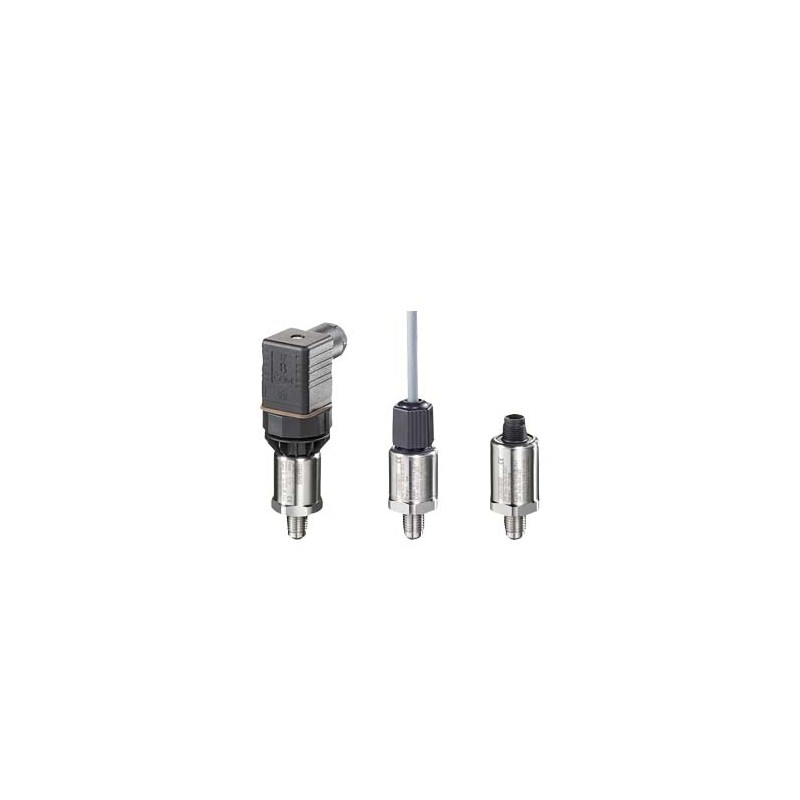

7MF1567-3CA00-2CB1 SIEMENS SITRANS P220 Transmitters for pressure and absolute pressure fully welded version..
7MF1567-3CA00-2CB1
SIEMENS
SITRANS P220 Transmitters for pressure and absolute pressure fully welded version for high-pressure and refrigerant applications Non-linearity: 0,25 Percent (typically) wetted parts material: stainless steel; non-wetted parts material: stainless steel Measuring range for gauge: 0 to 10 bar, Overload- pressure 25 bar Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection Electrical connection: round plug M12 to IEC 61076-2-101 Process connection: G1/4" male thread to EN837-1 (1/4"-BSP male) Special version for Flender Plug M12 IEC 61076-2-101, pin 1:+, pin 4:- Process connectopn G1/4 DIN 3852 E + press.source.red Standard version
SENSORS AND COMMUNICATIONS > SITRANS P - Pressure transmitters
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Product | |||||||||||||||||||||||||
| Article Number (Market Facing Number) | 7MF1567-3CA00-2CB1 | ||||||||||||||||||||||||
| Product Description | SITRANS P220 Transmitters for pressure and absolute pressure fully welded version for high-pressure and refrigerant applications Non-linearity: 0,25 Percent (typically) wetted parts material: stainless steel; non-wetted parts material: stainless steel Measuring range for gauge: 0 to 10 bar, Overload- pressure 25 bar Output signal: 4 to 20 mA two-wire connection, power supply DC 7 to 33 V without explosion protection Electrical connection: round plug M12 to IEC 61076-2-101 Process connection: G1/4" male thread to EN837-1 (1/4"-BSP male) Special version for Flender Plug M12 IEC 61076-2-101, pin 1:+, pin 4:- Process connectopn G1/4 DIN 3852 E + press.source.red Standard version | ||||||||||||||||||||||||
| Product family | Not available | ||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||
| Price Group | 8P4 | ||||||||||||||||||||||||
| List Price | Show prices | ||||||||||||||||||||||||
| Customer Price | Show prices | ||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||
| Export Control Regulations | ECCN : N / AL : N | ||||||||||||||||||||||||
| Standard lead time ex-works | 1 Day/Days | ||||||||||||||||||||||||
| Net Weight (kg) | 0,2 Kg | ||||||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | ||||||||||||||||||||||||
| Packaging Dimension | 87,00 x 156,00 x 41,00 | ||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||
| EAN | Not available | ||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||
| Commodity Code | 90262020 | ||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | FI01-1 | ||||||||||||||||||||||||
| Product Group | 4778 | ||||||||||||||||||||||||
| Country of origin | Switzerland | ||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 20.07.2017 | ||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||
| |||||||||||||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE PROCESS INSTRUMENTATION SIEMENS EN.pdf | 115 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
