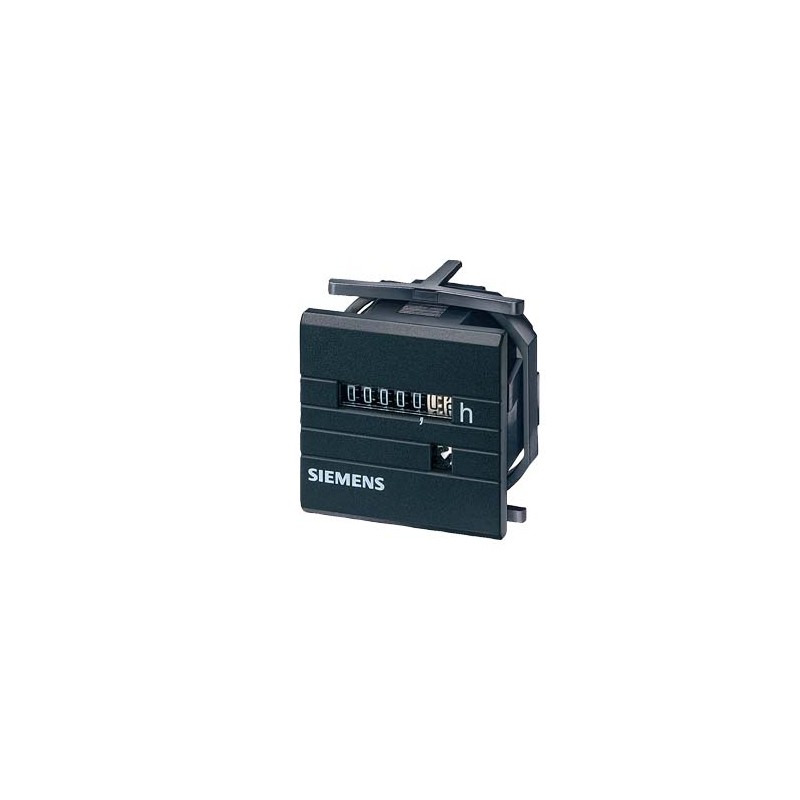

SIEMENS 7KT5500 7KT5500 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

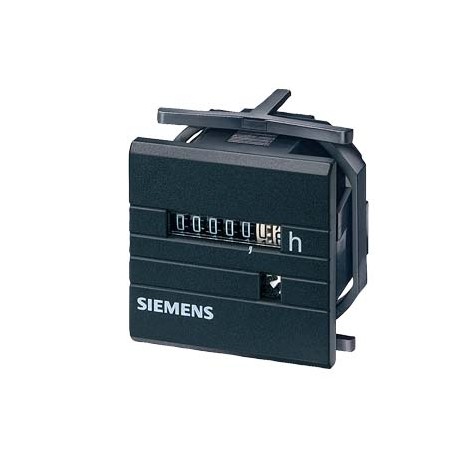

7KT5500 SIEMENS time counter 48x 48 mm 10-80V DC, without masking frame 55x 55 mm

Reference: 7KT5500

Manufacturer: SIEMENS

Description:

time counter 48x 48 mm 10-80V DC, without masking frame 55x 55 mm
Time counter for mounting on panels, rollers 00000,00h, with service indicator, 48x48mm, 10 to 80V DC. Cancelations and returns limited. Consult conditions.

Categories:

  • Meters > Hour meter
  • SIEMENS > POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > SENTRON PAC network analyzers. Energy Management Software

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 114,90 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

LAST VIEWED

MORE INFO

Technical data

time counter 48x 48 mm 10-80V DC, without masking frame 55x 55 mm
Model
product brand nameSENTRON
product designationTime counter
design of the productWithout cover
type of the driving mechanismothers
General technical data
diameter / of the front panel cutout50.2 mm
principle of operation / of the operating hours counteranalog
reset functionno
type of voltage / of the operating voltageDC
input voltage80 V
Protection class
protection class IPIP20
Number
number of characters that can be displayed7
Mechanical Design
height45 mm
height / of the front plate48 mm
width45 mm
width / of the front plate48 mm
installation depth34 mm
fastening methodfront panel mounting
net weight58 g

Downloads and manuals

General Product ApprovalDeclaration of Conformityother

Confirmation

EAC

EC/EU-Declaration of Conformity

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/6/2022


Additional data

Product
Article Number (Market Facing Number)7KT5500
Product Descriptiontime counter 48x 48 mm 10-80V DC, without masking frame 55x 55 mm
Product familyTime Counters for Front-Panel Mounting
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group15C / 1BK
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,060 Kg
Packaging Dimension63,00 x 63,00 x 56,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869198408
UPC754554668499
Commodity Code90291000
LKZ_FDB/ CatalogIDLV10.1
Product Group5522
Group CodeP310
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.06.2006
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-14-23-13
eClass7.127-14-23-13
eClass827-14-23-13
eClass927-14-23-13
eClass9.127-14-23-13
ETIM5EC001641
ETIM6EC001641
ETIM7EC001641
ETIM8EC001641
UNSPSC1439-12-16-26
UNSPSC1539-12-22-33

ETIM data

ETIM: EC001641 - Hour meter

Value Unit
Degree of protection (NEMA) (EF011959) -
Input voltage (EF003840) -V
Mounting method (EF000003) Front mounting
Model (EF000010) Analogue
Count area (EF005440) 99999.99h
Reset function (EF005207) None
Operation indication (EF004881) -
Number of digits (EF005555) 7
Voltage type (EF000187) DC
Frequency input voltage (EF006705) ['-', '-']Hz
Type of drive (EF001422) Quartz
Accuracy per day (EF006325) -s
Width (EF000008) 45.0mm
Height (EF000040) 45.0mm
Width in number of modular spacings (EF002950) -
Built-in depth (EF000218) 34.0mm
Front plate width (EF004689) 48.0mm
Front plate height (EF004690) 48mm
Diameter panel opening (EF004691) 50.2mm
Mounting to max. wall thickness (EF004507) -mm
Degree of protection (IP) (EF005474) IP20
