SIEMENSPOWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEARSENTRON PAC NETWORK ANALYZERS. ENERGY MANAGEMENT SOFTWARE7KT1540 SIEMENS E counter with LC display, 3-phase, CT/5A, 2xS0, 2 tariffs, Transformer connection with mete..

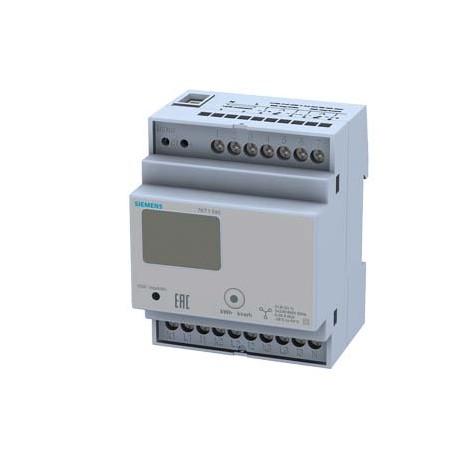

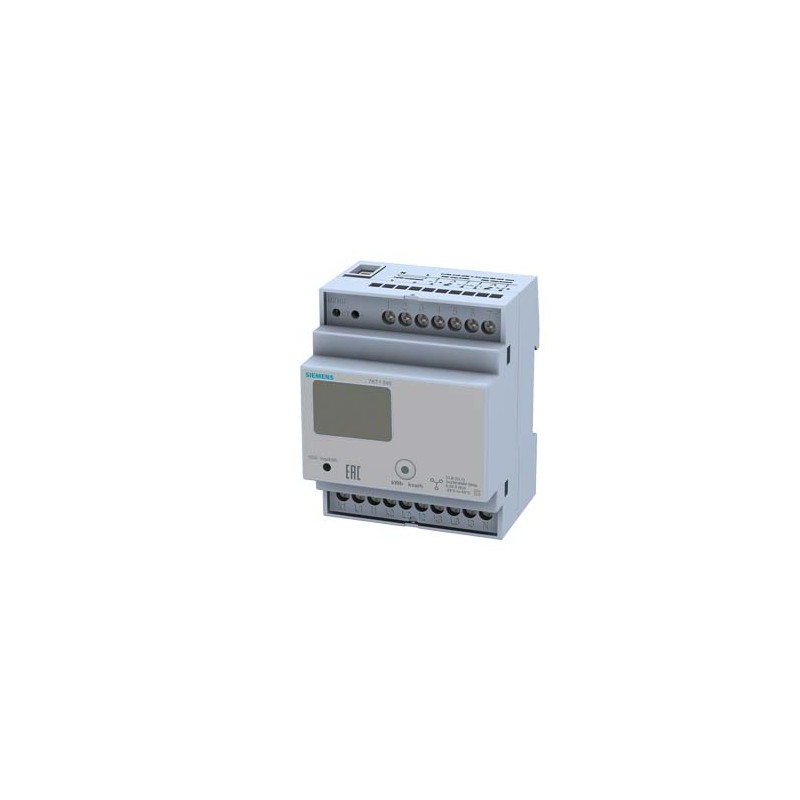

SIEMENS 7KT1540 7KT1540 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

7KT1540 SIEMENS E counter with LC display, 3-phase, CT/5A, 2xS0, 2 tariffs, Transformer connection with mete..

Reference: 7KT1540

Manufacturer: SIEMENS

Description:

E counter with LC display, 3-phase, CT/5A, 2xS0, 2 tariffs, Transformer connection with meter zero setting data transmission function

Categories:

  • Meters > Kilowatt-hour meter
  • SIEMENS > POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > SENTRON PAC network analyzers. Energy Management Software

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

ETIM: EC001506 - Kilowatt-hour meter

Value Unit
Degree of protection (NEMA) (EF011959) -
Type of meter (EF005441) Electronic
Nominal current (In) (EF008873) 5.0A
Max. current (Imax) (EF000877) 6A
Nominal voltage (Un) N-L (EF008871) ['184', '276']V
Nominal voltage (Un) L-L (EF008872) ['-', '-']V
Frequency (EF000416) ['50.0', '50.0']Hz
Accuracy class (EF008842) A
Pole type (EF008843) Four conductor
Model (EF000010) Direct measurement
Energy type (EF007135) Effective power and blind power
Suitable for (EF000073) Purchase/supply
Tariff type (EF007550) Two-tariff
Tariff control (EF008834) Internal/external
Measurement type load profile (EF008844) false
Escapement mechanism (EF008835) false
Calibrated (EF008836) false
Approval (EF008837) Domestic
Pulse output (EF008838) Electrical
Pulse type (EF008839) S0
Type of indication (EF000306) Digital
Mounting method (EF000003) Built-in
Width in number of modular spacings (EF002950) 4
Type of interface (EF006977) Other
EEC40 signature (EF008845) false
With lock code (EF008846) false
Number of positions total (counter) (EF004442) 8
Degree of protection (IP) (EF005474) IP50
Pulse rate (EF008840) -Imp/kWh (kvarh)


E counter with LC display, 3-phase, CT/5A, 2xS0, 2 tariffs, Transformer connection with meter zero setting data transmission function
Model
product brand nameSENTRON
Product quality / calibratedNo
Type of measured value detection / load profileNo
Type of signalS0
Design of the electricity meterSolid-state
Design of the pulse outputElectrical
General technical data
Energy-related number of pulses100 1/kVAh
Energy-related number of pulses
● minimum1 1/kVAh
● maximum100 1/kVAh
Type of the power supply networkFour-wire
Accuracy class1.2
measuring precisionclass 1 (active energy according to EN 50470-3) ; class 2 (reactive energy according to EN 62053-23 )
Rated current of the consumption measurement / with transformer measurement5A
Supply voltage
Operating voltage
● rated value400 V
● between N and L / minimum184 V
● between N and L / maximum276 V
Protection class
Protection class IPIP50
Current
Electricity meter current type3-4-wire measuring transformer meter
Tariff version of the electricity metertwo tariff
Electricity meter energy typeactive energy meter/reactive energy meter
Short-term overload current6 A
Main circuit
Operating frequency
● initial value50 Hz
● Full-scale value50 Hz
● rated value50 Hz
Operating current / rated value5 A
Suitability
● suitability for useImport/export
● Suitability for use / incremental value acquisitionNo
Product details
Product component
● electronic pulse generatorNo
● pulse outputYes
Product function
Product function
● BackstopNo
● Blocking codeNo
● Electricity tariff meter changeoverYes
Display and operation
Display versiondigital
Communication
design of the interfaceOther types
Number
Number of characters that can be displayed8
Connections
Electricity meter connection typemeasuring transformer connection
Mechanical Design
number of width units4
Mounting typeinstallation
Mounting type / Side-by-side mountingYes
Certificates
certificate of suitabilityNational
Declaration of Conformity

EC/EU-Declaration of Conformity

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications


Product
Article Number (Market Facing Number)7KT1540
Product DescriptionE counter with LC display, 3-phase, CT/5A, 2xS0, 2 tariffs, Transformer connection with meter zero setting data transmission function
Product familyOrdering Data Overview
Product Lifecycle (PLM)PM400:Phase Out Started
PLM Effective DateProduct phase-out since: 08.10.2018
Notes
Sucessor:Only by workaround: PAC2200 oder PAC1600
Price data
Price Group15C
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)0,256 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension77,00 x 92,00 x 55,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869388014
UPCNot available
Commodity Code90283019
LKZ_FDB/ CatalogIDLV10.1
Product Group5765
Group CodeP360
Country of originItaly
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2008
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-14-23-16
eClass7.127-14-23-16
eClass827-14-23-16
eClass927-14-23-16
eClass9.127-14-23-16
ETIM4EC001506
ETIM5EC001506
ETIM6EC001506
ETIM7EC001506
