> SIEMENS>AUTOMATION SYSTEMS>SIMATIC S7-1500: I / O>6ES7531-7MH00-0AB0 SIEMENS SIMATIC S7-1500, analog input module AI 16xI BA, 16-bit resolution accuracy 0.5%,..
ANUNCIAR
Previous Product

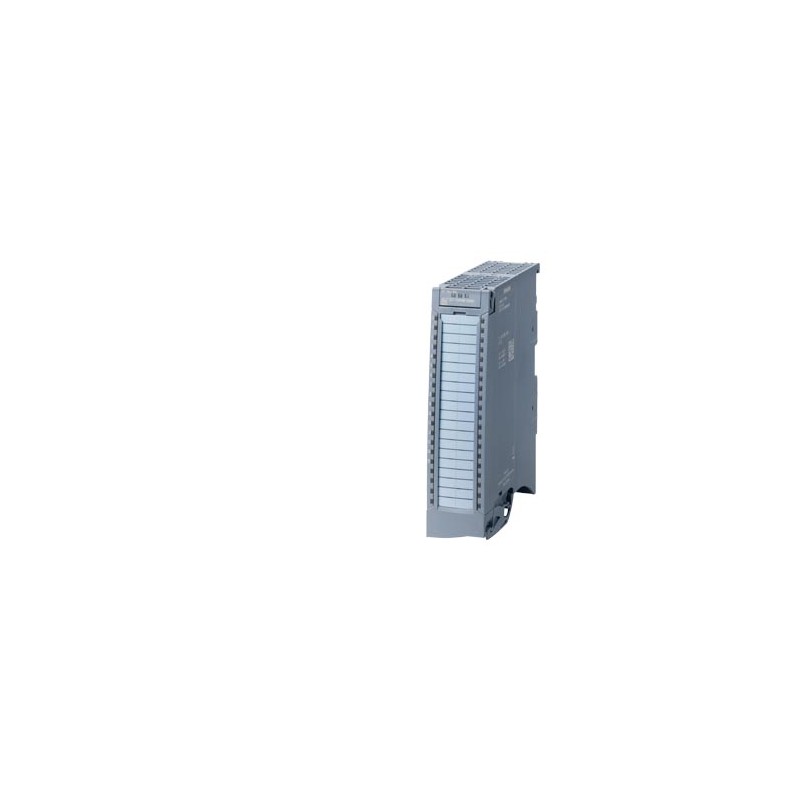

6ES7531-7MH00-0AB0 SIEMENS SIMATIC S7-1500, analog input module AI 16xI BA, 16-bit resolution accuracy 0.5%,.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

6ES7531-7MH00-0AB0 SIEMENS SIMATIC S7-1500, analog input module AI 16xI BA, 16-bit resolution accuracy 0.5%,..

6ES7531-7MH00-0AB0

SIEMENS

SIMATIC S7-1500, analog input module AI 16xI BA, 16-bit resolution accuracy 0.5%, 16 channels in groups of 16, common mode voltage 4 V DC, diagnostics, hardware interrupts; delivery including infeed element, shield bracket and shield terminal: front connector (screw terminals or push-in) to be ordered separately

SIMATIC S7-1500, EA Module: 16xI BA, 16-bit resolution accuracy 0.5%, 16 channels in groups of 16 common mode voltage 4 V DC, diagnostics, hardware interrupts; delivery including infeed element, shield bracket and shield terminal: front conne

More details


AUTOMATION SYSTEMS > SIMATIC S7-1500: I / O

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $594.34
Unit price: $594.34
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Additional data

Product
Article Number (Market Facing Number)6ES7531-7MH00-0AB0
Product DescriptionSIMATIC S7-1500, analog input module AI 16xI BA, 16-bit resolution accuracy 0.5%, 16 channels in groups of 16, common mode voltage 4 V DC, diagnostics, hardware interrupts; delivery including infeed element, shield bracket and shield terminal: front connector (screw terminals or push-in) to be ordered separately
Product familySM 531 analog input modules
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group219 / 219
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99H
Standard lead time ex-works60 Day/Days
Net Weight (kg)0,369 Kg
Packaging Dimension16,10 x 19,40 x 5,00
Package size unit of measureCM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047623411055
UPC195125081161
Commodity Code85389091
LKZ_FDB/ CatalogIDST73
Product Group4501
Group CodeR151
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 25.09.2020
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead titanium zirconium oxide

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-24-22-01
eClass7.127-24-22-01
eClass827-24-22-01
eClass927-24-22-01
eClass9.127-24-22-01
ETIM5EC001420
ETIM6EC001420
ETIM7EC001420
ETIM8EC001420
IDEA43562
UNSPSC1532-15-17-05

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
6ES7531-7MH00-0AB0 EN_6ES7531-7MH00-0AB0.pdf 217 Kbytes 6ES7531-7MH00-0AB0 EN_6ES7531-7MH00-0AB0.pdf
