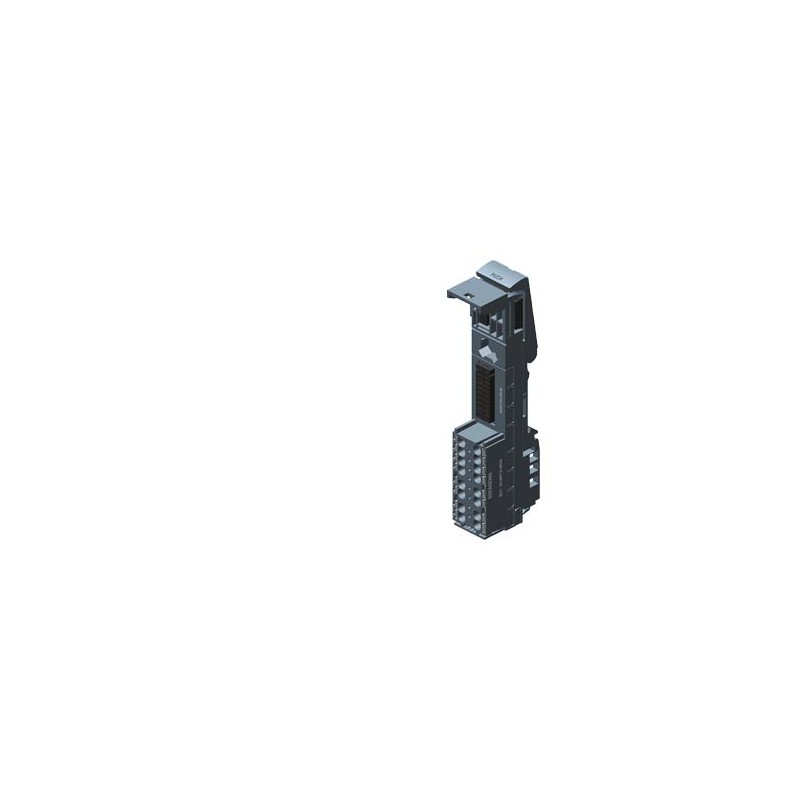

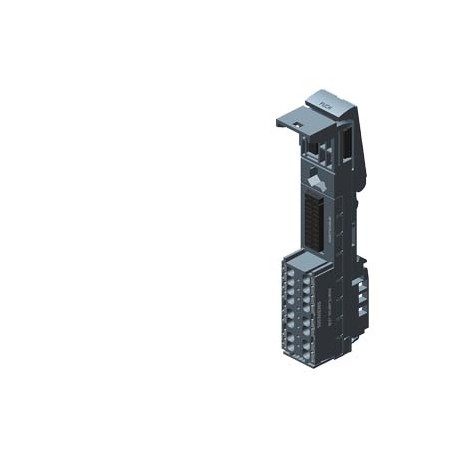

6ES7193-6BP20-2BB0 SIEMENS SIMATIC ET 200SP, BaseUnit BU20-P12+A4+0B, BU type B0, Pack quantity: 10 units, P.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

6ES7193-6BP20-2BB0 SIEMENS SIMATIC ET 200SP, BaseUnit BU20-P12+A4+0B, BU type B0, Pack quantity: 10 units, P..

6ES7193-6BP20-2BB0

SIEMENS

10

SIMATIC ET 200SP, BaseUnit BU20-P12+A4+0B, BU type B0, Pack quantity: 10 units, Push-in terminals, with 4 AUX terminals, bridged to the left, WxH: 20 mmx117 mm

SIMATIC ET200 IP20. ET200SP, BaeUnit BU20-P12+A4+0B for ET 200SP, BaseUnit type B0, push-IN terminals for direct insertion, with 4 auxiliary terminals, bridged to the left, width by height: 20mm x 117mm; 10 units per package. ( ***** ATTENTION : PRICE PER 1 UNIT AND MINIMUM QUANTITY / MULTIPLO OF ORDER 10 UNITS ***** )

More details


AUTOMATION SYSTEMS > SIMATIC ET200SP

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $419.80
Unit price: $41.98
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Additional data

Product
Article Number (Market Facing Number)6ES7193-6BP20-2BB0
Product DescriptionSIMATIC ET 200SP, BaseUnit BU20-P12+A4+0B, BU type B0, Pack quantity: 10 units, Push-in terminals, with 4 AUX terminals, bridged to the left, WxH: 20 mmx117 mm
Product familyBaseUnits
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group255 / 255
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works90 Day/Days
Net Weight (kg)0,047 Kg
Packaging Dimension3,20 x 11,20 x 2,50
Package size unit of measureCM
Quantity Unit1 Piece
Packaging Quantity1
Minimum order quantity10
Additional Product Information
EAN4047623406822
UPC804766722608
Commodity Code85389099
LKZ_FDB/ CatalogIDST76
Product Group4520
Group CodeR151
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 16.12.2015
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-24-26-03
eClass7.127-24-26-03
eClass827-24-26-03
eClass927-24-26-03
eClass9.127-24-26-03
ETIM5EC001598
ETIM6EC001598
ETIM7EC001598
ETIM8EC001598
IDEA43560
UNSPSC1532-15-17-04

ETIM data

ETIM: EC001598 - Fieldbus, decentr. periphery - mounting frame

Value Unit
Max. input current DC (EF007362) -A
Output voltage at AC 50 Hz (EF006999) -V
Max. input current AC 60 Hz (EF007361) -A
Max. output current AC 50 Hz (EF007351) -A
Output voltage at AC 60 Hz (EF007000) -V
Max. output current DC (EF007353) -A
Type of output voltage (EF008222) -
Output voltage at DC (EF007001) -V
Max. output current AC 60 Hz (EF007352) -A
Max. input current AC 50 Hz (EF007360) -A
With integrated power supply (EF003338) false
Input voltage at AC 50 Hz (EF007118) ['0', '230']V
Input voltage at AC 60 Hz (EF007119) ['0', '230']V
Type of voltage (input voltage) (EF003033) AC/DC
System accessory (EF004118) true
Number of slots (EF003077) 1
With pluggable modules, digital I/O (EF003078) true
With pluggable modules, analogue I/O (EF003079) false
With pluggable modules, communication modules (EF003080) false
With pluggable modules, function and technology modules (EF003081) false
With pluggable modules, central modules (EF003082) false
With pluggable modules, others (EF003083) false
Rail mounting possible (EF003972) true
Wall mounting/direct mounting (EF007020) false
Front build in possible (EF007016) true
Rack-assembly possible (EF007018) true
Suitable for safety functions (EF001597) false
Category according to EN 954-1 (EF006782) -
SIL according to IEC 61508 (EF009889) -
Performance level according to EN ISO 13849-1 (EF007399) -
Appendant operation agent (Ex ia) (EF004141) false
Appendant operation agent (Ex ib) (EF004142) false
Explosion safety category for gas (EF003997) ATEX gas-ex-protection, Cat. 3G
Explosion safety category for dust (EF003998) None
Width (EF000008) 20.0mm
Height (EF000040) 117.0mm
Depth (EF000049) 35.0mm
Input voltage at DC (EF007120) -V



Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
6ES7193-6BP20-2BB0 EN_6ES7193-6BP20-2BB0.pdf 174 Kbytes 6ES7193-6BP20-2BB0 EN_6ES7193-6BP20-2BB0.pdf
