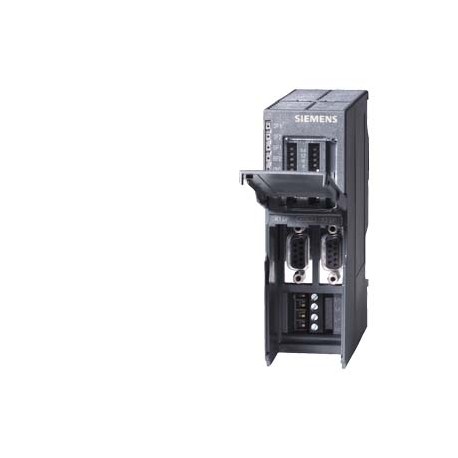

6ES7158-0AD01-0XA0 SIEMENS SIMATIC DP, DP/DP coupler Coupling module for connecting of two PROFIBUS DP netwo..
6ES7158-0AD01-0XA0
SIEMENS
SIMATIC DP, DP/DP coupler Coupling module for connecting of two PROFIBUS DP networks redundant current infeed
SIMATIC ET 200, DP/DP coupler for decentralized periphery, Coupling module for connecting two Profibus-DP networks with redundant power supply
AUTOMATION SYSTEMS > SIMATIC ET200 IP65 / 67
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲Additional data
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 6ES7158-0AD01-0XA0 | |||||||||||||||||||||||||||||||||||||||
| Product Description | SIMATIC DP, DP/DP coupler Coupling module for connecting of two PROFIBUS DP networks redundant current infeed | |||||||||||||||||||||||||||||||||||||||
| Product family | DP/DP couplers | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 250 / 250 | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : EAR99H | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 80 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,301 Kg | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 12,80 x 15,20 x 5,20 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | CM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4025515070726 | |||||||||||||||||||||||||||||||||||||||
| UPC | 662643218749 | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85176200 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | ST76 | |||||||||||||||||||||||||||||||||||||||
| Product Group | X03Z | |||||||||||||||||||||||||||||||||||||||
| Group Code | R151 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 25.11.2009 | |||||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC001604 - Fieldbus, decentr. periphery - communication module
| Value | Unit | |
|---|---|---|
| Radio standard WLAN 802.11 (EF007179) | - | |
| Supporting protocol for DeviceNet (EF003059) | - | |
| Supply voltage AC 50 Hz (EF007532) | ['-', '-'] | V |
| Supply voltage AC 60 Hz (EF007533) | ['-', '-'] | V |
| Supply voltage DC (EF007534) | ['20.4', '28.8'] | V |
| Voltage type of supply voltage (EF002991) | DC | |
| Supporting protocol for TCP/IP (EF003050) | NO DATA | |
| Supporting protocol for PROFIBUS (EF003052) | true | |
| Supporting protocol for CAN (EF003053) | false | |
| Supporting protocol for INTERBUS (EF003054) | false | |
| Supporting protocol for ASI (EF003051) | false | |
| Supporting protocol for KNX (EF003055) | false | |
| Supporting protocol for Modbus (EF003057) | false | |
| Supporting protocol for Data-Highway (EF003058) | false | |
| Supporting protocol for SUCONET (EF003060) | false | |
| Supporting protocol for LON (EF003017) | false | |
| Supporting protocol for SERCOS (EF006657) | false | |
| Supporting protocol for PROFINET IO (EF007525) | false | |
| Supporting protocol for PROFINET CBA (EF007524) | false | |
| Supporting protocol for Foundation Fieldbus (EF007522) | false | |
| Supporting protocol for EtherNet/IP (EF007521) | false | |
| Supporting protocol for AS-Interface Safety at Work (EF007519) | false | |
| Supporting protocol for DeviceNet Safety (EF007520) | false | |
| Supporting protocol for INTERBUS-Safety (EF006662) | false | |
| Supporting protocol for PROFIsafe (EF007526) | false | |
| Supporting protocol for SafetyBUS p (EF007527) | false | |
| Supporting protocol for other bus systems (EF003062) | true | |
| Radio standard Bluetooth (EF007178) | false | |
| Radio standard GPRS (EF008523) | false | |
| Radio standard GSM (EF008524) | false | |
| Radio standard UMTS (EF008525) | false | |
| IO link master (EF007298) | false | |
| System accessory (EF004118) | true | |
| Degree of protection (IP) (EF005474) | IP20 | |
| With potential separation (EF003272) | true | |
| Fieldbus connection over separate bus coupler possible (EF004002) | false | |
| Rail mounting possible (EF003972) | true | |
| Wall mounting/direct mounting (EF007020) | true | |
| Front build in possible (EF007016) | true | |
| Rack-assembly possible (EF007018) | false | |
| Suitable for safety functions (EF001597) | true | |
| Category according to EN 954-1 (EF006782) | - | |
| SIL according to IEC 61508 (EF009889) | - | |
| Performance level according to EN ISO 13849-1 (EF007399) | - | |
| Appendant operation agent (Ex ia) (EF004141) | false | |
| Appendant operation agent (Ex ib) (EF004142) | false | |
| Explosion safety category for gas (EF003997) | ATEX gas-ex-protection, Cat. 3G | |
| Explosion safety category for dust (EF003998) | None | |
| Width (EF000008) | 40.0 | mm |
| Height (EF000040) | 127.0 | mm |
| Depth (EF000049) | 117.0 | mm |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 6ES7158-0AD01-0XA0 EN_6ES7158-0AD01-0XA0.pdf | 128 Kbytes |
|
