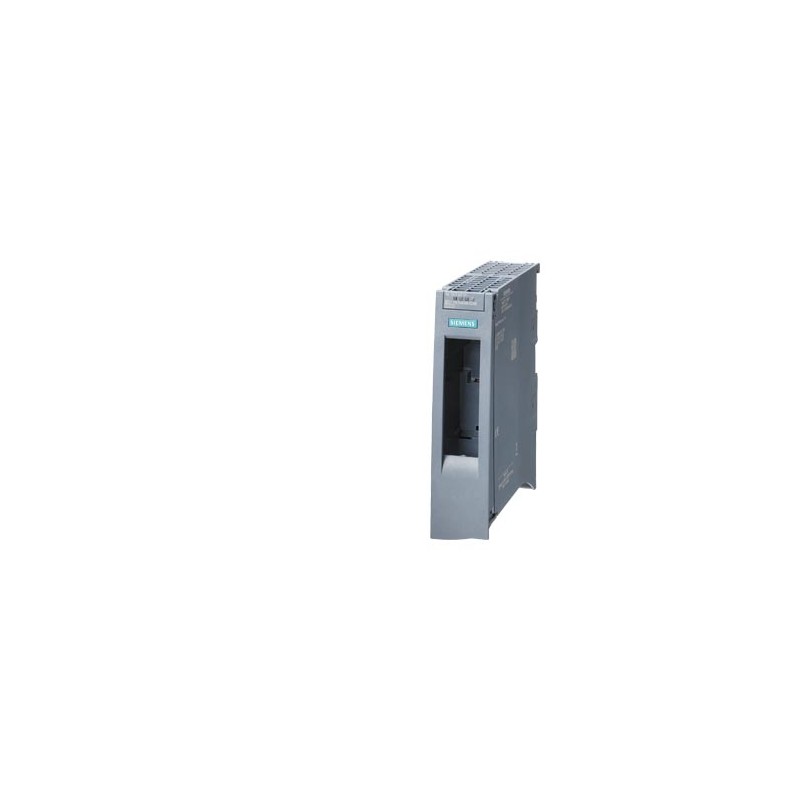

6ES7155-5MU00-0CN0 SIEMENS SIMATIC ET 200MP,multi-fieldbus interface module, IM 155-5 MF HF, EtherNet/IP and.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

6ES7155-5MU00-0CN0 SIEMENS SIMATIC ET 200MP,multi-fieldbus interface module, IM 155-5 MF HF, EtherNet/IP and..

6ES7155-5MU00-0CN0

SIEMENS

SIMATIC ET 200MP,multi-fieldbus interface module, IM 155-5 MF HF, EtherNet/IP and Modbus TCP, 2 flexible ports via plug-in SIMATIC BusAdapter (sold separately), max. 30 I/O modules, multi-hot- swap with active backplane (sold separately), IRT with 250 µs, shared device with 4 controllers (1440 bytes each), 256 bytes per I/O module, MRP, MRPD, S2 redundancy, PN security class 1, optional cable grip (sold separately) PN security class 1, optional cable grip (sold separately)

More details


AUTOMATION SYSTEMS > SIMATIC S7-1500: I / O

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $688.15
Unit price: $688.15
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Product
Article Number (Market Facing Number)6ES7155-5MU00-0CN0
Product DescriptionSIMATIC ET 200MP,multi-fieldbus interface module, IM 155-5 MF HF, EtherNet/IP and Modbus TCP, 2 flexible ports via plug-in SIMATIC BusAdapter (sold separately), max. 30 I/O modules, multi-hot- swap with active backplane (sold separately), IRT with 250 µs, shared device with 4 controllers (1440 bytes each), 256 bytes per I/O module, MRP, MRPD, S2 redundancy, PN security class 1, optional cable grip (sold separately) PN security class 1, optional cable grip (sold separately)
Product familyIM 155-5
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group219 / 219
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : 9N9999
Estimated dispatch time (Working Days)1 Day/Days
Net Weight (kg)0,302 Kg
Packaging Dimension0,01 x 0,01 x 0,01
Package size unit of measureCM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047623414292
UPC195125477162
Commodity Code85176200
LKZ_FDB/ CatalogIDST73
Product GroupX06U
Group CodeR151
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 23.12.2023
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Dodecachloropentacyclo[12.2.1.16,9.02,13.05,10]octadeca-7,15-diene (“Dechlorane Plus”™)covering any of its individual anti- and syn-isomers or any combination thereof

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

SCIP number
Classifications
VersionClassification
eClass1227-24-26-08
eClass1427-24-26-08
eClass627-24-26-08
eClass7.127-24-26-08
eClass827-24-26-08
eClass927-24-26-08
eClass9.127-24-26-08
ETIM7EC001604
ETIM8EC001604
ETIM9EC001604

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
6ES7155-5MU00-0CN0 EN_6ES7155-5MU00-0CN0.pdf 225 Kbytes 6ES7155-5MU00-0CN0 EN_6ES7155-5MU00-0CN0.pdf
