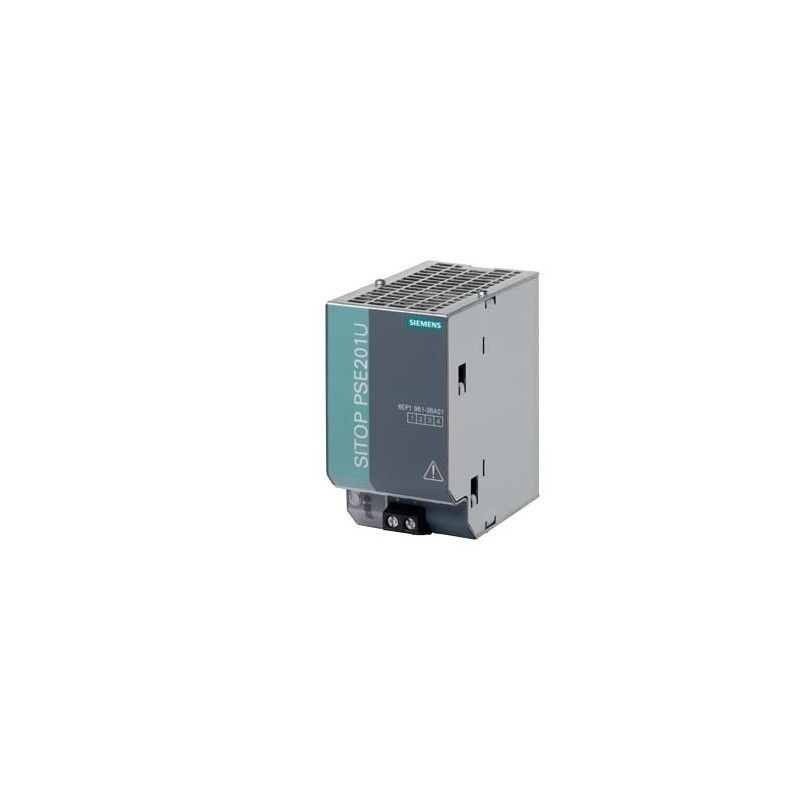

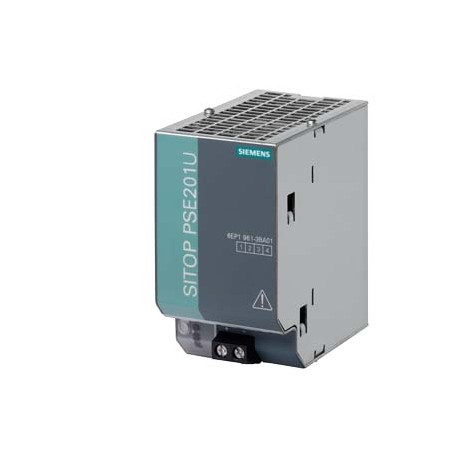

6AG1961-3BA01-7AA0 SIEMENS SIPLUS PS modular buffer module -25...+70°C with conformal coating based on 6EP19..
6AG1961-3BA01-7AA0
SIEMENS
SIPLUS PS modular buffer module -25...+70°C with conformal coating based on 6EP1961-3BA01 . for 6EP1x 3x-3BAX0 Buffer time 100 ms to 10 s depending on load current
SIPLUS module support PS modular, -25 to + 70 ° C, with a layer of special protection, based on 6EP1961-3BA01, for 6EP1X3X-3BAX0, backup time 100 ms to 10 s depending on the load current
AUTOMATION SYSTEMS > SIPLUS Extreme (LOGO, S7-1200, S7-1500, etc)
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲ETIM: EC002584 - Accessories/spare parts for controls
| Value | Unit | |
|---|---|---|
| Type of electrical accessory/spare part (EF005722) | - | |
| Type of mechanical accessory/spare part (EF005994) | - |
| SIPLUS SITOP PS MODULAR Puffermodul | ||
| SIPLUS PS modular buffer module -25...+70°C with conformal coating based on 6EP1961-3BA01 . for 6EP1x 3x-3BAX0 Buffer time 100 ms to 10 s depending on load current | ||
| Input | ||
| Supply voltage at DC Rated value | 24 V | |
| Voltage curve at input | DC | |
| input voltage range | 24 ... 28.8 V DC | |
| Mains buffering | ||
| Design of the mains power cut bridging-connection | Backup time: with 40 A load current: 200 ms; with 20 A load current: 400 ms; with 10 A load current: 800 ms; with 5 A load current: 1.6 s. Reduces the backup time by 100 ms in combination with 6EP1 437-3BA10. Maximum backup time 100 ms in combination with 6EP1 336-2BA10 (load current 20 A). | |
| Output | ||
| Formula for output voltage | Vin - approx. 1 V | |
| Output current | ||
| ● Rated value | 40 A | |
| Signaling | ||
| Display version | ||
| ● for normal operation | Green LED for "supply voltage > 20.5 V" | |
| Interface | ||
| Product component PC interface | No | |
| Design of the interface | without | |
| Safety | ||
| Galvanic isolation between entrance and outlet | Yes | |
| Operating resource protection class | Class III | |
| Certificate of suitability | ||
| ● CE marking | Yes | |
| Protection class IP | IP20 | |
| EMC | ||
| Standard | ||
| ● for emitted interference | EN 55022 Class B | |
| ● for interference immunity | EN 61000-6-2 | |
| environmental conditions | ||
| Ambient temperature in horizontal mounting position during operation | -25 ... +70; with natural convection | |
| Ambient temperature during storage and transport | -40 ... +85 | |
| Installation altitude at height above sea level maximum | 6 000 m | |
| Ambient condition relating to ambient temperature - air pressure - installation altitude | In case of operation at altitudes of 2000 - 6000 m above sea level: Output power derating of -7.5 %/1000 m or reduction of the ambient temperature by 5 K/1000 m | |
| Relative humidity with condensation acc. to IEC 60068-2-38 maximum | 100 %; RH incl. condensation/frost (no commissioning if condensation is present), horizontal installation | |
| Chemical resistance to commercially available cooling lubricants | Yes; incl. diesel and oil droplets in the air | |
| Resistance to biologically active substances conformity acc. to EN 60721-3-3 | Yes; Class 3B2 mold, fungal, sponge spores (except fauna); class 3B3 upon request | |
| Resistance to chemically active substances conformity acc. to EN 60721-3-3 | Yes; Class 3C4 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (severity level 3) | |
| Resistance to mechanically active substances conformity acc. to EN 60721-3-3 | Yes; Class 3S4 incl. sand, dust | |
| Resistance to biologically active substances conformity acc. to EN 60721-3-6 | Yes; Class 6B2 mold, fungal, sponge spores (except fauna) | |
| Resistance to chemically active substances conformity acc. to EN 60721-3-6 | Yes; Class 6C3 (RH < 75%) incl. salt spray acc. to EN 60068-2-52 (severity level 3) | |
| Resistance to mechanically active substances conformity acc. to EN 60721-3-6 | Yes; Class 6S3 incl. sand, dust | |
| Coating for equipped printed circuit board acc. to EN 61086 | Yes; Class 2 for high availability | |
| Type of coating protection against pollution according to EN 60664-3 | Yes; Type 1 protection | |
| Type of test of the coating acc. to MIL-I-46058C | Yes; Discoloration of the coating during service life possible | |
| Product conformity of the coating Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies acc. to IPC-CC-830A | Yes; Conformal Coating, Class A | |
| Mechanics | ||
| Type of electrical connection | screw-type terminals | |
| ● at input | +: 1 screw terminal for 0.5 ... 10 mm² | |
| ● at output | -: 1 screw terminal for 0.5 ... 10 mm² | |
| ● for control circuit and status message | - | |
| Width of the enclosure | 70 mm | |
| Height of the enclosure | 125 mm | |
| Depth of the enclosure | 121 mm | |
| Required spacing | ||
| ● top | 50 mm | |
| ● bottom | 50 mm | |
| ● left | 0 mm | |
| ● right | 0 mm | |
| Net weight | 1.2 kg | |
| Product feature of the enclosure housing for side-by-side mounting | Yes | |
| Mounting type | Snaps onto DIN rail EN 60715 35x7.5/15 | |
| MTBF at 40 °C | 2 538 071 h | |
| Reference code acc. to DIN EN 81346-2 | T | |
| Other information | Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified) | |
| Product | ||||||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 6AG1961-3BA01-7AA0 | |||||||||||||||||||||||||||||||||||||||
| Product Description | SIPLUS PS modular buffer module -25...+70°C with conformal coating based on 6EP1961-3BA01 . for 6EP1x 3x-3BAX0 Buffer time 100 ms to 10 s depending on load current | |||||||||||||||||||||||||||||||||||||||
| Product family | SIPLUS buffer module | |||||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||||||||
| Price Group | 471 | |||||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 23 Day/Days | |||||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 1,200 Kg | |||||||||||||||||||||||||||||||||||||||
| Product Dimensions (W x L x H) | Not available | |||||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 13,50 x 13,50 x 8,00 | |||||||||||||||||||||||||||||||||||||||
| Package size unit of measure | CM | |||||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||||||||
| EAN | 4042948568408 | |||||||||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||||||||
| Commodity Code | 85049090 | |||||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | A&DSE/SIP ADD | |||||||||||||||||||||||||||||||||||||||
| Product Group | 4626 | |||||||||||||||||||||||||||||||||||||||
| Group Code | R740 | |||||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | |||||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2012 | |||||||||||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | |||||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||||||||
