SIEMENSPOWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAROTHER MODULAR SYSTEMS5TE8114 SIEMENS OFF switch 20 A 3 NO+N

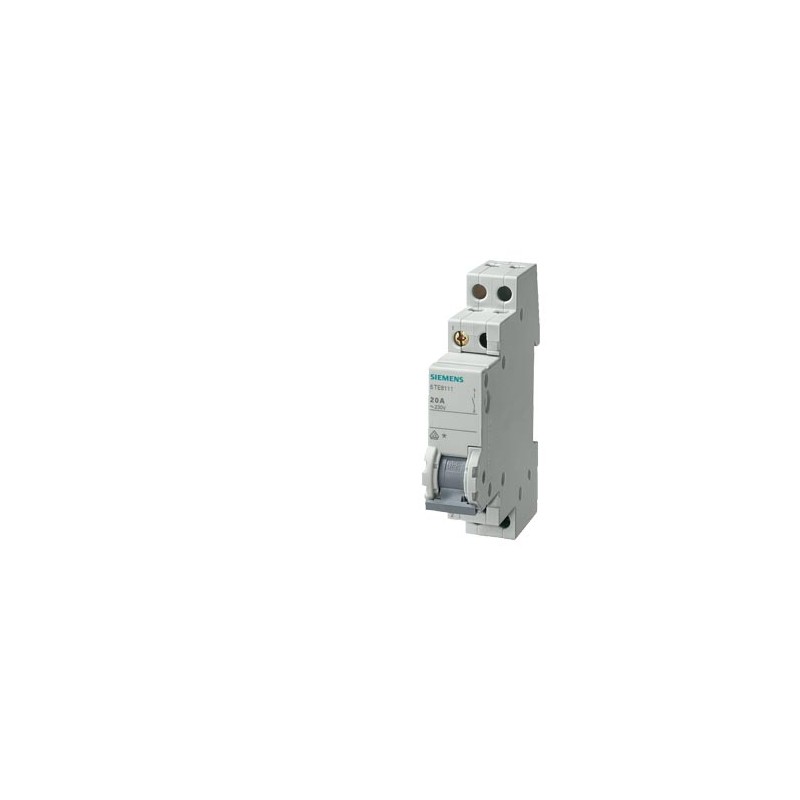

SIEMENS 5TE8114 5TE8114 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

5TE8114 SIEMENS OFF switch 20 A 3 NO+N

Reference: 5TE8114

Manufacturer: SIEMENS

Description:

OFF switch 20 A 3 NO+N
Switch 70mm, 230V, 1 mod., 6mm2, 3 poles+N, 20A. Cancelations and returns limited. Consult conditions.

Categories:

  • SIEMENS > POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > Other Modular Systems

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 116,57 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical data

OFF switch 20 A 3 NO+N
Model
product brand nameSENTRON
product designationOn/Off switches
design of the product3 NO + N
design of the switching functionOff switches
General technical data
number of poles1
short-circuit current rating10 kA
type of voltage / of the operating voltageAC
Supply voltage
operating voltage / rated value400 V
Protection class
protection class IPOther
Switching capacity
switching capacity current / rated value0.06 kA
Dissipation
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole0.7 W
Main circuit
operational current / rated value20 A
Product details
product component / signal lampNo
number of NO contacts3
Product function
product function / positive opening (acc. to DIN VDE 0113)No
connectable conductor cross-section / for flexible conductor / with core end processing
● minimum1 mm²
● maximum6 mm²
connectable conductor cross-section / for rigid conductor
● minimum1 mm²
● maximum6 mm²
tightening torque / with screw-type terminals
● minimum0.8 N·m
● maximum1 N·m
Mechanical Design
height90 mm
depth77 mm
installation depth70 mm
number of modular width units1
net weight95 g
ambient temperature / during operation
● minimum-5 °C
● maximum40 °C
ambient temperature / during storage / minimum-25 °C

Downloads and manuals

General Product ApprovalDeclaration of Conformity

Confirmation

CCC

VDE

EAC

EC/EU-Declaration of Conformity

UK Declaration of Conformity

Test Certificatesother

Miscellaneous

Type Test Certificates/Test Report

Environmental Confirmations

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/4/2022


Additional data

Product
Article Number (Market Facing Number)5TE8114
Product DescriptionOFF switch 20 A 3 NO+N
Product familySENTRON 5TE On/Off Switches
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group13D / 1BK
Surcharge for Raw MaterialsNone
Metal FactorL-P-----
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)0,095 Kg
Packaging Dimension21,00 x 93,00 x 83,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869210094
UPCNot available
Commodity Code85362010
LKZ_FDB/ CatalogIDLV10.1
Product Group5520
Group CodeP310
Country of originRomania
Compliance with the substance restrictions according to RoHS directiveSince: 01.01.2006
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-14-23-01
eClass7.127-14-23-01
eClass827-14-23-01
eClass927-14-23-01
eClass9.127-14-23-01
ETIM5EC001545
ETIM6EC001545
ETIM7EC001545
ETIM8EC001545
UNSPSC1439-12-16-26
UNSPSC1539-12-22-33

ETIM data

ETIM: EC001545 - Main switch for distribution board

Value Unit
Colour calotte (EF004668) -
Switching function (EF000189) Off switch
Number of contacts as normally open contact (EF008256) 3
Number of contacts as normally closed contact (EF008255) -
Number of contacts as change-over contact (EF008257) -
Number of poles (EF001391) 1
Rated current (EF000227) 20.0A
Rated voltage (EF000228) 400V
Min. rated voltage (EF005025) -V
Rated switching capacity (EF002563) 0.06kA
Short-circuit breaking capacity (Icw) (EF002562) 10.0kA
Voltage type (EF000187) AC
Forced segregation (according to DIN VDE 0113) (EF005450) false
With signal lamp (EF000198) false
Lamp type (EF002423) Other
Lamp socket (EF004870) Other
Max. lamp power (EF000260) -W
Width in number of modular spacings (EF002950) 1
Built-in depth (EF000218) 70.0mm
Degree of protection (IP) (EF005474) Other
