SIEMENSPOWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAROTHER MODULAR SYSTEMS5TE4812-1 SIEMENS Pushbutton 3 NO+1 NC with latching functiongray

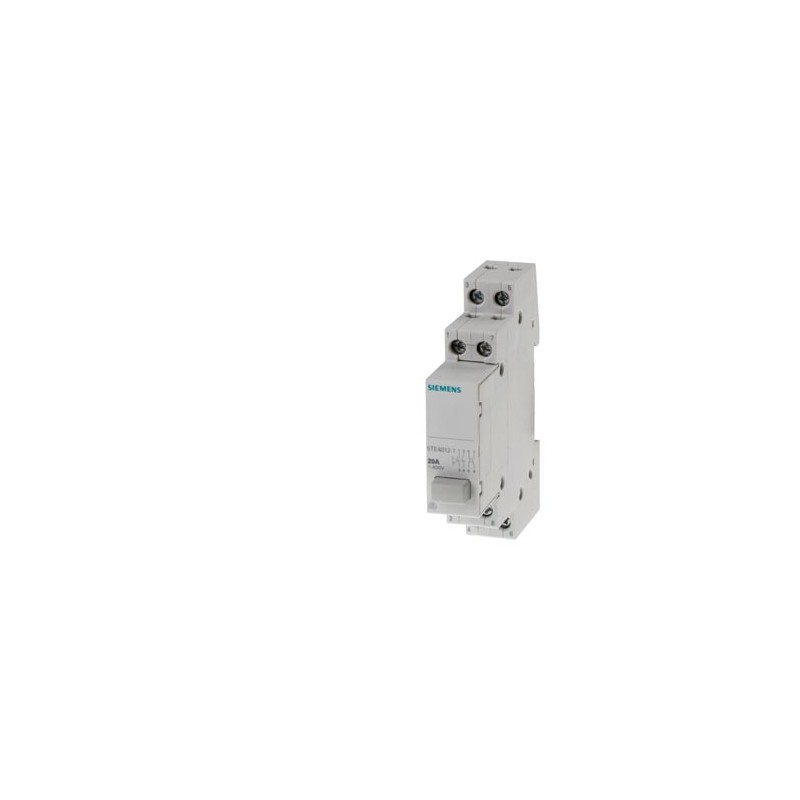

SIEMENS 5TE4812-1 5TE4812-1 - Image 1

Images are for illustrative purposes only. Please refer to data sheet for details.

5TE4812-1 SIEMENS Pushbutton 3 NO+1 NC with latching functiongray

Reference: 5TE4812-1

Manufacturer: SIEMENS

Description:

Pushbutton 3 NO+1 NC with latching functiongray
PRESSED 3NO+1NC with Mo.Contact. Cancelations and returns limited. Consult conditions.

Categories:

  • Devices for distribution board-/surface mounting > Push button for distribution board
  • SIEMENS > POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > Other Modular Systems

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

  • More Info
  • PDF
  • Reviews
Guarantee, repair and return.

Unit Price: 69,78 €

This price is per unit and is the net value (not including taxes if applicable).

Calculate price by quantity

QuantityPrice

Standard lead time: 4-6 days.

  • These delivery times are an estimate any may vary when the item order has been processed.

MORE INFO

Technical data

Pushbutton 3 NO+1 NC with latching functiongray
Model
product brand nameSENTRON
product designationPushbutton
design of the product3 NO contacts and 1 NC contact
type of light sourceLED
socket design / for light sourceothers
mechanical service life (switching cycles) / typical25 000
type of voltage / of the operating voltageAC
surge voltage resistance / rated value4 kV
Supply voltage
operating voltage / rated value400 V
Protection class
protection class IPIP20
making capacity current60 A
breaking capacity current60 A
Dissipation
power loss [W]
● for rated value of the current / at AC / in hot operating state / per pole0.6 W
● maximum0.6 W
Current
operational current / at AC / rated value20 A
Appearance
color
● of the buttongrey
Product details
product component / signal lampNo
number of NC contacts1
number of NO contacts3
number of CO contacts0
Display and operation
number of keys1
connectable conductor cross-section / for flexible conductor / with core end processing
● minimum1 mm²
● maximum6 mm²
connectable conductor cross-section / for rigid conductor
● minimum1 mm²
● maximum6 mm²
tightening torque / with screw-type terminals
● minimum0.8 N·m
● maximum1 N·m
Mechanical Design
height90 mm
depth70 mm
installation depth70 mm
number of modular width units1
net weight80 g
ambient temperature / during operation
● minimum-5 °C
● maximum40 °C

Downloads and manuals

General Product ApprovalDeclaration of Conformity

Confirmation

CCC

VDE

EAC

EC/EU-Declaration of Conformity

UK Declaration of Conformity

other

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/5/2022


Additional data

Product
Article Number (Market Facing Number)5TE4812-1
Product DescriptionPushbutton 3 NO+1 NC with latching functiongray
Product familySENTRON 5TE4 Pushbuttons
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group13D / 1BK
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works5 Day/Days
Net Weight (kg)0,094 Kg
Packaging Dimension21,00 x 93,00 x 83,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869547855
UPCNot available
Commodity Code85362010
LKZ_FDB/ CatalogIDLV10
Product Group5520
Group CodeP310
Country of originRomania
Compliance with the substance restrictions according to RoHS directiveSince: 01.01.2006
Product classB: return restricted, please contact your Siemens partner/contact
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-14-23-02
eClass7.127-14-23-02
eClass827-14-23-02
eClass927-14-23-02
eClass9.127-14-23-02
ETIM5EC001546
ETIM6EC001546
ETIM7EC001546
ETIM8EC001546
UNSPSC1539-12-22-33

ETIM data

ETIM: EC001546 - Push button for distribution board

Value Unit
Lamp voltage (EF008856) -V
Switching voltage (EF003586) -V
Switching current (EF000188) -A
Number of contacts as normally closed contact (EF008255) 1
Number of contacts as normally open contact (EF008256) 3
Number of contacts as change-over contact (EF008257) 0
Voltage type (EF000187) AC
With signal lamp (EF000198) false
Colour calotte (EF004668) Not applicable
Lamp type (EF002423) Not applicable
Lamp socket (EF004870) Not applicable
Max. lamp power (EF000260) -W
Colour button (EF000190) Grey
Width in number of modular spacings (EF002950) 1
Built-in depth (EF000218) 70.0mm
Degree of protection (IP) (EF005474) IP20
