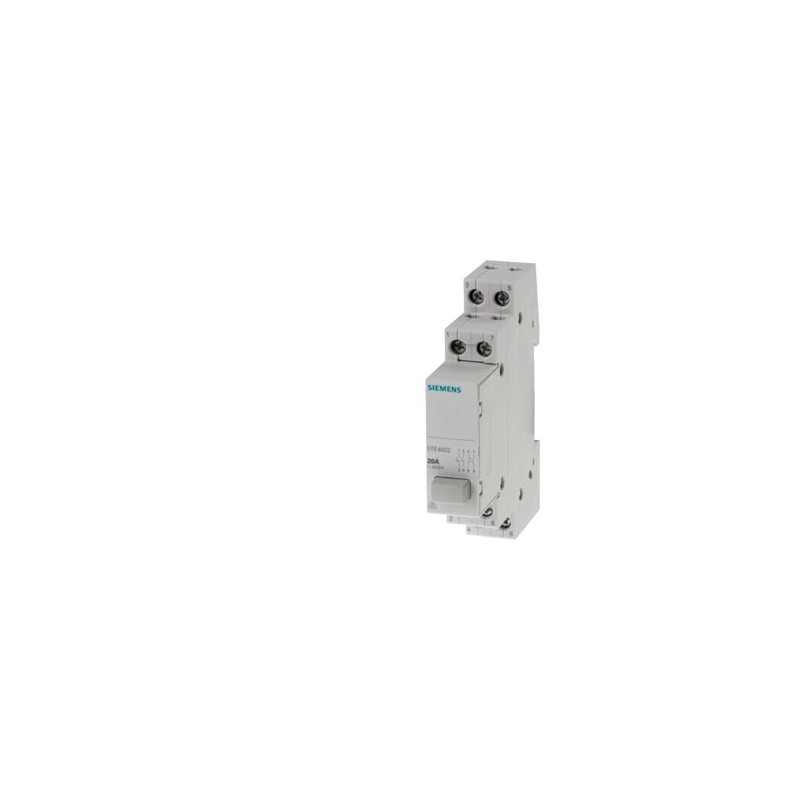

5TE4802 SIEMENS Pushbutton 3 NO+1 NC Without latching function,gray
5TE4802
SIEMENS
Pushbutton 3 NO+1 NC Without latching function,gray
PUSH BUTTON 3NO+1NC W/o Mo.Contact. Cancelations and returns limited. Consult conditions.
Devices for distribution board-/surface mounting > Push button for distribution board
POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > Other Modular Systems
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Related products
▲Best sellers
▲More info
▲Technical data
Additional data
| Product | ||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 5TE4802 | |||||||||||||||||||||||||||||||||
| Product Description | Pushbutton 3 NO+1 NC Without latching function,gray | |||||||||||||||||||||||||||||||||
| Product family | SENTRON 5TE4 Pushbuttons | |||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | |||||||||||||||||||||||||||||||||
| Price data | ||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 13D / 1BK | |||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | |||||||||||||||||||||||||||||||||
| Metal Factor | None | |||||||||||||||||||||||||||||||||
| Delivery information | ||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | |||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 5 Day/Days | |||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,092 Kg | |||||||||||||||||||||||||||||||||
| Packaging Dimension | 21,00 x 93,00 x 83,00 | |||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | |||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | |||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | |||||||||||||||||||||||||||||||||
| Additional Product Information | ||||||||||||||||||||||||||||||||||
| EAN | 4001869547862 | |||||||||||||||||||||||||||||||||
| UPC | Not available | |||||||||||||||||||||||||||||||||
| Commodity Code | 85365080 | |||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10 | |||||||||||||||||||||||||||||||||
| Product Group | 5520 | |||||||||||||||||||||||||||||||||
| Group Code | P310 | |||||||||||||||||||||||||||||||||
| Country of origin | Romania | |||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.01.2006 | |||||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | |||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | |||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| |||||||||||||||||||||||||||||||||
| Classifications | ||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||
ETIM data
ETIM: EC001546 - Push button for distribution board
| Value | Unit | |
|---|---|---|
| Switching current (EF000188) | - | A |
| Lamp voltage (EF008856) | - | V |
| Switching voltage (EF003586) | - | V |
| Number of contacts as normally closed contact (EF008255) | 1 | |
| Number of contacts as normally open contact (EF008256) | 3 | |
| Number of contacts as change-over contact (EF008257) | 0 | |
| Voltage type (EF000187) | AC | |
| With signal lamp (EF000198) | false | |
| Colour calotte (EF004668) | Not applicable | |
| Lamp type (EF002423) | Not applicable | |
| Lamp socket (EF004870) | Not applicable | |
| Max. lamp power (EF000260) | - | W |
| Colour button (EF000190) | Grey | |
| Width in number of modular spacings (EF002950) | 1 | |
| Built-in depth (EF000218) | 70.0 | mm |
| Degree of protection (IP) (EF005474) | IP20 |
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 5TE4802 5TE4802 EN_5TE4802.pdf | 226 Kbytes |
|
