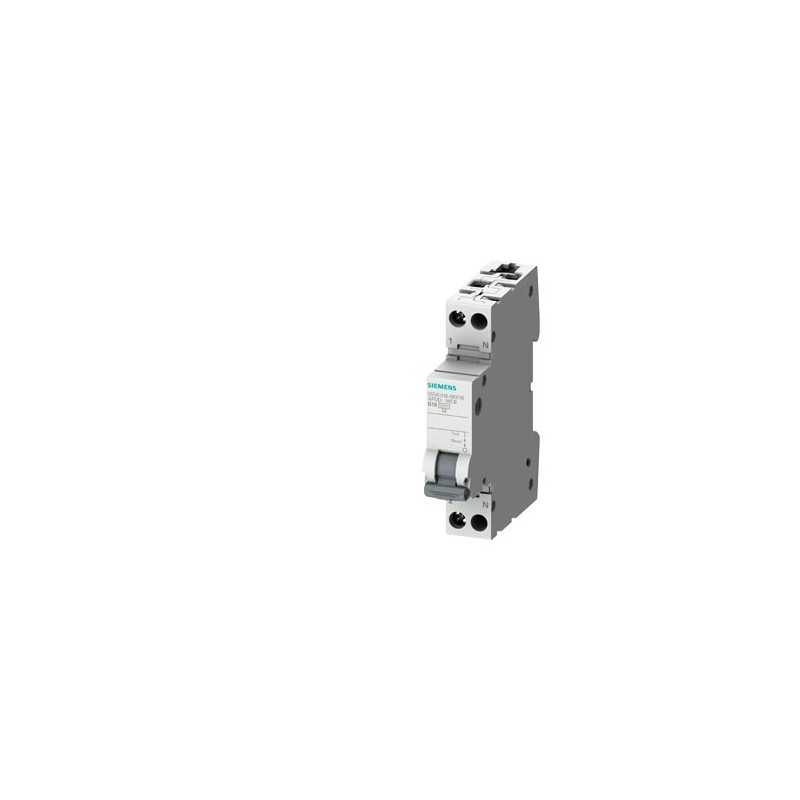

5SV6016-6KK32 SIEMENS AFDD-MCB-Combination 230V, 6kA, 2pole, B, 32A Compact (1MW) View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

5SV6016-6KK32 SIEMENS AFDD-MCB-Combination 230V, 6kA, 2pole, B, 32A Compact (1MW)

5SV6016-6KK32

SIEMENS

AFDD-MCB-Combination 230V, 6kA, 1+N, B, 32A Compact (1MW)

Comb. int.aut. arc detector 230 V, 6 kA, 2 poles, B, 32 A compact (1 mod.)

More details


POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > Tertiary differential switches up to 80 A

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $368.95
Unit price: $368.95
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

AFDD-MCB-Combination 230V, 6kA, 1+N, B, 32A Compact (1MW)
Model
product brand nameSENTRON
design of the productCompact unit
General technical data
number of poles2
design of pole1P+N
tripping characteristic classB
size of installation devices / according to DIN 438801
touch protection against electrical shock / according to EN 50274finger and back-of-hand safe
mechanical service life (switching cycles) / typical10 000
switching function / short-term delayedNo
overvoltage categoryIII
degree of pollution2
type of voltage / of the operating voltageAC
Supply voltage
supply voltage
● at AC / rated value230 V
value range / of the supply voltage frequency50Hz
Protection class
protection class IPIP20, with connected protective device and conductors
Switching capacity
switching capacity current
● according to EN 60898-1 / rated value6 000 A
● according to IEC 60947-2 / rated value6 000 A
Dissipation
power loss [W] / for rated value of the current / at AC / in hot operating state / per pole2.85 W
Current
tripping current
● in the event of electrical arcs in parallel with the load / minimum50 A
● in the event of electrical arcs in parallel with the load / maximum500 A
● in the event of electrical arcs in series with the load / minimum2 A
● in the event of electrical arcs in series with the load / maximum32 A
operational current / at AC / rated value32 A
Product details
product feature
● halogen-freeYes
● silicon-freeYes
product extension / installable / supplementary devicesYes
Connections
connectable conductor cross-section / solid
● minimum0.75 mm²
● maximum16 mm²
connectable conductor cross-section / stranded
● minimum0.75 mm²
● maximum16 mm²
connectable conductor cross-section / finely stranded / with core end processing
● minimum0.75 mm²
● maximum10 mm²
tightening torque / with screw-type terminals
● minimum1.2 N·m
● maximum2 N·m
position / of power supply cordany
Mechanical Design
height90 mm
width18 mm
depth68.5 mm
installation depth70 mm
number of modular width units1
fastening methodDIN rail (REG)
mounting positionany
net weight150 g
Environmental conditions
ambient temperature / during operation
● minimum-25 °C
● maximum45 °C
ambient temperature / during storage
● minimum-40 °C
● maximum75 °C
ambient temperature / with relative humidity 95%55 °C
number of test cycles / for environmental testing / according to IEC 60068-2-3028

Downloads and manuals

General Product ApprovalDeclaration of ConformityTest Certificates

Confirmation

VDE

EAC

UK Declaration of Conformity

EC/EU-Declaration of Conformity

Miscellaneous

other

Miscellaneous

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, ...)
CAx-Online-Generator
Tender specifications
Date
5/5/2022


Additional data

Product
Article Number (Market Facing Number)5SV6016-6KK32
Product DescriptionAFDD-MCB-Combination 230V, 6kA, 1+N, B, 32A Compact (1MW)
Product familyOrdering Data Overview
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group13E / 1BA
Surcharge for Raw MaterialsNone
Metal FactorL-A-----
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works2 Day/Days
Net Weight (kg)0,139 Kg
Packaging Dimension80,00 x 100,00 x 44,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4001869565026
UPCNot available
Commodity Code85362010
LKZ_FDB/ CatalogIDLV10
Product Group5546
Group CodeP310
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.01.2018
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.
