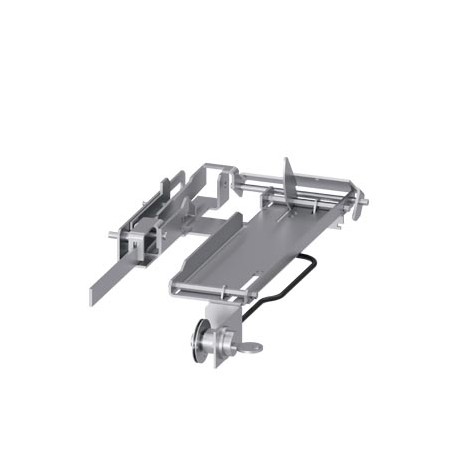

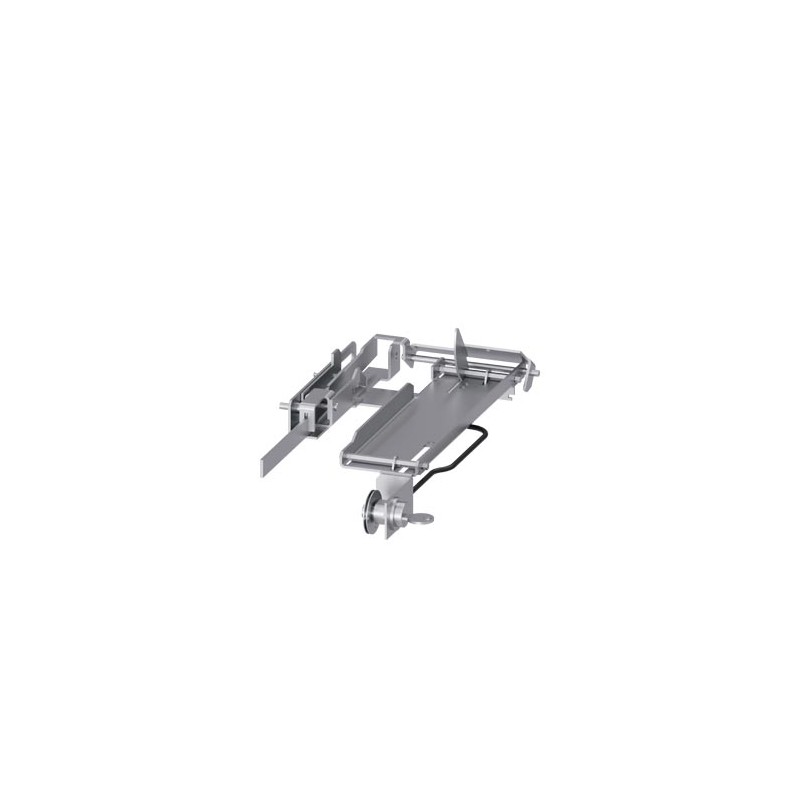

3WA9111-0BA83 SIEMENS accessories for 3WA circuit breaker, locking provision to prevent movement of withdraw..
3WA9111-0BA83
SIEMENS
accessories for 3WA circuit breaker, locking provision to prevent movement of withdrawable circuit breaker in disconnected position (Bowden cable and lock in control cabinet door) made by PROFALUX. Spare part for Z option R85.
Accessories 3WA circuit breaker, locking device against unauthorized connection of the interr. removable automatic in sectioning position, composed of traction cable and lock on the cabinet door, Profalux brand key control spare for Z-Option R85. Cancelations and returns limited. Consult conditions.
POWER DISTRIBUTION AND LOW VOLTAGE SWITCHGEAR > 3WL Air Circuit Breakers
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Best sellers
▲More info
▲| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3WA9111-0BA83 | ||||||||||||||||||||||||||||||||||||
| Product Description | accessories for 3WA circuit breaker, locking provision to prevent movement of withdrawable circuit breaker in disconnected position (Bowden cable and lock in control cabinet door) made by PROFALUX. Spare part for Z option R85. | ||||||||||||||||||||||||||||||||||||
| Product family | 3WA1 Accessories and Spare Parts | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 12O / 53E | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : N | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 5 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 1,5817 Kg | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 90,00 x 140,00 x 61,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4001869579399 | ||||||||||||||||||||||||||||||||||||
| UPC | Not available | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85389099 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | LV10 | ||||||||||||||||||||||||||||||||||||
| Product Group | X0UL | ||||||||||||||||||||||||||||||||||||
| Group Code | P360 | ||||||||||||||||||||||||||||||||||||
| Country of origin | France | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.07.2020 | ||||||||||||||||||||||||||||||||||||
| Product class | B: return restricted, please contact your Siemens partner/contact | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | No | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| SCIP number | |||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
Datasheet - PDF
▲| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 3WA9111-0BA83 EN_3WA9111-0BA83.pdf | 399 Kbytes |
|
