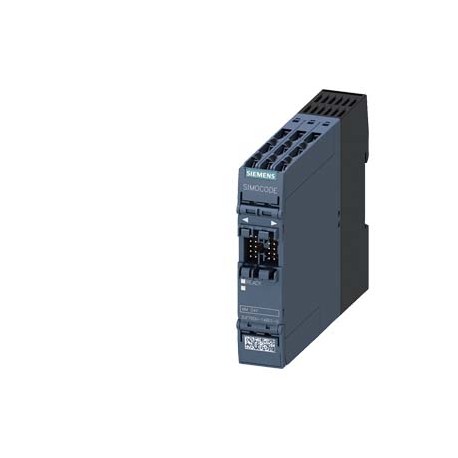

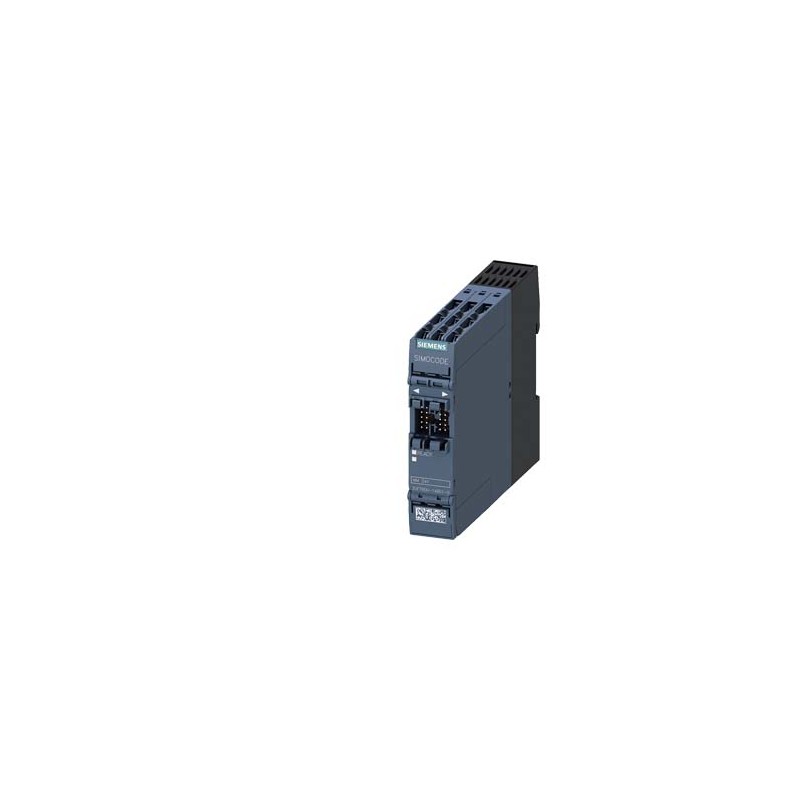

3UF7600-1AB01-0
SIEMENS
1
Multifunctional module, 4 inputs and 2 relay outputs, input voltage 24 V DC, relay outputs monostable, analog residual current detection, with residual-current transformer 3UL23 Connection temperature sensor Pt100/Pt1000/KTY/NTC, max. 1 multifunctional module per basic unit SIMOCODE pro S
CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE
Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS
Thank you for your interest in our products; we hope the delivery time indicated is to your convenience.
While the order is being processed you can select the type of shipment that best suits your needs: 24-hour air express, standard 48-72 hour land, etc.
| Multifunctional module, 4 inputs and 2 relay outputs, input voltage 24 V DC, relay outputs monostable, analog residual current detection, with residual-current transformer 3UL23 Connection temperature sensor Pt100/Pt1000/KTY/NTC, max. 1 multifunctional module per basic unit SIMOCODE pro S | ||||||||||||||||||||||||||||||||||||||
| product brand name | SIRIUS | |||||||||||||||||||||||||||||||||||||
| product designation | Multifunction module | |||||||||||||||||||||||||||||||||||||
| manufacturer's article number | ||||||||||||||||||||||||||||||||||||||
| ● 1 of residual current transformer connectable | 3UL2302-1A | |||||||||||||||||||||||||||||||||||||
| ● 2 of residual current transformer connectable | 3UL2303-1A | |||||||||||||||||||||||||||||||||||||
| ● 3 of residual current transformer connectable | 3UL2304-1A | |||||||||||||||||||||||||||||||||||||
| ● 4 of residual current transformer connectable | 3UL2305-1A | |||||||||||||||||||||||||||||||||||||
| ● 5 of residual current transformer connectable | 3UL2306-1A | |||||||||||||||||||||||||||||||||||||
| ● 6 of residual current transformer connectable | 3UL2307-1A | |||||||||||||||||||||||||||||||||||||
| General technical data | ||||||||||||||||||||||||||||||||||||||
| type of current for monitoring | Type A (alternating currents and pulsing DC residual currents) | |||||||||||||||||||||||||||||||||||||
| response time maximum | 0.1 s | |||||||||||||||||||||||||||||||||||||
| product function residual current display | Yes | |||||||||||||||||||||||||||||||||||||
| adjustable current response value current | 40 ... 0.03 A | |||||||||||||||||||||||||||||||||||||
| product component | ||||||||||||||||||||||||||||||||||||||
| ● input for thermistor connection | No | |||||||||||||||||||||||||||||||||||||
| ● digital input | Yes | |||||||||||||||||||||||||||||||||||||
| ● input for residual current converter | Yes | |||||||||||||||||||||||||||||||||||||
| ● input for analog temperature sensors | Yes | |||||||||||||||||||||||||||||||||||||
| ● input for ground fault detection | Yes | |||||||||||||||||||||||||||||||||||||
| ● relay output | Yes | |||||||||||||||||||||||||||||||||||||
| consumed active power | 0.8 W | |||||||||||||||||||||||||||||||||||||
| insulation voltage with degree of pollution 3 at AC rated value | 300 V | |||||||||||||||||||||||||||||||||||||
| surge voltage resistance rated value | 4 000 V | |||||||||||||||||||||||||||||||||||||
| protection class IP | IP20 | |||||||||||||||||||||||||||||||||||||
| shock resistance | ||||||||||||||||||||||||||||||||||||||
| ● when mounted on current measuring module according to IEC 60068-2-27 | 10 g / 11 ms | |||||||||||||||||||||||||||||||||||||
| ● according to IEC 60068-2-27 | 15g / 11 ms | |||||||||||||||||||||||||||||||||||||
| vibration resistance | ||||||||||||||||||||||||||||||||||||||
| ● according to IEC 60068-2-6 | 1 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g | |||||||||||||||||||||||||||||||||||||
| ● when mounted on current measuring module according to IEC 60068-2-6 | 1 ... 4 Hz / 15 mm, 4 ... 500 Hz / 1g | |||||||||||||||||||||||||||||||||||||
| switching capacity current of the NO contacts of the relay outputs at AC-15 | ||||||||||||||||||||||||||||||||||||||
| ● at 24 V | 6 A | |||||||||||||||||||||||||||||||||||||
| ● at 120 V | 6 A | |||||||||||||||||||||||||||||||||||||
| ● at 230 V | 3 A | |||||||||||||||||||||||||||||||||||||
| switching capacity current of the NO contacts of the relay outputs at DC-13 | ||||||||||||||||||||||||||||||||||||||
| ● at 24 V | 2 A | |||||||||||||||||||||||||||||||||||||
| ● at 60 V | 0.55 A | |||||||||||||||||||||||||||||||||||||
| ● at 125 V | 0.25 A | |||||||||||||||||||||||||||||||||||||
| mechanical service life (switching cycles) typical | 10 000 000 | |||||||||||||||||||||||||||||||||||||
| electrical endurance (switching cycles) typical | 100 000 | |||||||||||||||||||||||||||||||||||||
| buffering time in the event of power failure | 0.02 s | |||||||||||||||||||||||||||||||||||||
| reference code according to IEC 81346-2 | F | |||||||||||||||||||||||||||||||||||||
| continuous current of the NO contacts of the relay outputs | ||||||||||||||||||||||||||||||||||||||
| ● at 50 °C | 6 A | |||||||||||||||||||||||||||||||||||||
| ● at 60 °C | 5 A | |||||||||||||||||||||||||||||||||||||
| Substance Prohibitance (Date) | 05/01/2012 | |||||||||||||||||||||||||||||||||||||
| certificate of suitability according to ATEX directive 2014/34/EU | BVS 06 ATEX F001 | |||||||||||||||||||||||||||||||||||||
| explosion device group and category according to ATEX directive 2014/34/EU | II (2) G, II (2 ) D, I (M2) | |||||||||||||||||||||||||||||||||||||
| measurable temperature | ||||||||||||||||||||||||||||||||||||||
| ● with NTC minimum | 80 °C | |||||||||||||||||||||||||||||||||||||
| ● with NTC maximum | 160 °C | |||||||||||||||||||||||||||||||||||||
| ● with KTY 84 minimum | -40 °C | |||||||||||||||||||||||||||||||||||||
| ● with KTY 84 maximum | 300 °C | |||||||||||||||||||||||||||||||||||||
| ● with KTY 83-110 minimum | -50 °C | |||||||||||||||||||||||||||||||||||||
| ● with KTY 83-110 maximum | 175 °C | |||||||||||||||||||||||||||||||||||||
| ● with Pt 1000 minimum | -50 °C | |||||||||||||||||||||||||||||||||||||
| ● with Pt 1000 maximum | 500 °C | |||||||||||||||||||||||||||||||||||||
| ● with Pt 100 minimum | -50 °C | |||||||||||||||||||||||||||||||||||||
| ● with Pt 100 maximum | 500 °C | |||||||||||||||||||||||||||||||||||||
| relative temperature-related measurement deviation at 20 °C | 2 % | |||||||||||||||||||||||||||||||||||||
| sensor current for Pt 100 typical | 1 mA | |||||||||||||||||||||||||||||||||||||
| sensor current for Pt 1000/KTY 83-110/KTY 84/NTC typical | 0.2 mA | |||||||||||||||||||||||||||||||||||||
| diagnostics function at sensor input with residual current transformer | ||||||||||||||||||||||||||||||||||||||
| ● short-circuit detection | Yes | |||||||||||||||||||||||||||||||||||||
| ● open-circuit detection | Yes | |||||||||||||||||||||||||||||||||||||
| diagnostics function at sensor input with Pt 100 | ||||||||||||||||||||||||||||||||||||||
| ● short-circuit detection | Yes | |||||||||||||||||||||||||||||||||||||
| ● open-circuit detection | Yes | |||||||||||||||||||||||||||||||||||||
| diagnostics function at sensor input with Pt 1000 | ||||||||||||||||||||||||||||||||||||||
| ● short-circuit detection | Yes | |||||||||||||||||||||||||||||||||||||
| ● open-circuit detection | Yes | |||||||||||||||||||||||||||||||||||||
| diagnostics function at sensor input with KTY 83-110 | ||||||||||||||||||||||||||||||||||||||
| ● short-circuit detection | Yes | |||||||||||||||||||||||||||||||||||||
| ● open-circuit detection | Yes | |||||||||||||||||||||||||||||||||||||
| diagnostics function at sensor input with KTY 84 | ||||||||||||||||||||||||||||||||||||||
| ● short-circuit detection | Yes | |||||||||||||||||||||||||||||||||||||
| ● open-circuit detection | Yes | |||||||||||||||||||||||||||||||||||||
| diagnostics function at sensor input with NTC | ||||||||||||||||||||||||||||||||||||||
| ● short-circuit detection | Yes | |||||||||||||||||||||||||||||||||||||
| ● open-circuit detection | No | |||||||||||||||||||||||||||||||||||||
| type of connection technology of sensor circuit | 2-wire or 3-wire connection | |||||||||||||||||||||||||||||||||||||
| A/D conversion time at sensor circuit | 500 ms | |||||||||||||||||||||||||||||||||||||
| measurable line frequency initial value | 16 Hz | |||||||||||||||||||||||||||||||||||||
| measurable line frequency full-scale value | 400 Hz | |||||||||||||||||||||||||||||||||||||
| relative measurement deviation of residual current transformer | 7.5 % | |||||||||||||||||||||||||||||||||||||
| Electromagnetic compatibility | ||||||||||||||||||||||||||||||||||||||
| EMC emitted interference according to IEC 60947-1 | class A | |||||||||||||||||||||||||||||||||||||
| EMC immunity according to IEC 60947-1 | corresponds to degree of severity 3 | |||||||||||||||||||||||||||||||||||||
| conducted interference | ||||||||||||||||||||||||||||||||||||||
| ● due to burst according to IEC 61000-4-4 | 2 kV (power ports) / 1 kV (signal ports) | |||||||||||||||||||||||||||||||||||||
| ● due to conductor-earth surge according to IEC 61000-4-5 | 2 kV | |||||||||||||||||||||||||||||||||||||
| ● due to conductor-conductor surge according to IEC 61000-4-5 | 1 kV | |||||||||||||||||||||||||||||||||||||
| ● due to high-frequency radiation according to IEC 61000-4-6 | 10 V | |||||||||||||||||||||||||||||||||||||
| field-based interference according to IEC 61000-4-3 | 10 V/m | |||||||||||||||||||||||||||||||||||||
| electrostatic discharge according to IEC 61000-4-2 | 6 kV contact discharge / 8 kV air discharge | |||||||||||||||||||||||||||||||||||||
| conducted HF interference emissions according to CISPR11 | corresponds to degree of severity A | |||||||||||||||||||||||||||||||||||||
| field-bound HF interference emission according to CISPR11 | corresponds to degree of severity A | |||||||||||||||||||||||||||||||||||||
| Inputs/ Outputs | ||||||||||||||||||||||||||||||||||||||
| product function | ||||||||||||||||||||||||||||||||||||||
| ● parameterizable inputs | Yes | |||||||||||||||||||||||||||||||||||||
| ● parameterizable outputs | Yes | |||||||||||||||||||||||||||||||||||||
| number of inputs | 4 | |||||||||||||||||||||||||||||||||||||
| number of digital inputs | 4 | |||||||||||||||||||||||||||||||||||||
| ● with a common reference potential | 4 | |||||||||||||||||||||||||||||||||||||
| digital input version | ||||||||||||||||||||||||||||||||||||||
| ● type 1 acc. to IEC 61131 | No | |||||||||||||||||||||||||||||||||||||
| ● type 2 acc. to IEC 61131 | Yes | |||||||||||||||||||||||||||||||||||||
| number of analog inputs | 0 | |||||||||||||||||||||||||||||||||||||
| number of sensor inputs | ||||||||||||||||||||||||||||||||||||||
| ● for ground fault detection | 1 | |||||||||||||||||||||||||||||||||||||
| ● for temperature measurement | 1 | |||||||||||||||||||||||||||||||||||||
| input voltage at digital input at DC rated value | 24 V | |||||||||||||||||||||||||||||||||||||
| number of outputs | 2 | |||||||||||||||||||||||||||||||||||||
| number of semiconductor outputs | 0 | |||||||||||||||||||||||||||||||||||||
| number of outputs as contact-affected switching element | 2 | |||||||||||||||||||||||||||||||||||||
| number of analog outputs | 0 | |||||||||||||||||||||||||||||||||||||
| switching behavior | monostable | |||||||||||||||||||||||||||||||||||||
| property of contacts of the relay outputs | Floating NO contacts (NC reaction parameterizable via internal signal conditioning), of which 2 relay outputs connected to common ground and one relay output separately, can be freely assigned to the control functions (e.g. line, star (wye), delta contactor or signaling of the operating state) | |||||||||||||||||||||||||||||||||||||
| wire length for digital signals maximum | 300 m | |||||||||||||||||||||||||||||||||||||
| Protective and monitoring functions | ||||||||||||||||||||||||||||||||||||||
| product function ground fault detection | Yes | |||||||||||||||||||||||||||||||||||||
| design of the sensor for temperature measurement connectable | PT100 / PT1000 / KTY83-110 / KTY84 / NTC | |||||||||||||||||||||||||||||||||||||
| Precision | ||||||||||||||||||||||||||||||||||||||
| temperature drift per °C | 0.05 %/°C | |||||||||||||||||||||||||||||||||||||
| Installation/ mounting/ dimensions | ||||||||||||||||||||||||||||||||||||||
| mounting position | any | |||||||||||||||||||||||||||||||||||||
| height | 100 mm | |||||||||||||||||||||||||||||||||||||
| width | 22.5 mm | |||||||||||||||||||||||||||||||||||||
| depth | 124.5 mm | |||||||||||||||||||||||||||||||||||||
| required spacing | ||||||||||||||||||||||||||||||||||||||
| ● top | 40 mm | |||||||||||||||||||||||||||||||||||||
| ● bottom | 40 mm | |||||||||||||||||||||||||||||||||||||
| ● left | 0 mm | |||||||||||||||||||||||||||||||||||||
| ● right | 0 mm | |||||||||||||||||||||||||||||||||||||
| diameter of inlet opening of connectable residual current transformer | 35 ... 210 mm | |||||||||||||||||||||||||||||||||||||
| Connections/ Terminals | ||||||||||||||||||||||||||||||||||||||
| product component removable terminal for auxiliary and control circuit | Yes | |||||||||||||||||||||||||||||||||||||
| type of connectable conductor cross-sections | ||||||||||||||||||||||||||||||||||||||
| ● solid | 1x (0.5 ... 2.5 mm²), 2x ( 0.5 ... 1.5 mm²) | |||||||||||||||||||||||||||||||||||||
| ● finely stranded with core end processing | 1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.0 mm²) | |||||||||||||||||||||||||||||||||||||
| ● at AWG cables solid | 1x (20 ... 14), 2x (20 ... 16) | |||||||||||||||||||||||||||||||||||||
| ● at AWG cables stranded | 1x (20 ... 12), 2x (20 ... 14) | |||||||||||||||||||||||||||||||||||||
| tightening torque with screw-type terminals | 0.6 ... 0.8 N·m | |||||||||||||||||||||||||||||||||||||
| tightening torque [lbf·in] with screw-type terminals | 5.2 ... 7 lbf·in | |||||||||||||||||||||||||||||||||||||
| Ambient conditions | ||||||||||||||||||||||||||||||||||||||
| installation altitude at height above sea level | ||||||||||||||||||||||||||||||||||||||
| ● 1 maximum | 2 000 m | |||||||||||||||||||||||||||||||||||||
| ● 2 maximum | 3 000 m; max. +50 °C (no protective separation) | |||||||||||||||||||||||||||||||||||||
| ● 3 maximum | 4 000 m; No protective separation at 40 °C | |||||||||||||||||||||||||||||||||||||
| ambient temperature | ||||||||||||||||||||||||||||||||||||||
| ● during operation | -25 ... +60 °C | |||||||||||||||||||||||||||||||||||||
| ● during storage | -40 ... +80 °C | |||||||||||||||||||||||||||||||||||||
| ● during transport | -40 ... +80 °C | |||||||||||||||||||||||||||||||||||||
| environmental category | ||||||||||||||||||||||||||||||||||||||
| ● during operation according to IEC 60721 | 3K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6 | |||||||||||||||||||||||||||||||||||||
| ● during storage according to IEC 60721 | 1K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4 | |||||||||||||||||||||||||||||||||||||
| ● during transport according to IEC 60721 | 2K2, 2C1, 2S1, 2M2 | |||||||||||||||||||||||||||||||||||||
| relative humidity during operation | 10 ... 95 % | |||||||||||||||||||||||||||||||||||||
| contact rating of auxiliary contacts according to UL | B300 / R300 | |||||||||||||||||||||||||||||||||||||
| Short-circuit protection | ||||||||||||||||||||||||||||||||||||||
| design of short-circuit protection per output | Fuse links: gG 6 A, quick-response 10 A (IEC 60947-5-1), miniature circuit-breaker C char.: 1.6 A (IEC 60947-5-1) or 6 A (I_K < 500 A) | |||||||||||||||||||||||||||||||||||||
| Safety related data | ||||||||||||||||||||||||||||||||||||||
| touch protection against electrical shock | finger-safe | |||||||||||||||||||||||||||||||||||||
| Galvanic isolation | ||||||||||||||||||||||||||||||||||||||
| (electrically) protective separation according to IEC 60947-1 | All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information) | |||||||||||||||||||||||||||||||||||||
| galvanic isolation between inputs and electronics | No | |||||||||||||||||||||||||||||||||||||
| Control circuit/ Control | ||||||||||||||||||||||||||||||||||||||
| type of voltage of the control supply voltage | DC | |||||||||||||||||||||||||||||||||||||
| control supply voltage at DC | ||||||||||||||||||||||||||||||||||||||
| ● rated value | 24 V | |||||||||||||||||||||||||||||||||||||
| operating range factor control supply voltage rated value at DC | ||||||||||||||||||||||||||||||||||||||
| ● initial value | 0.8 | |||||||||||||||||||||||||||||||||||||
| ● full-scale value | 1.2 | |||||||||||||||||||||||||||||||||||||
| Certificates/ approvals | ||||||||||||||||||||||||||||||||||||||
Downloads and manuals | ||||||||||||||||||||||||||||||||||||||
| ||||||||||||||||||||||||||||||||||||||
| Further information | ||||||||||||||||||||||||||||||||||||||
Information- and Downloadcenter (Catalogs, Brochures,…) | ||||||||||||||||||||||||||||||||||||||
Industry Mall (Online ordering system) | ||||||||||||||||||||||||||||||||||||||
Cax online generator | ||||||||||||||||||||||||||||||||||||||
Service&Support (Manuals, Certificates, Characteristics, FAQs,...) | ||||||||||||||||||||||||||||||||||||||
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...) | ||||||||||||||||||||||||||||||||||||||
Test report No. A0258, protective separation | ||||||||||||||||||||||||||||||||||||||
| last modified: | 4/7/2022 | |||||||||||||||||||||||||||||||||||||
| Date 5/9/2022 | Subject to change without notice © Copyright Siemens 2022 | |||||||||||||||||||||||||||||||||||||
| Product | |||||||||||||||||||||||||||||||||||||
| Article Number (Market Facing Number) | 3UF7600-1AB01-0 | ||||||||||||||||||||||||||||||||||||
| Product Description | Multifunctional module, 4 inputs and 2 relay outputs, input voltage 24 V DC, relay outputs monostable, analog residual current detection, with residual-current transformer 3UL23 Connection temperature sensor Pt100/Pt1000/KTY/NTC, max. 1 multifunctional module per basic unit SIMOCODE pro S | ||||||||||||||||||||||||||||||||||||
| Product family | SIMOCODE pro 3UF7 motor management and control devices | ||||||||||||||||||||||||||||||||||||
| Product Lifecycle (PLM) | PM300:Active Product | ||||||||||||||||||||||||||||||||||||
| Price data | |||||||||||||||||||||||||||||||||||||
| Region Specific PriceGroup / Headquarter Price Group | 42J / 42J | ||||||||||||||||||||||||||||||||||||
| Surcharge for Raw Materials | None | ||||||||||||||||||||||||||||||||||||
| Metal Factor | None | ||||||||||||||||||||||||||||||||||||
| Delivery information | |||||||||||||||||||||||||||||||||||||
| Export Control Regulations | AL : N / ECCN : EAR99 | ||||||||||||||||||||||||||||||||||||
| Standard lead time ex-works | 1 Day/Days | ||||||||||||||||||||||||||||||||||||
| Net Weight (kg) | 0,233 Kg | ||||||||||||||||||||||||||||||||||||
| Packaging Dimension | 36,00 x 109,00 x 152,00 | ||||||||||||||||||||||||||||||||||||
| Package size unit of measure | MM | ||||||||||||||||||||||||||||||||||||
| Quantity Unit | 1 Piece | ||||||||||||||||||||||||||||||||||||
| Packaging Quantity | 1 | ||||||||||||||||||||||||||||||||||||
| Additional Product Information | |||||||||||||||||||||||||||||||||||||
| EAN | 4011209916227 | ||||||||||||||||||||||||||||||||||||
| UPC | 887621549282 | ||||||||||||||||||||||||||||||||||||
| Commodity Code | 85389091 | ||||||||||||||||||||||||||||||||||||
| LKZ_FDB/ CatalogID | CC-IC10 | ||||||||||||||||||||||||||||||||||||
| Product Group | 5836 | ||||||||||||||||||||||||||||||||||||
| Group Code | R711 | ||||||||||||||||||||||||||||||||||||
| Country of origin | Germany | ||||||||||||||||||||||||||||||||||||
| Compliance with the substance restrictions according to RoHS directive | Since: 01.05.2012 | ||||||||||||||||||||||||||||||||||||
| Product class | A: Standard product which is a stock item could be returned within the returns guidelines/period. | ||||||||||||||||||||||||||||||||||||
| WEEE (2012/19/EU) Take-Back Obligation | Yes | ||||||||||||||||||||||||||||||||||||
| REACH Art. 33 Duty to inform according to the current list of candidates |
| ||||||||||||||||||||||||||||||||||||
| Classifications | |||||||||||||||||||||||||||||||||||||
| |||||||||||||||||||||||||||||||||||||
| Value | Unit | |
|---|---|---|
| Rated control supply voltage Us at DC (EF003980) | - | V |
| Input for analogue temperature sensor (EF007114) | - | |
| Number of analogue inputs (EF001994) | - | |
| Voltage type for actuating (EF008242) | - | |
| Number of analogue outputs (EF001995) | - | |
| Degree of protection (NEMA) (EF011959) | - | |
| Rated control supply voltage Us at AC 60HZ (EF003979) | - | V |
| Number of binary inputs (EF003817) | - | |
| Rated control supply voltage Us at AC 50HZ (EF003978) | - | V |
| Input for thermistor connection (EF007116) | - | |
| Model (EF000010) | Other | |
| Switching function (EF000189) | Mono stable | |
| Number of outputs, with contact (EF006936) | 2 | |
| Number of electronic outputs (EF006929) | 0 | |
| Input for earth fault detection (EF007115) | true | |
| Type of electrical connection for auxiliary- and control current circuit (EF006979) | Screw connection | |
| Degree of protection (IP) (EF005474) | IP20 |
| Title: | Size: | Type: |
|---|---|---|
| PDF CATALOGUE SIEMENS EN.pdf | 120 Mbytes |
|
| PDF CATALOGUE SIEMENS EN.pdf | 104 Mbytes |
|
| 3UF7600-1AB01-0 3UF7600-1AB01-0 EN_3UF7600-1AB01-0.pdf | 447 Kbytes |
![]() |
No customer reviews for the moment.
| Rating: |
|
| Name: | |
| Email: | |
| Subject: | |
| Text: | |
| Do you recommend this product to buy? | |
|
|
|
| Add review | |
All ratings we receive from the items we offer are real and verified. A small gesture, but a lot of value. That's why we thank you for that minute you invest in leaving us your opinion and qualification about the products, because it helps us to continue improving and to offer you a service of even higher quality.
