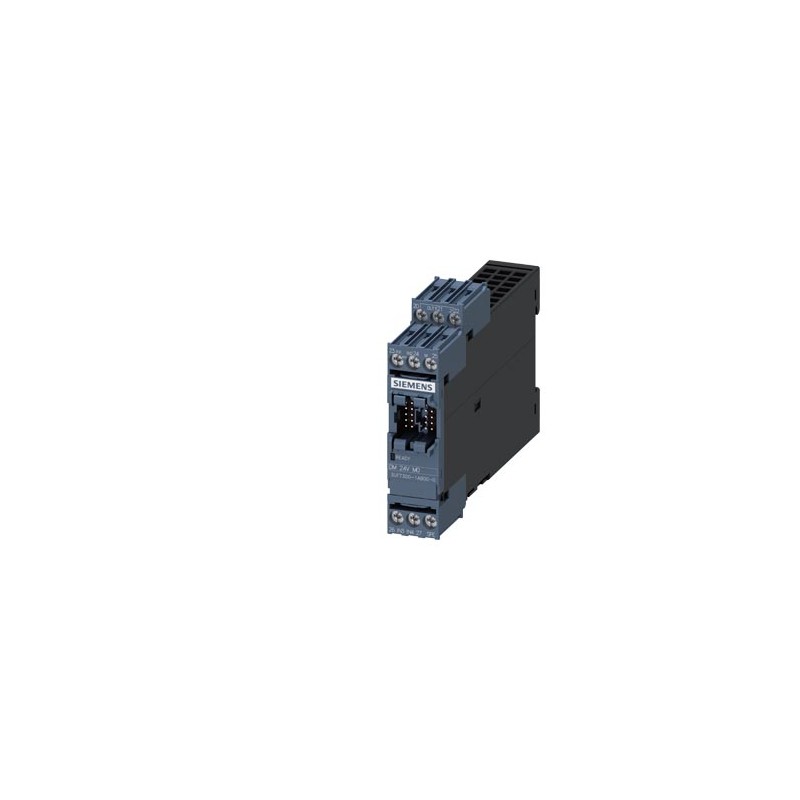

3UF7300-1AB00-0 SIEMENS Digital module, 4 inputs and 2 relay outputs, input voltage 24 V DC, relay outputs m..

3UF7300-1AB00-0

SIEMENS

Digital module, 4 inputs and 2 relay outputs, input voltage 24 V DC, relay outputs monostable, max. 2 digital modules, for SIMOCODE pro V basic unit

SIRIUS Simocode, digital module 4 inputs and 2 outputs voltage input DC 24V monostable outputs Max. 2 digital modules per base unit 2

More details


Low-voltage industrial components > Extension module for motor management device

CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $401.42
Unit price: $401.42
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Digital module, 4 inputs and 2 relay outputs, input voltage 24 V DC, relay outputs monostable, max. 2 digital modules, for SIMOCODE pro V basic unit
product brand nameSIRIUS
product designationdigital modules
General technical data
product component
● input for thermistor connectionNo
● digital inputYes
● input for analog temperature sensorsNo
● input for ground fault detectionNo
● relay outputYes
consumed active power0.7 W
insulation voltage with degree of pollution 3 at AC rated value300 V
surge voltage resistance rated value4 000 V
protection class IPIP20
shock resistance according to IEC 60068-2-2715g / 11 ms
vibration resistance according to IEC 60068-2-61 ... 6 Hz: 15 mm, 6 ... 500 Hz: 2g
switching capacity current of the NO contacts of the relay outputs at AC-15
● at 24 V6 A
● at 120 V6 A
● at 230 V3 A
switching capacity current of the NO contacts of the relay outputs at DC-13
● at 24 V2 A
● at 60 V0.55 A
● at 125 V0.25 A
mechanical service life (switching cycles) typical10 000 000
electrical endurance (switching cycles) typical100 000
reference code according to IEC 81346-2K
continuous current of the NO contacts of the relay outputs
● at 50 °C6 A
● at 60 °C5 A
Substance Prohibitance (Date)05/01/2012
certificate of suitability according to ATEX directive 2014/34/EUBVS 06 ATEX F001
explosion device group and category according to ATEX directive 2014/34/EUII (2) G, II (2 ) D, I (M2)
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1class A
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
conducted interference
● due to burst according to IEC 61000-4-41 kV
● due to conductor-earth surge according to IEC 61000-4-52 kV
● due to conductor-conductor surge according to IEC 61000-4-51 kV
● due to high-frequency radiation according to IEC 61000-4-610 V
field-based interference according to IEC 61000-4-310 V/m
electrostatic discharge according to IEC 61000-4-26 kV contact discharge / 8 kV air discharge
conducted HF interference emissions according to CISPR11corresponds to degree of severity A
field-bound HF interference emission according to CISPR11corresponds to degree of severity A
Inputs/ Outputs
product function
● parameterizable inputsYes
● parameterizable outputsYes
number of inputs4
number of digital inputs4
● with a common reference potential4
digital input version
● type 1 acc. to IEC 61131No
● type 2 acc. to IEC 61131Yes
number of analog inputs0
input voltage at digital input at DC rated value24 V
number of outputs2
number of semiconductor outputs0
number of outputs as contact-affected switching element2
number of analog outputs0
switching behaviormonostable
property of contacts of the relay outputsFloating NO contacts (NC reaction parameterizable via internal signal conditioning), connected to common ground, can be freely assigned to the control functions (e.g. line, star (wye), delta contactor or signaling of the operating state)
wire length for digital signals maximum300 m
Installation/ mounting/ dimensions
mounting positionany
fastening methodscrew and snap-on mounting
height92 mm
width22.5 mm
depth124 mm
required spacing
● top40 mm
● bottom40 mm
● left0 mm
● right0 mm
Connections/ Terminals
product component removable terminal for auxiliary and control circuitYes
type of connectable conductor cross-sections
● solid1x (0.5 ... 4.0 mm²), 2x (0.5 ... 2.5 mm²)
● finely stranded with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)
● at AWG cables solid1x (20 ... 14), 2x (20 ... 16)
● at AWG cables stranded1x (20 ... 12), 2x (20 ... 14)
tightening torque with screw-type terminals0.8 ... 1.2 N·m
tightening torque [lbf·in] with screw-type terminals7 ... 10.3 lbf·in
Ambient conditions
installation altitude at height above sea level
● 1 maximum2 000 m
● 2 maximum3 000 m; max. +50 °C (no protective separation)
● 3 maximum4 000 m; max. +40 °C (no protective separation)
ambient temperature
● during operation-25 ... +60 °C
● during storage-40 ... +80 °C
● during transport-40 ... +80 °C
environmental category
● during operation according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
● during storage according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
● during transport according to IEC 607213K6 (no formation of ice, no condensation), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
relative humidity during operation5 ... 95 %
contact rating of auxiliary contacts according to ULB300 / R300
Short-circuit protection
design of short-circuit protection per outputFuse links: gG 6 A, quick-response 10 A (IEC 60947-5-1), miniature circuit-breaker C char.: 1.6 A (IEC 60947-5-1) or 6 A (I_K < 500 A)
Safety related data
touch protection against electrical shockfinger-safe
Galvanic isolation
(electrically) protective separation according to IEC 60947-1All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information)
Control circuit/ Control
type of voltage of the control supply voltageDC
control supply voltage at DC
● rated value24 V
operating range factor control supply voltage rated value at DC
● initial value0.8
● full-scale value1.2
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMC

CSA

CCC

Confirmation

UL

EAC

RCM

For use in hazardous locationsDeclaration of ConformityTest CertificatesMarine / Shipping

IECEx

ATEX-EC-Type-Examination-Certificate

EC/EU-Declaration of Conformity

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

RMRS / Russian Maritime Register

Marine / Shippingother

DNV-GL

Confirmation

PROFIBUS-Certification

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Test report No. A0258, protective separation
last modified:4/7/2022
Date
5/4/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3UF7300-1AB00-0
Product DescriptionDigital module, 4 inputs and 2 relay outputs, input voltage 24 V DC, relay outputs monostable, max. 2 digital modules, for SIMOCODE pro V basic unit
Product familySIMOCODE pro 3UF7 motor management and control devices
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42J / 42J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works1 Day/Days
Net Weight (kg)0,155 Kg
Packaging Dimension28,00 x 108,50 x 147,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209606197
UPC754554901718
Commodity Code85371098
LKZ_FDB/ CatalogIDCC-IC10
Product Group5836
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.05.2012
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-08-05
eClass7.127-37-08-05
eClass827-37-08-05
eClass927-37-08-05
eClass9.127-37-08-05
ETIM5EC002613
ETIM6EC002613
ETIM7EC002613
ETIM8EC002613
IDEA44776
UNSPSC1432-15-17-05
UNSPSC1539-12-15-52

ETIM data

ETIM: EC002613 - Extension module for motor management device

Value Unit
Degree of protection (NEMA) (EF011959) -
Model (EF000010) Digital module
Switching function (EF000189) Mono stable
Rated control supply voltage Us at DC (EF003980) ['24', '24']V
Voltage type for actuating (EF008242) DC
Number of analogue inputs (EF001994) 0
Number of analogue outputs (EF001995) 0
Number of outputs, with contact (EF006936) 2
Number of electronic outputs (EF006929) 0
Number of binary inputs (EF003817) 4
Input for thermistor connection (EF007116) false
Input for earth fault detection (EF007115) false
Input for analogue temperature sensor (EF007114) false
Type of electrical connection for auxiliary- and control current circuit (EF006979) Screw connection
Degree of protection (IP) (EF005474) IP20
Rated control supply voltage Us at AC 50HZ (EF003978) -V
Rated control supply voltage Us at AC 60HZ (EF003979) -V
