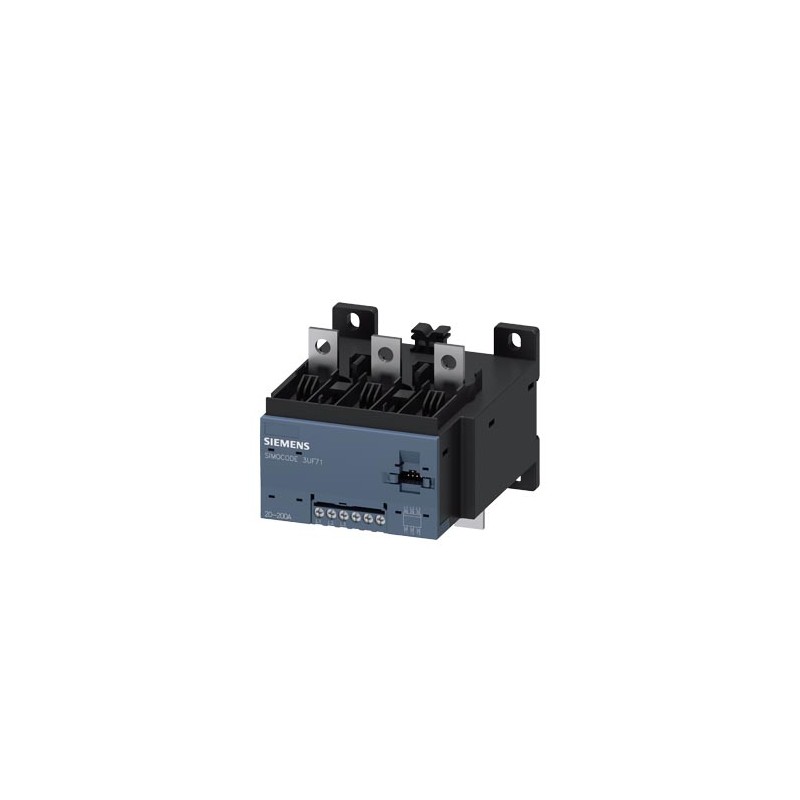

3UF7113-1BA01-0 SIEMENS Current/voltage measuring module V2 Set current 20...200 A, Voltage measurement up t.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

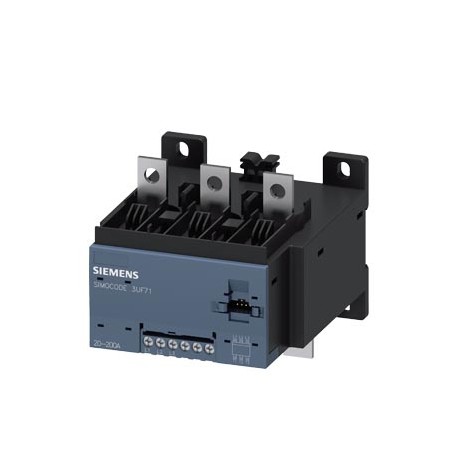

3UF7113-1BA01-0 SIEMENS Current/voltage measuring module V2 Set current 20...200 A, Voltage measurement up t..

3UF7113-1BA01-0

SIEMENS

Current/voltage measuring module V2; Set current 20...200 A, Voltage measurement up to 690 V, Overall width 120 mm, Busbar connection basic unit required pro V PB, pro V MR, pro V PN or pro V EIP

More details


Low-voltage industrial components > Motor management device

CONTROL AND CONTACTORS > AS-Interface switchgear, SIMOCODE

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

Total: $725.81
Unit price: $725.81
This price is per unit and is the net value (not including taxes if applicable).

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


Technical data

Current/voltage measuring module V2; Set current 20...200 A, Voltage measurement up to 690 V, Overall width 120 mm, Busbar connection basic unit required pro V PB, pro V MR, pro V PN or pro V EIP
product brand nameSIRIUS
product designationCurrent/voltage measuring module
General technical data
product function
● current measurementYes
● voltage measurementYes
● active power measurementYes
● power measurementYes
● frequency measurementYes
measuring procedure for current measurementTRMS
current measuring range extension with external current transformersNo
measuring procedure for voltage measurementTRMS
measurable supply voltage between the line conductors at AC maximum rated value690 V
line conductors and neutral conductors internal resistance for voltage measurement1 MΩ; RC-based voltage divider
product component
● input for thermistor connectionNo
consumed active power0.5 W
insulation voltage
● with degree of pollution 3 at AC rated value690 V
● for wires of main circuit according to IEC 60947-1 rated value6 kV
surge voltage resistance rated value6 000 V
protection class IPIP00
shock resistance according to IEC 60068-2-2715g / 11 ms; with basic unit snapped on
vibration resistance1-6 Hz / 15 mm; 6-500 Hz / 2 g; with basic unit snapped on: 1g
reference code according to IEC 81346-2F
Substance Prohibitance (Date)05/28/2009
certificate of suitability
● according to ATEX directive 2014/34/EUBVS 06 ATEX F001
explosion device group and category according to ATEX directive 2014/34/EUII (2) G, II (2 ) D, I (M2)
Electromagnetic compatibility
EMC emitted interference according to IEC 60947-1class A
EMC immunity according to IEC 60947-1corresponds to degree of severity 3
conducted interference
● due to burst according to IEC 61000-4-42 kV
● due to conductor-earth surge according to IEC 61000-4-52 kV
● due to conductor-conductor surge according to IEC 61000-4-51 kV
field-based interference according to IEC 61000-4-310 V/m
Inputs/ Outputs
number of outputs as contact-affected switching element0
Protective and monitoring functions
product function
● power factor monitoringYes
● ground-fault monitoringYes
● voltage detectionYes
product function
● current detectionYes
● overload protectionYes
Precision
measuring precision
● of frequency measurement+/- 1,5 %, 15 A ... 1600 A, 0,85 x 110 V ... 1,1 x 690 V (line-to-line voltages), cos phi (0.5...1), 50/60 Hz, 25 °C
● for current measurement 1+/- 1.5 %, in range 15 A ... 400 A, in range 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), 50/60 Hz, 25 °C
● for current measurement 2+/- 5%, in range 400 A ... 1600 A, in range 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), 50/60 Hz, 25 °C
● for voltage measurement 1+/- 1.5 %, in range 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), 50/60 Hz, 25 °C
● at cos phi-measurement 1+/- 1.5 %, 15 A ... 400 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos phi (0.5...1), 50/60 Hz, 25 °C
● at cos phi-measurement 2+/- 5%, 400 A ... 1600 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C
● at active power measurement 1+/- 5%, 15 A ... 400 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C
● at active power measurement 2+/- 10%, 400 A ... 1600 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C
● at energy measurement 1+/- 5 %, 47 ... 1260 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos phi (0.5...1), 50/60 Hz, 25 °C
● at energy measurement 2+/- 10%, 400 A ... 1600 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C
● at apparent power measurement 1+/- 3%, 15 A ... 400 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos-phi (0.5...1), 50/60 Hz, 25 °C
● at apparent power measurement 2+/- 5 %, 400 A ... 1600 A, 0.85 x 110 V ... 1.1 x 690 V (line-to-line voltages), cos phi (0.5...1), 50/60 Hz, 25 °C
accuracy of ground-fault monitoringIn the range 30 % .. 120 %/Is: +/- 10 % (Class CI-A), in range 15 % .. 30 % Ie: +/- 25 % (Class CI-B), both values acc. to IEC 60947-1 Annex T
temperature drift per °C0.01 %/°C; Reference temperature: 25°C
measured variable frequency45 ... 65 Hz
Installation/ mounting/ dimensions
mounting positionany
fastening methoddirect mounting / stand-alone installation
height119 mm
width120 mm
depth145 mm
required spacing
● top30 mm
● bottom30 mm
● left0 mm
● right0 mm
Connections/ Terminals
type of electrical connection at the measurement inputs for voltagescrew-type terminals
type of connectable conductor cross-sections at the measurement inputs for voltage
● finely stranded with core end processing1x (0.5 ... 2.5 mm²), 2x (0.5 ... 1.5 mm²)
● solid1x (0.5 ... 4 mm²), 2x (0.5 ... 2.5 mm²)
● at AWG cables solid1x (20 ... 12), 2x (20 ... 14)
● at AWG cables stranded1x (20 ... 14), 2x (20 ... 16)
tightening torque at the measurement inputs for voltage0.8 ... 1.2 N·m
tightening torque [lbf·in] at the measurement inputs for voltage7 ... 10.3 lbf·in
type of connectable conductor cross-sections at the measurement inputs for current
● solid with core end processing16 mm² ... 95 mm²
● stranded with core end processing25 mm² ... 120 mm²
● at AWG cables4/0 kcmil ... 250 kcmil
design of the thread of the connection screw at the measurement inputs for currentM8 x 25
Ambient conditions
installation altitude at height above sea level
● 1 maximum2 000 m
● 2 maximum3 000 m; max. +50 °C (no protective separation)
● 3 maximum4 000 m; max. +40 °C (no protective separation)
ambient temperature
● during operation-25 ... +60 °C
● during storage-40 ... +80 °C
● during transport-40 ... +80 °C
environmental category
● during operation according to IEC 607213K6 (no formation of ice, no condensation, relative humidity 10 ... 95%), 3C3 (no salt mist), 3S2 (sand must not get into the devices), 3M6
● during storage according to IEC 607211K6 (no condensation, relative humidity 10 ... 95%), 1C2 (no salt mist), 1S2 (sand must not get into the devices), 1M4
● during transport according to IEC 607212K2, 2C1, 2S1, 2M2
relative humidity during operation10 ... 95 %
Short-circuit protection
product function short circuit protectionNo
Galvanic isolation
(electrically) protective separation according to IEC 60947-1All circuits with protective separation (double creepage paths and clearances), the information in the "Protective Separation" test report, No. A0258, must be observed (link see further information)
Main circuit
number of poles for main current circuit3
adjustable current response value current of the current-dependent overload release20 ... 200 A
operating voltage
● at AC
— at 50 Hz rated value110 ... 690 V
— at 60 Hz rated value110 ... 690 V
operating frequency rated value50 ... 60 Hz
Control circuit/ Control
type of voltageAC
inrush current maximum2 000 A; 10 x Io
Certificates/ approvals

Downloads and manuals

General Product ApprovalEMC

CSA

Confirmation

CCC

UL

EAC

RCM

For use in hazardous locationsDeclaration of ConformityTest Certificates

IECEx

ATEX-EC-Type-Examination-Certificate

IECEx

ATEX-EC-Type-Examination-Certificate

EC/EU-Declaration of Conformity

Type Test Certificates/Test Report

Test CertificatesMarine / Shipping

Special Test Certificate

Special Test Certificate

ABS (American Bureau of Shipping)

LR (Lloyds Register)

RMRS / Russian Maritime Register

DNV-GL

other

Confirmation

PROFINET-Certification

PROFIBUS-Certification

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Test report No. A0258, protective separation
last modified:4/7/2022
Date
5/14/2022		Subject to change without notice
© Copyright Siemens 2022


Additional data

Product
Article Number (Market Facing Number)3UF7113-1BA01-0
Product DescriptionCurrent/voltage measuring module V2; Set current 20...200 A, Voltage measurement up to 690 V, Overall width 120 mm, Busbar connection basic unit required pro V PB, pro V MR, pro V PN or pro V EIP
Product familySIMOCODE pro 3UF7 motor management and control devices
Product Lifecycle (PLM)PM300:Active Product
Price data
Region Specific PriceGroup / Headquarter Price Group42J / 42J
Surcharge for Raw MaterialsNone
Metal FactorL-P-----
Delivery information
Export Control RegulationsAL : N / ECCN : EAR99
Standard lead time ex-works1 Day/Days
Net Weight (kg)1,123 Kg
Packaging Dimension146,00 x 137,00 x 177,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4047621025735
UPC804766420719
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group5836
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 28.05.2009
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead monoxide (lead oxide)

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Information obligation imposed by Article 33, REACH Regulation: This product includes one or several articles in which the following substance of the candidate list is contained in concentrations higher than 0,1% weight by weight (w/w):

Lead

Based on the information currently available, we assume that these substances do not pose any risk if the articles are used as intended (including disposal). Please also refer to product documentation.

Classifications
VersionClassification
eClass627-37-08-04
eClass7.127-37-08-04
eClass827-37-08-04
eClass927-37-08-04
eClass9.127-37-08-04
ETIM5EC002572
ETIM6EC002572
ETIM7EC002572
ETIM8EC002572
IDEA44776
UNSPSC1539-12-15-52

ETIM data

ETIM: EC002572 - Motor management device

Value Unit
Input for analogue temperature sensor (EF007114) -
Number of electronic outputs (EF006929) -
Rated control supply voltage Us at DC (EF003980) -V
Input for earth fault detection (EF007115) -
Number of analogue inputs (EF001994) -
Rated voltage Ue at DC (EF007031) -V
Number of binary inputs (EF003817) -
Number of analogue outputs (EF001995) -
Degree of protection (NEMA) (EF011959) -
Type of interface (EF006977) -
Switching function (EF000189) -
Rated operation current Ie (EF006781) -A
Rated control supply voltage Us at AC 60HZ (EF003979) -V
Rated control supply voltage Us at AC 50HZ (EF003978) -V
Rated voltage Ue at AC 50 Hz (EF007029) ['110', '690']V
Rated voltage Ue at AC 60 Hz (EF007030) ['110', '690']V
Rated operation frequency (EF007024) ['50.0', '60.0']Hz
Current detection module (EF007501) true
Voltage detection module (EF007492) true
Type of connection system (EF008220) Rail connection
Voltage type for actuating (EF008242) AC
Number of outputs, with contact (EF006936) 0
Input for thermistor connection (EF007116) false
Type of electrical connection for auxiliary- and control current circuit (EF006979) Screw connection
Degree of protection (IP) (EF005474) IP00
