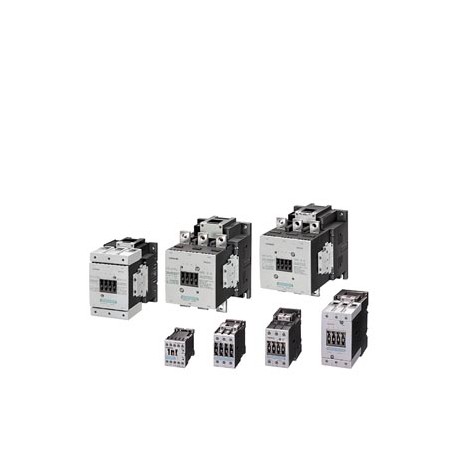

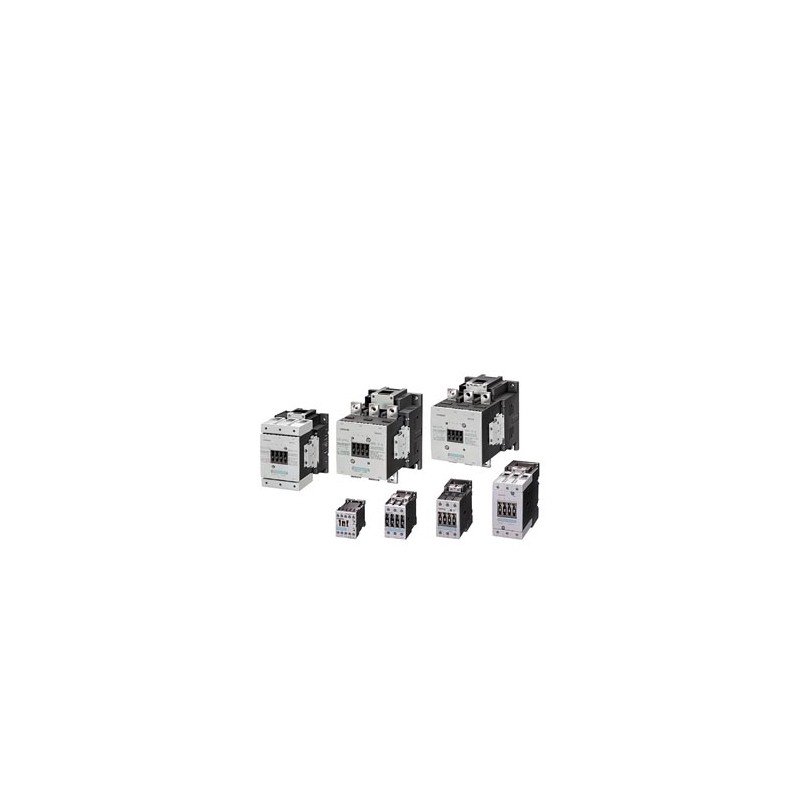

3TX4010-2A SIEMENS Auxiliary switch block, without switch position indicator for attaching on contactors 1 NO View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3TX4010-2A SIEMENS Auxiliary switch block, without switch position indicator for attaching on contactors 1 NO

3TX4010-2A

SIEMENS

Auxiliary switch block, without switch position indicator for attaching on contactors 1 NO

More details


Low-voltage industrial components > Auxiliary contact block

CONTROL AND CONTACTORS > Function relays

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


ETIM: EC000041 - Auxiliary contact block

Value Unit
Model (EF000010) -
Number of contacts as change-over contact (EF008257) 0
Number of contacts as normally open contact (EF008256) 1
Number of contacts as normally closed contact (EF008255) 0
Number of fault-signal switches (EF007613) 0
Rated operation current Ie at AC-15, 230 V (EF001385) 5.6A
Type of electric connection (EF003961) Other
Mounting method (EF000003) Other
Lamp holder (EF000048) None


Auxiliary switch block, without switch position indicator for attaching on contactors 1 NO
General technical data
Suitability for useContactor relay and power contactor
Protection class IP on the frontIP20
Ambient temperature
● during storage-55 ... +80 °C
● during operation-25 ... +55 °C
Mechanical service life (switching cycles) typical10 000 000
Insulation voltage with degree of pollution 3 at AC rated value690 V
Surge voltage resistance rated value6 kV
Auxiliary circuit
Number of NC contacts for auxiliary contacts
● instantaneous contact0
● lagging switching0
Number of NO contacts for auxiliary contacts
● instantaneous contact1
● leading contact0
Operating current of auxiliary contacts at AC-12
● at 24 V10 A
● at 230 V10 A
● maximum10 A
Operating current
● of auxiliary contacts
— at AC-14
— at 125 V10 A
— at AC-15
— at 24 V10 A
— at 230 V5.6 A
— at 400 V3.6 A
● at AC-15 at 690 V rated value2.3 A
Operating current
● of auxiliary contacts at DC-12
— at 24 V10 A
— at 110 V5.5 A
— at 220 V1.2 A
Operating current
● of auxiliary contacts at DC-13
— at 24 V10 A
— at 60 V5 A
— at 110 V1.14 A
— at 220 V0.48 A
Installation/ mounting/ dimensions
Mounting typesnap-on mounting
Width12 mm
Height70 mm
Depth51.5 mm
Connections/ Terminals
Type of connectable conductor cross-sections
● for auxiliary contacts
— finely stranded
— with core end processing2x (0.5 ... 1.0 mm²), 2x (0.75 ... 2.5 mm²)
● at AWG conductors for auxiliary contacts2x (18 ... 12)
Safety related data
Product function positively driven operation acc. to IEC 60947-5-1Yes
Certificates/ approvals
General Product ApprovalTest Certificates

CCC

CSA

UL

EAC

Declaration of the Compliance with the order

Miscellaneous

Shipping Approvalother

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:08/19/2020


Product
Article Number (Market Facing Number)3TX4010-2A
Product DescriptionAuxiliary switch block, without switch position indicator for attaching on contactors 1 NO
Product familyNot available
Product Lifecycle (PLM)PM490:Start of final year of support
PLM Effective DateProduct discontinued since: 07.11.2019
Notes
Product was deleted without replacement
If you need assistance please contact our local Siemens office
Price data
Price Group41B
Surcharge for Raw MaterialsNone
Metal FactorLDP-----
Delivery information
Export Control RegulationsECCN : N / AL : N
Standard lead time ex-works1 Day/Days
Net Weight (kg)0,040 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension46,00 x 106,00 x 50,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209053847
UPC754554202723
Commodity Code85365080
LKZ_FDB/ CatalogIDNSE
Product Group5804
Group CodeR711
Country of originTurkey
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
Not available

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3TX4010-2A 3TX4010-2A EN_3TX4010-2A.pdf 136 Kbytes 3TX4010-2A 3TX4010-2A EN_3TX4010-2A.pdf
