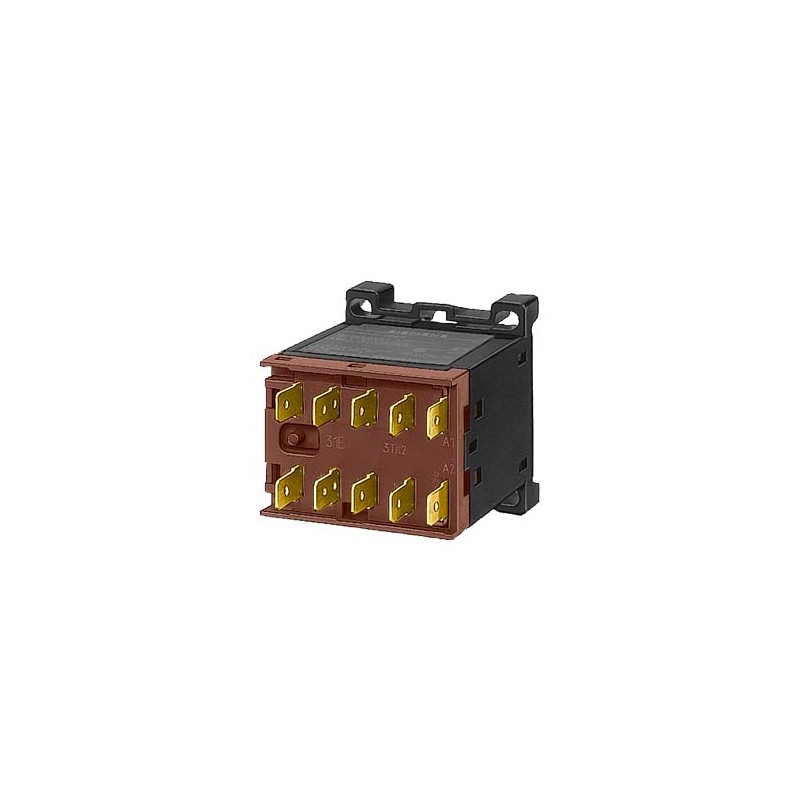

3TK2022-3BF4 SIEMENS Miniature contactor, Flat connector terminal 2 NO + 2 NC Snap-on mounting standard moun.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

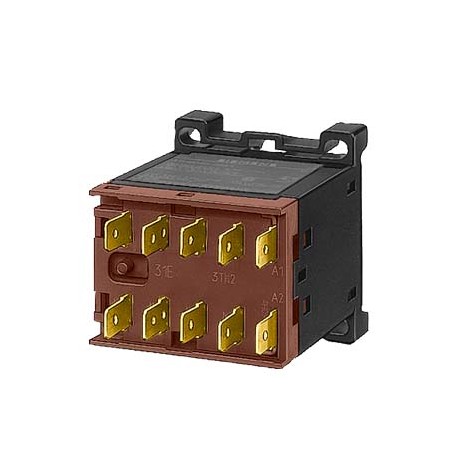

3TK2022-3BF4 SIEMENS Miniature contactor, Flat connector terminal 2 NO + 2 NC Snap-on mounting standard moun..

3TK2022-3BF4

SIEMENS

Miniature contactor, Flat connector terminal 2 NO + 2 NC Snap-on mounting standard mounting rail 110 V DC DC operation !!! Phased-out product !!! Successor is SIRIUS 3RT23/25

More details


Low-voltage industrial components > Power contactor, AC switching

CONTROL AND CONTACTORS > Contactors for switching motors

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


ETIM: EC000066 - Power contactor, AC switching

Value Unit
Rated operation power NEMA (EF011960) -kW
Rated operation current Ie at AC-1, 400 V (EF001393) -A
Rated control supply voltage Us at DC (EF003980) ['-', '110']V
Voltage type for actuating (EF008242) DC
Rated operation current Ie at AC-3, 400 V (EF001392) 9A
Rated operation power at AC-3, 400 V (EF001364) 4.0kW
Rated operation current Ie at AC-4, 400 V (EF008495) -A
Modular version (EF001126) true
Number of auxiliary contacts as normally open contact (EF001376) 0
Number of auxiliary contacts as normally closed contact (EF001377) 0
Type of electrical connection of main circuit (EF006819) Flat plug-in connection
Number of normally closed contacts as main contact (EF001375) 2
Number of main contacts as normally open contact (EF001374) 2
Rated operation power at AC-4, 400 V (EF008496) -kW
Rated control supply voltage Us at AC 50HZ (EF003978) -V
Rated control supply voltage Us at AC 60HZ (EF003979) -V


Miniature contactor, Flat connector terminal 2 NO + 2 NC Snap-on mounting standard mounting rail 110 V DC DC operation !!! Phased-out product !!! Successor is SIRIUS 3RT23/25
product designationMiniature contactor
product type designation3TK20
Size of contactor0
protection class IP on the frontIP00
reference code acc. to DIN EN 81346-2Q
● ambient temperature during operation-25 ... +55 °C
number of poles for main current circuit4
Number of NO contacts for main contacts2
Number of NC contacts for main contacts2
● Operating current at AC-1 at 400 V
— at ambient temperature 40 °C rated value16 A
● operating current at AC-3 at 400 V rated value9 A
● Operating power at AC-1 at 400 V rated value10 kW
● operating power at AC-3 at 400 V rated value4 kW
Type of voltage of the control supply voltageDC
control supply voltage at DC
● rated value110 V
Control version of the switch operating mechanismconventional
● number of NC contacts for auxiliary contacts0
● Number of NC contacts for auxiliary contacts instantaneous contact0
● Number of NC contacts for auxiliary contacts lagging switching0
Number of NO contacts for auxiliary contacts
● instantaneous contact0
● leading contact0
mounting typescrew and snap-on mounting onto 35 mm standard mounting rail according to DIN EN 50022
● side-by-side mountingYes
height48 mm
width45 mm
depth64.5 mm
type of electrical connection
● for main current circuittab terminals 6,3 mm
● for auxiliary and control current circuittab terminals 6.3 mm
Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
Characteristic: Tripping characteristics, I²t, Let-through current
Further characteristics (e.g. electrical endurance, switching frequency)
last modified:08/25/2020


Product
Article Number (Market Facing Number)3TK2022-3BF4
Product DescriptionMiniature contactor, Flat connector terminal 2 NO + 2 NC Snap-on mounting standard mounting rail 110 V DC DC operation !!! Phased-out product !!! Successor is SIRIUS 3RT23/25
Product familyNot available
Product Lifecycle (PLM)PM490:Start of final year of support
PLM Effective DateProduct discontinued since: 01.10.2019
Notes
Product was deleted without replacement
If you need assistance please contact our local Siemens office
Price data
Price Group41B
Surcharge for Raw MaterialsNone
Metal FactorL-P-----
Delivery information
Export Control RegulationsECCN : N / AL : N
Standard lead time ex-worksOn request
Net Weight (kg)0,182 Kg
Product Dimensions (W x L x H)Not available
Packaging DimensionNot available
Package size unit of measureNot available
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EANNot available
UPCNot available
Commodity Code85364900
LKZ_FDB/ CatalogIDCC-IC10
Product Group5809
Group CodeR711
Country of originGermany
Compliance with the substance restrictions according to RoHS directiveSince: 01.07.2006
Product classC: products manufactured / produced to order, which cannot be reused or re-utilised or be returned against credit.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
