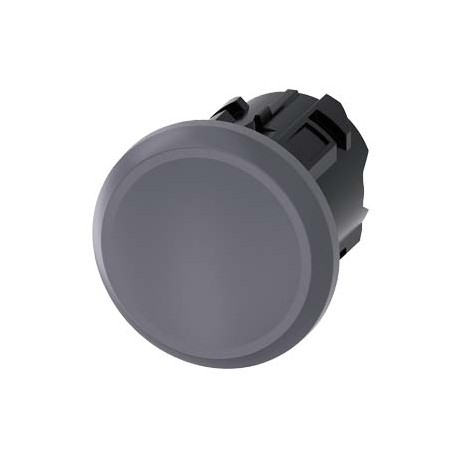

3SU1930-0FA80-0AA0 SIEMENS Sealing plug for unused control points, 22 mm, Metal matt, sand gray (front), pla.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details.

3SU1930-0FA80-0AA0 SIEMENS Sealing plug for unused control points, 22 mm, Metal matt, sand gray (front), pla..

3SU1930-0FA80-0AA0

SIEMENS

5

Sealing plug for unused control points, 22 mm, Metal matt, sand gray (front), plastic, black (rear)

More details


Low-voltage industrial components > Accessories/spare parts for command devices

CONTROL AND CONTACTORS > Commanding and signaling devices

Brand new product in its original packaging covered by the warranties and certifications provided by SIEMENS

* This article may be obsolete. Ask for a quotation and we will check if there are any units available. If not, one of our technicians will look for an alternative solution.

If our price is not the best, please ask us for a quote. Ask for a quotation

Best sellers

▲

More info

▲


ETIM: EC002024 - Accessories/spare parts for command devices

Value Unit
Type of mechanical accessory/spare part (EF005994) -
Type of electrical accessory/spare part (EF005722) -


Sealing plug for unused control points, 22 mm, Metal matt, sand gray (front), plastic, black (rear)
Product brand nameSIRIUS ACT
Product designationSealing plug
Product type designation3SU1
Actuator
Shape of the actuating elementround
Outer diameter of the actuating element29.5 mm
General technical data
Protection class IPIP66, IP67, IP69(IP69K)
Degree of protection NEMA rating1, 2, 3, 3R, 4, 4X, 12
Reference code acc. to DIN EN 81346-2S
Reference code acc. to DIN EN 61346-2S
Ambient conditions
Ambient temperature
● during operation-25 ... +70 °C
● during storage-40 ... +80 °C
Environmental category during operation acc. to IEC 607213M6, 3S2, 3B2, 3C3, 3K6 (with relative air humidity of 10 ... 95 %)
Installation/ mounting/ dimensions
Shape of the installation openinground
Mounting diameter22.3 mm
Positive tolerance of installation diameter0.4 mm
Mounting height6.5 mm
Installation width29.5 mm
Installation depth24.2 mm
Accessories
Material of accessoryMetal
Color of accessorysand gray
Certificates/ approvals
General Product ApprovalDeclaration of ConformityTest CertificatesMarine / Shipping

EAC

EC/EU-Declaration of Conformity

Miscellaneous

Special Test Certificate

Type Test Certificates/Test Report

ABS (American Bureau of Shipping)

Marine / Shippingother

LR (Lloyds Register)

PRS / Polski Rejestr Statkow

RINA / Registro Italiano Navale

RMRS / Russian Maritime Register

Confirmation

Further information
Information- and Downloadcenter (Catalogs, Brochures,…)
Industry Mall (Online ordering system)
Cax online generator
Service&Support (Manuals, Certificates, Characteristics, FAQs,...)
Image database (product images, 2D dimension drawings, 3D models, device circuit diagrams, EPLAN macros, ...)
last modified:08/19/2020


Product
Article Number (Market Facing Number)3SU1930-0FA80-0AA0
Product DescriptionSealing plug for unused control points, 22 mm, Metal matt, sand gray (front), plastic, black (rear)
Product familyActuators
Product Lifecycle (PLM)PM300:Active Product
Price data
Price Group41J
Surcharge for Raw MaterialsNone
Metal FactorNone
Delivery information
Export Control RegulationsAL : N / ECCN : N
Standard lead time ex-works1 Day/Days
Net Weight (kg)0,041 Kg
Product Dimensions (W x L x H)Not available
Packaging Dimension30,00 x 30,00 x 30,00
Package size unit of measureMM
Quantity Unit1 Piece
Packaging Quantity1
Additional Product Information
EAN4011209967182
UPC804766079986
Commodity Code85389099
LKZ_FDB/ CatalogIDCC-IC10
Product Group5452
Group CodeR711
Country of originChina
Compliance with the substance restrictions according to RoHS directiveSince: 01.10.2014
Product classA: Standard product which is a stock item could be returned within the returns guidelines/period.
WEEE (2012/19/EU) Take-Back ObligationYes
REACH Art. 33 Duty to inform according to the current list of candidates
There is currently no information on SVHC (Substances of Very High Concern http://echa.europa.eu/web/guest/candidate-list-table) from the supply chain and our established procedures for screening our products for Substances of Very High Concern.We compare our products regularly with the information of the upstream users with regard to the substances indicated in the candidate list in accordance with the requirements of the REACH regulation. As soon as we have new findings, our information will be updated accordingly.
Classifications
VersionClassification
eClass627-37-92-13
eClass7.127-37-92-13
eClass827-37-92-13
eClass927-37-92-13
eClass9.127-37-92-13
ETIM4EC002024
ETIM5EC002024
ETIM6EC002024
ETIM7EC002024
IDEA45219
UNSPSC1539-12-22-21

Datasheet - PDF

▲
Title: Size: Type:
PDF CATALOGUE SIEMENS EN.pdf 120 Mbytes
PDF CATALOGUE SIEMENS EN.pdf 104 Mbytes
3SU1930-0FA80-0AA0 3SU1930-0FA80-0AA0 EN_3SU1930-0FA80-0AA0.pdf 180 Kbytes 3SU1930-0FA80-0AA0 3SU1930-0FA80-0AA0 EN_3SU1930-0FA80-0AA0.pdf
